Description

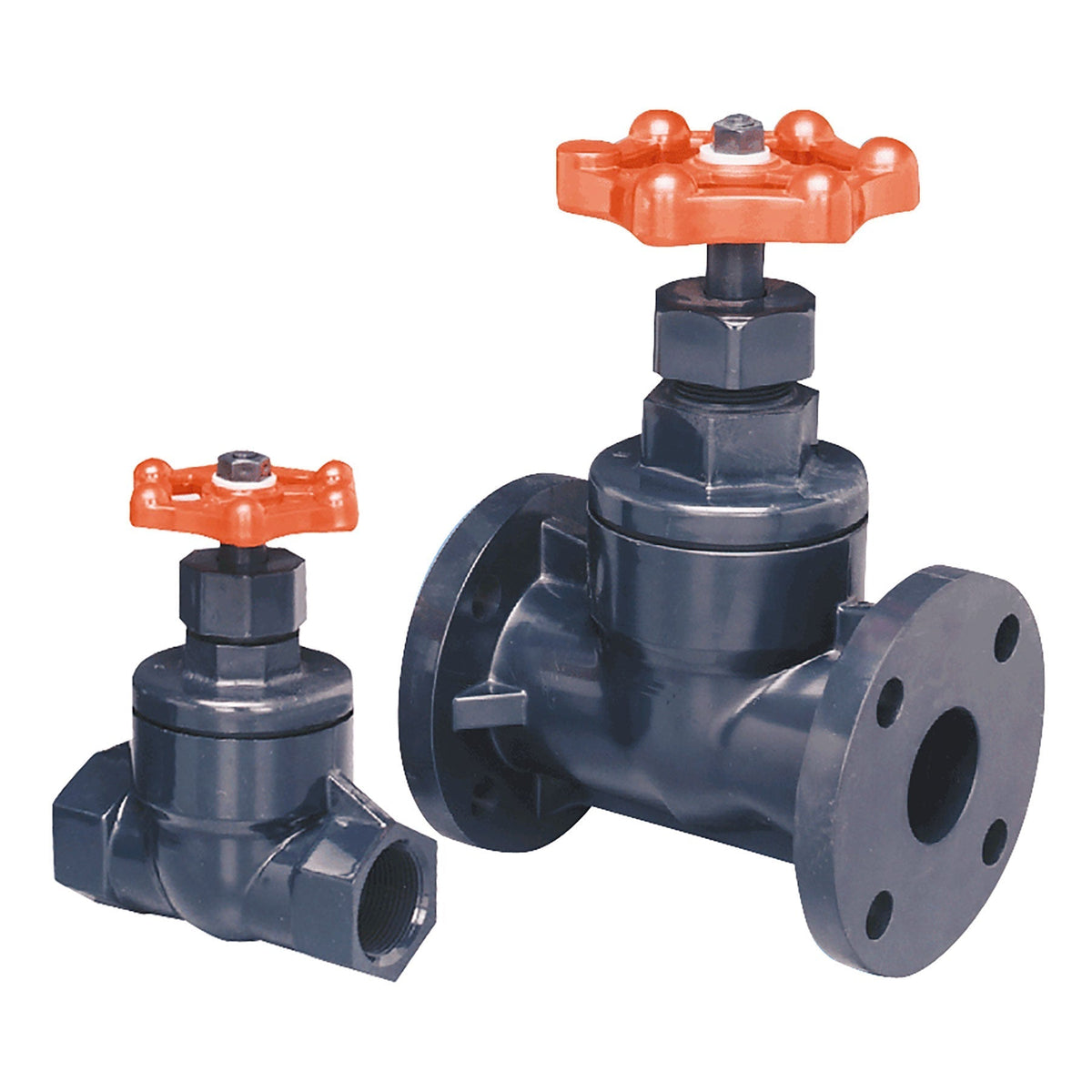

Globe Valves
The flow through a globe valve follows a course that takes nearly two 90 degrees changes in direction. But, because the seating of a globe valve is parallel to the line of flow of the liquid, it can be used to throttle the flow to any required degree or to give positive shut-offs. The economy and dependability of the Asahi/America globe valve make it desirable for many applications where this pressure drop is not critical.
Ideal Applications Include:
Chemical processing, aquariums, mining, water treatment, landfills
Features & Benefits:
- Used for efficient throttling of flow
- Positive shut-off
- Displays excellent flow regulating characteristics throughout the entire lift of the disc
- All sizes rated for full vacuum service
- EPDM seals. FKM optional
Asahi Part Numbers: 1260005, 1260007, 1260010, 1260012, 1260015, 1260020, 1261005, 1261007, 1261010, 1261012, 1261015, 1261020, 1262005, 1262007, 1262010, 1262012, 1262015, 1262020, 1262025, 1262030, 1262040, 1280005, 1280007, 1280010, 1280012, 1280015, 1280020, 1281005, 1281007, 1281010, 1281012, 1281015, 1281020, 1282005, 1282007, 1282010, 1282012, 1282015, 1282020, 1282025, 1282030, 1282040
