Description
CLEARANCE ITEM: PVDF Ball Check Valves

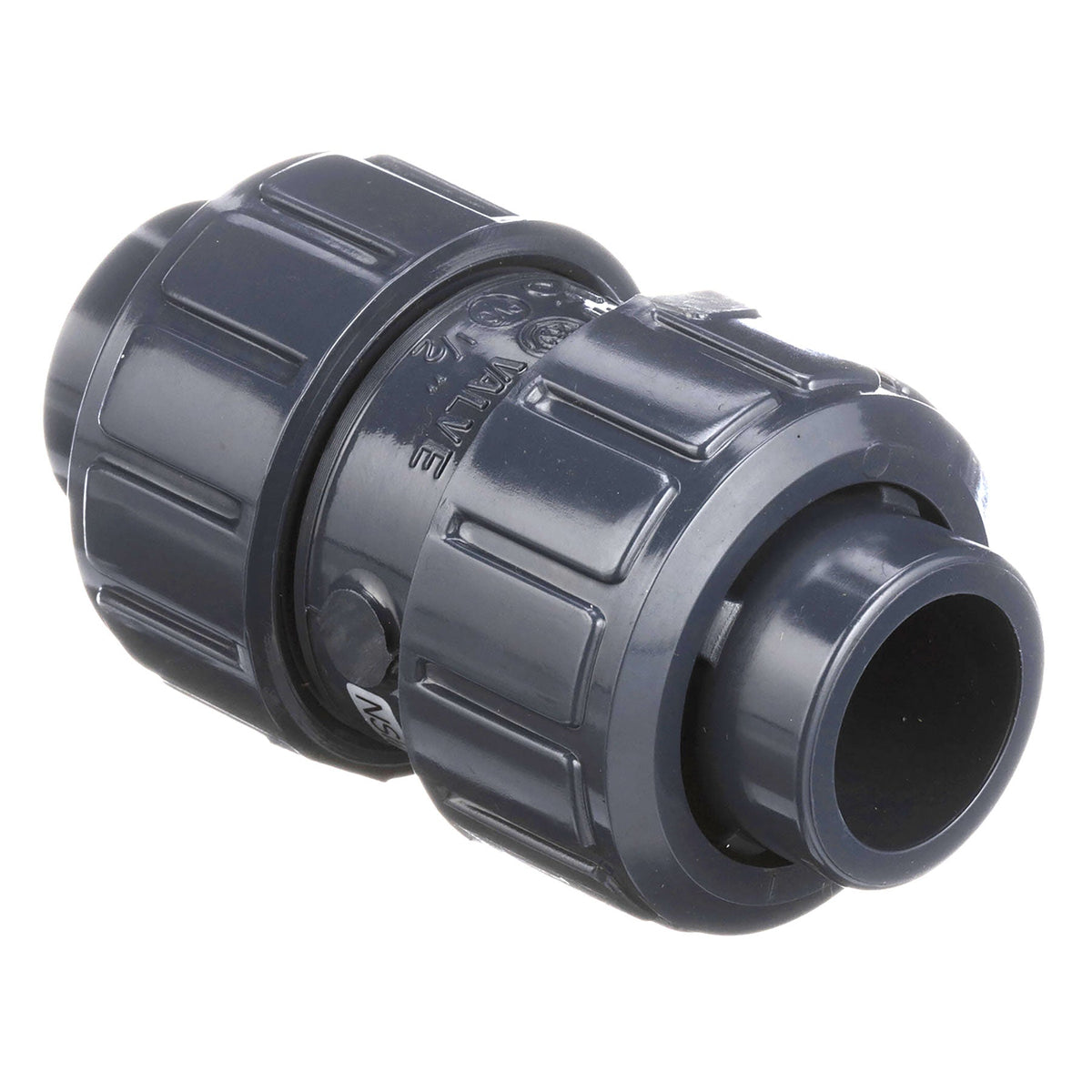

True Union Ball Check Valve (1/2 - 2 in.) and Single Union Ball Check Valve (3 - 4 in.)
The Asahi/America ball check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent backflow. It may be installed vertically or horizontally. Also available as foot valve for suction side of pump.
Ideal Applications Include:
Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants
Features & Benefits:
- Uniseat/seal of EPDM or FKM
- Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
- May be used vertically or horizontally
- Minimum shut-off of 5 psi
- All sizes rated for full vacuum service
- Solid thermoplastic ball
Asahi Part Numbers: 1290005, 1230005, 1231005, 1290007, 1230007, 1231007, 1290010, 1230010, 1231010, 1290012, 1230012, 1231012, 1290015, 1230015, 1231015, 1290020, 1230020, 1231020, 1290030, 1230030, 1231030, 1290040, 1230040, 1231040, 1232005, 1232007, 1232010, 1232012, 1232015, 1232020, 1232030, 1232040, 1233005, 1233007, 1233010, 1233012, 1233015, 1233020, 1233030, 1233040, 1208005, 1208007, 1208010, 1208012, 1208015, 1208020
Note: Product images shown are for illustration purposes only and may not be an exact representation. To the best of our knowledge, all products are functioning properly when shipped.
