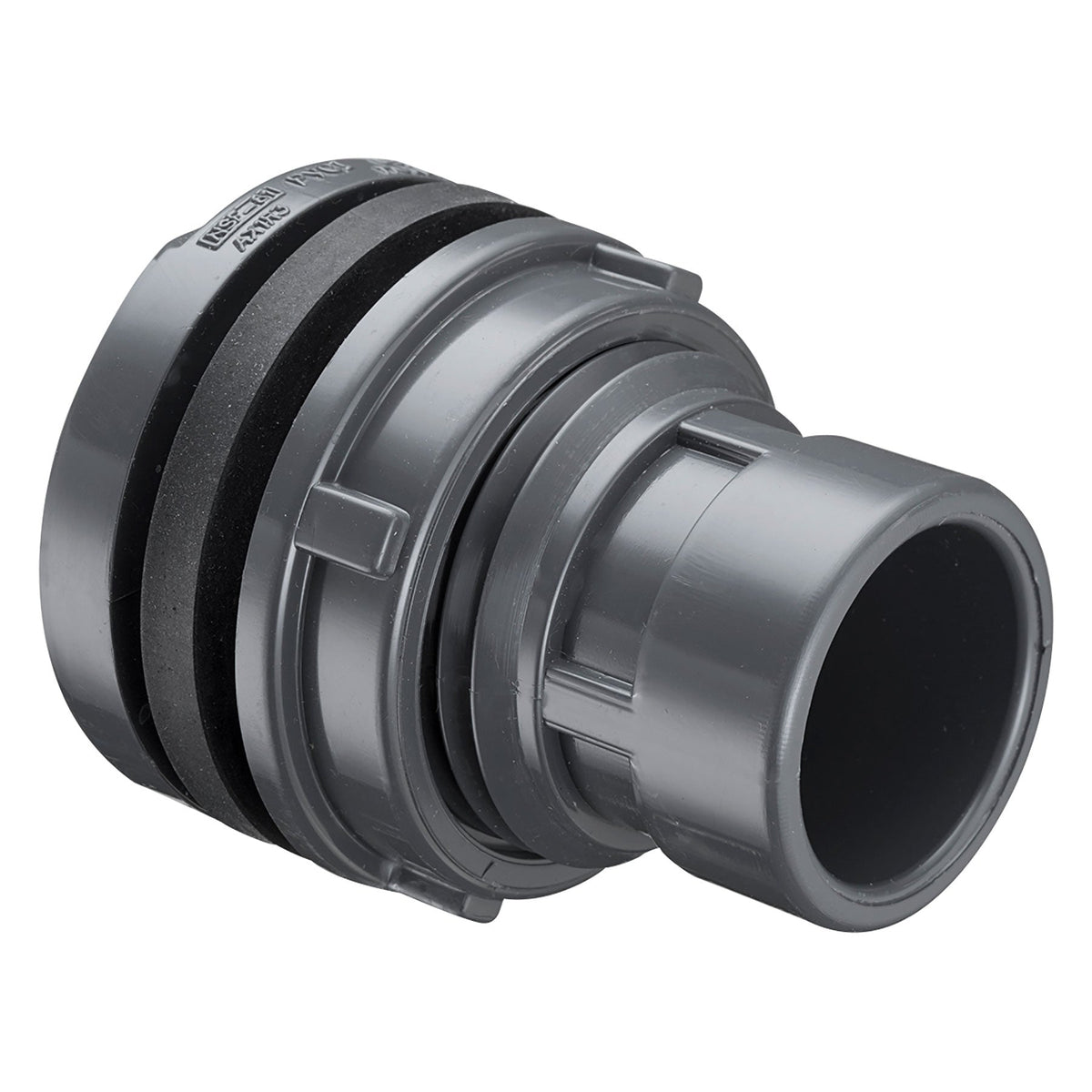

PVC Bulkhead, 1/4 in. to 8 in. Sizes

SpearsSKU: 8172-010

Details:
1 in. Thr x Thr Neoprene PVC Bulkhead
Size: 1 in.
Connection: Thr x Thr
Gasket: Neoprene
Price:
Sale price$60.84
Stock:
In stock

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

Spears PVC bulkhead tank adaptor. 150 psi Maximum Internal Pressure Rating at 73 degrees Fahrenheit. Certified for use in potable water applications in CA and VT.

PVC Soc x Soc

SKU Size L L1 M M1 N R
8170-002 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-3/16 1/2
8170-003 3/8 2-1/2 1-27/32 1-5/8 31/32 7/8 1/2
8170-005 1/2 2-15/16 2-3/16 2 1-3/16 1-1/8 5/8
8170-007 3/4 2-15/16 2-3/16 2-1/4 1-5/8 15/16 5/8
8170-010 1 3-5/16 2-9/16 2-5/8 2 1-1/16 5/8
8170-012 1-1/4 3-7/16 2-5/8 3-1/8 2-5/16 15/16 5/8
8170-015 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 13/16 5/8
8170-020 2 4-1/8 3-1/4 4-7/8 3-1/4 1-1/16 3/4
8170-025 2-1/2 4-27/32 3-7/8 5-1/4 3-13/16 1-9/32 1
8170-030 3 5-1/2 4-1/2 6 4-9/16 1-11/16 1
8170-040 4 5 4 7-1/2 5-1/2 7/16 1-1/4
8170-080 8 8-5/8 7 12-15/16 10-1/4 1/2 1-1/2

PVC Soc x Fipt

SKU Size L L1 M M1 N R
8171V-002 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-1/4 1/2
8171V-003 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/16 1/2
8171V-005 1/2 2-29/32 2-7/16 2-1/32 1-7/32 1-1/2 5/8
8171V-007 3/4 2-15/16 2-15/32 2-1/4 1-5/8 1-3/16 5/8
8171V-010 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8171V-012 1-1/4 3-13/32 2-27/32 3-3/32 2-5/16 1-17/32 5/8
8171V-015 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-1/4 5/8
8171V-020 2 4-1/8 3-1/4 4-7/8 3-1/4 1-5/8 3/4
8171V-025 2-1/2 4-7/8 7/8 5-1/4 3-13/16 1-13/16 1
8171V-030 3 5-1/2 4-1/2 6 4-9/16 2-3/16 1
8171V-040 4 5 4 7-1/2 5-1/2 1-1/4 1-1/4

PVC Fipt x Fipt

SKU Size L L1 M M1 N R
8172-002 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-5/16 1/2
8172-003 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/8 1/2
8172-005 1/2 2-15/16 2-3/16 2 1-7/16 1-1/2 5/8
8172-007 3/4 2-15/16 2-15/32 2-1/4 1-5/8 1-1/2 5/8
8172-010 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8172-012 1-1/4 3-13/32 2-27/32 3-3/32 2-5/16 1-17/32 5/8
8172-015 1-1/2 3-19/32 3-1/16 3-19/32 2-21/32 1-11/16 5/8
8172-020 2 4-1/8 3-1/4 4-7/8 3-1/4 2-3/16 3/4
8172-025 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 2-1/4 1
8172-030 3 5-1/2 4-1/2 6 4-9/16 2-11/16 1
8172-040 4 5 4 7-1/2 5-1/2 2 1-1/4
8172-060 6 5 4-3/16 9-7/8 7-31/32 1-5/32 1-1/4

Tank Adapter Hole Size Specs

Tank Adapter Size Minimum Hole Size Minimum Inside Curvature Radius (inches) Maximum Tank Wall Thickness (inches)
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25

Tank Adapter Gasket Specs

Size O.D.* I.D.* T
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25
