Description

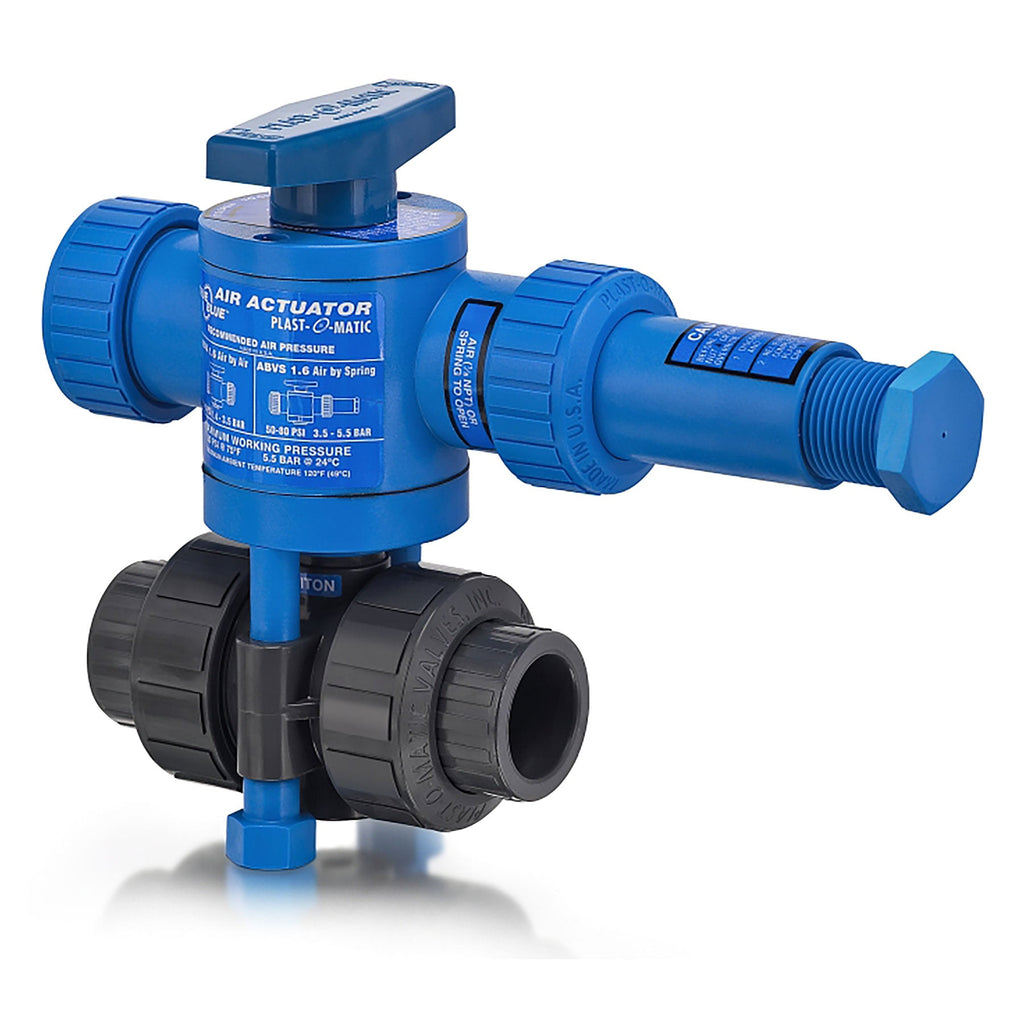

CLEARANCE ITEM: 1/2 in. ABVS Series PVC Air Actuated Ball Valve
Features:
- Rugged plastic construction designed to NEMA 4X standards for highly corrosive atmospheres.
- Direct manual override is standard.
- Designed and tested for long cycle life.
- Installs easily to Ball Valve.
- ABVA converts easily to fail-safe ABVS via simple attachment of Spring Return Assembly.
- ABVS converts easily between normally-open and normally-closed operation.
- Can be hydraulically actuated.
- Thermoplastic "NEMA-4" type Limit Stops and Limit Switches available.
- Each valve and actuator is 100% individually inspected and tested prior to shipment.
The ABVS can be ordered as a completely assembled fail-safe actuator, or it can be ordered later as an "add-on" kit for an existing ABVA actuator. The basic actuator is the same; using the add-on kit creates an identical actuator to the factory assembled version. Another nice feature of the ABVS is that the spring and spring housing can be readily unscrewed and moved to the opposite side, changing the actuator from fail-safe/closed to fail-safe/open.
Plast-O-Matic Part Number: ABVS050EPS-PV 1/2 in PVC/EPDM/Socket, ABVS050VS-PV 1/2 in PVC/FKM/Socket
Note: Product images shown are for illustration purposes only and may not be an exact representation. To the best of our knowledge, all products are functioning properly when shipped.
