Description
- 12-volt DC operated
- 24-volt available - special order contact sales
- Open/closed indicator
- On/Off has 3/4 second response
- Regulating has 4 second response
- Open / Close verification available
- IP68 waterproof
- -0 to 150F (-18 to 65C) operating
- -67 to 221F (-55 to 105C) storage
- On/Off Actuator rated to 500,000 cycles
- Regulating Actuator rated to 250,000 cycles
- Valve rated to 50,000 cycles leak-free
- Bolted valves have the same exact dimensions as our legacy EV valves.
- Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
- 316 stainless steel ball & stem
- Poly ball available on bolted valves
- Stainless steel hardware
- Fiberglass reinforced polypropylene
- PTFE seats
- FKM stem seals
On/Off
- Red = +12V DC
- Black = Ground
- White = +12VDC (Open) / 0VDC (Close)
4 Wire Regulating
- Red = +12V DC (Open)
- White = Ground (Open)
- Black = +12V DC (Close)
- Green = Ground (Close)
Variants & Pricing
| SKU | Details | Price | Stock |
|---|---|---|---|

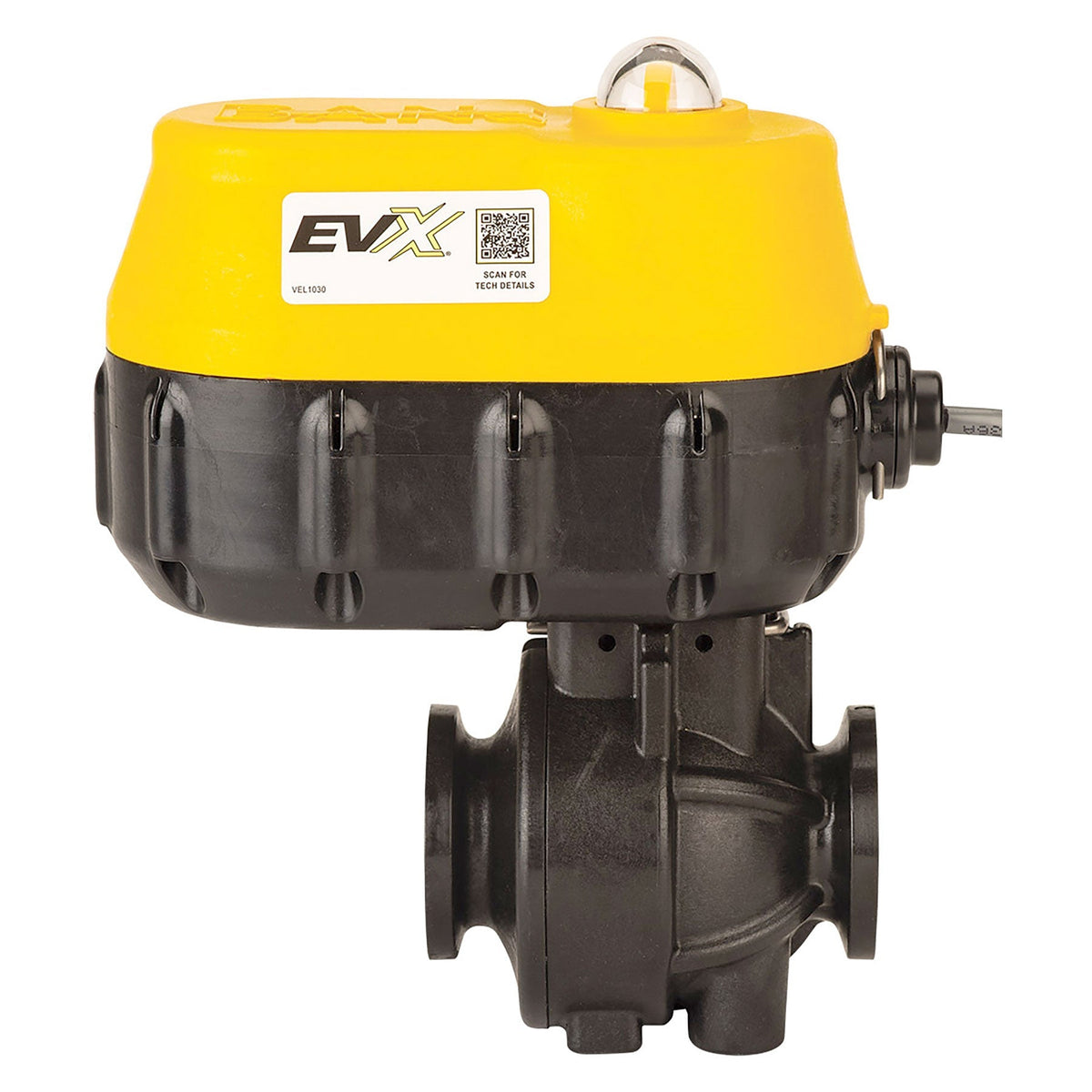

| MEVX100 | 1 in. 12-Volt On/Off Welded Full Port Manifold Flange Electric Valve | $388.19 | Special Order Item Lead time: 45 days |
| MEVX10024F3 | 1 in. 24-Volt On/Off Welded Full Port Manifold Flange Electric Valve | $440.69 | In stock |
| MEVXR100 | 1 in. 12-Volt Regulating Welded Full Port Manifold Flange Electric Valve | $468.08 | Special Order Item Lead time: 45 days |

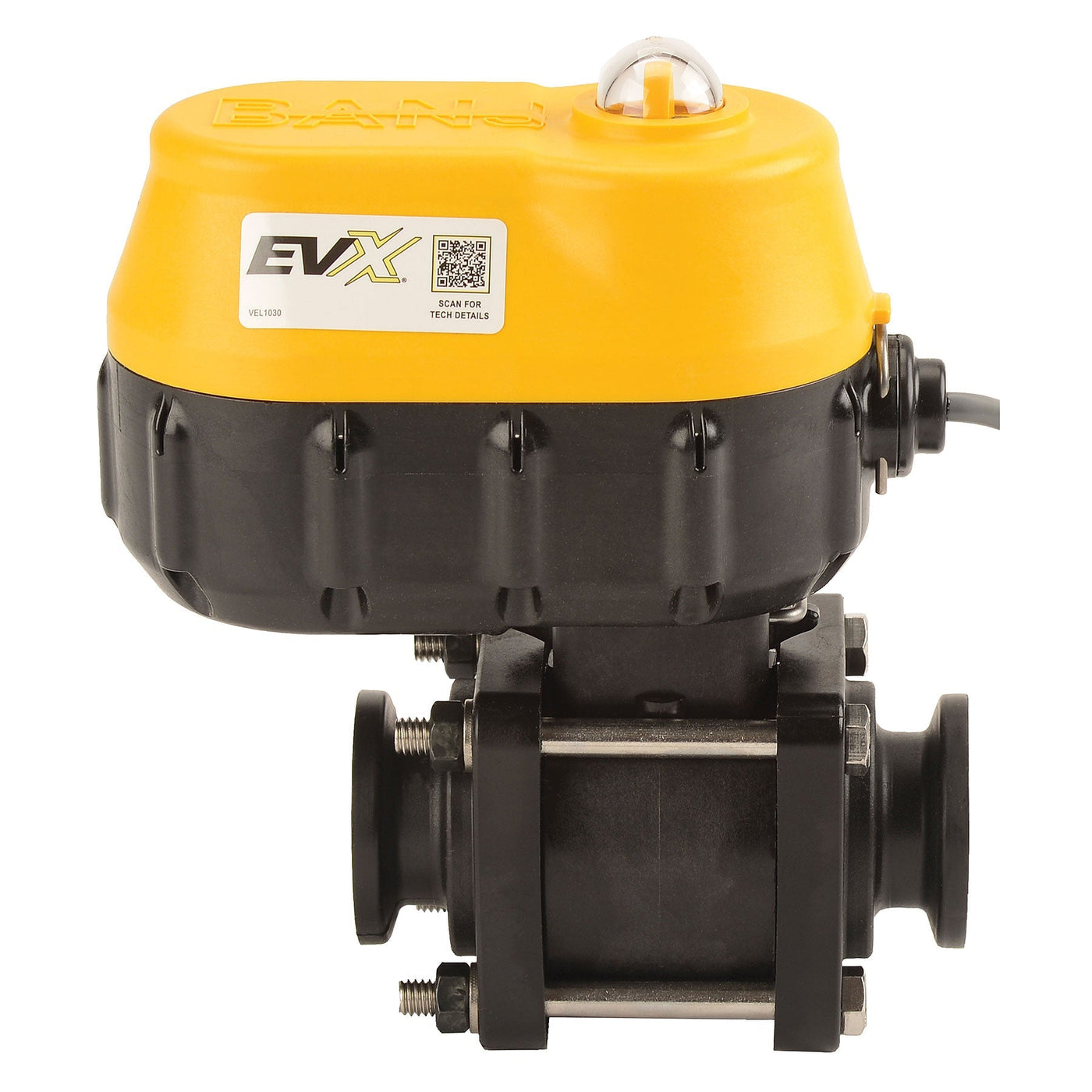

| MEVX101 | 1 in. 12-Volt On/Off Bolted Full Port Manifold Flange Electric Valve | $384.25 | In stock |
| MEVX10124 | 1 in. 24-Volt On/Off Bolted Full Port Manifold Flange Electric Valve | $408.06 | In stock |
| MEVXR101 | 1 in. 12-Volt Regulating Bolted Full Port Manifold Flange Electric Valve | $394.19 | Re-stocking soon Lead time: 5 days |
