Description
- 12-volt DC operated
- 24-volt available - special order contact sales
- Open/closed indicator
- 1 in. & 1-1/4 in. On/Off has 3/4 second response
- 1-1/2 in. & 2 in. On/Off has 1-1/2 second response
- Open / Close verification available
- IP68 waterproof
- -0 to 150F (-18 to 65C) operating
- -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles
- Valve rated to 50,000 cycles leak-free
- These bolted valves have the exact same dimensions as our legacy EV valves.
- Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
- 316 stainless steel ball and stem
- Stainless steel hardware
- Fiberglass reinforced polypropylene
- PTFE seats
- FKM stem seals
On/Off
- Red = +12V DC
- Black = Ground
- White = +12VDC (Open) / 0VDC (Close)
4 Wire Regulating
- Red = +12V DC (Open)
- White = Ground (Open)
- Black = +12V DC (Close)
- Green = Ground (Close)
EVX Standard & Full Port, Bottom & Side Load Bolted Electric Ball Valves
| Part # | Description | Volts | Max PSI | Pipe Size | Opening Thru Ball |
|---|---|---|---|---|---|
| EVX075BL | 3/4" FP BL | 12V | 300 | 3/4" | 1" |

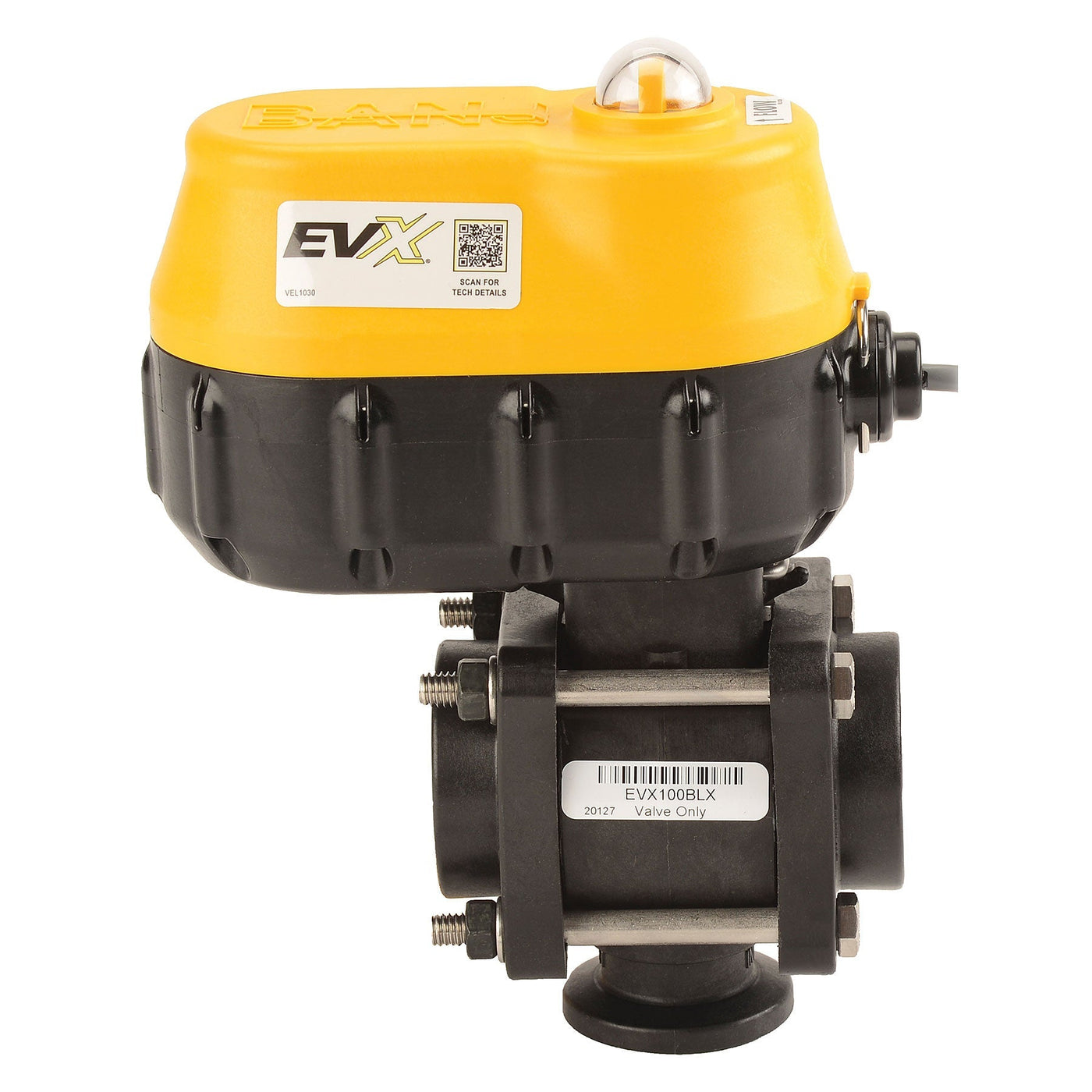

| EVX100BL | 1" FP BL | 12V | 300 | 1" | 1" |
| EVX125BL | 1-1/4" FP BL | 12V | 250 | 1-1/4" | 1" |
| EVX150BL | 1-1/2" FP BL | 12V | 250 | 1-1/2" | 1-1/2" |

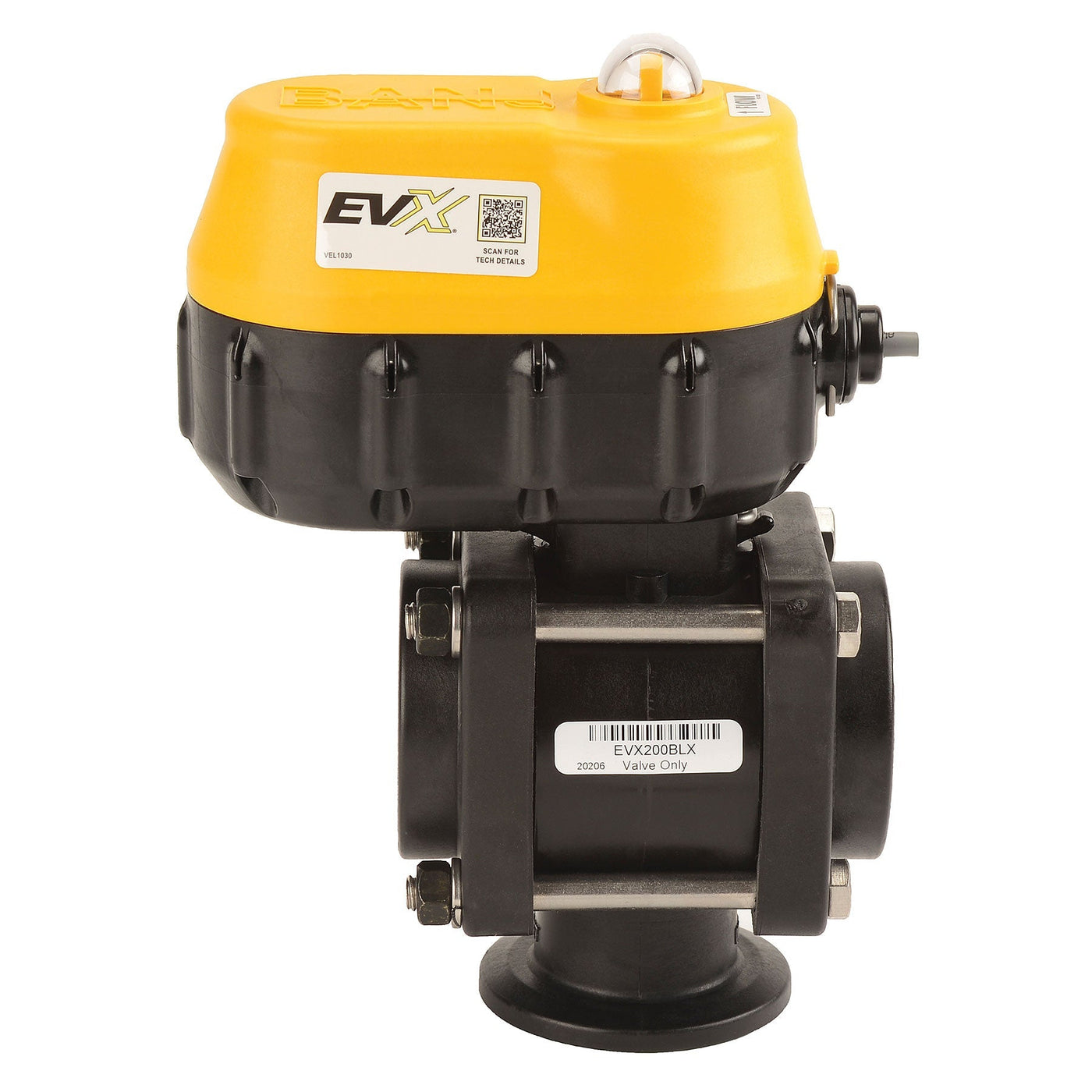

| EVX200BL | 2" SP BL | 12V | 250 | 2" | 1-1/2" |
| EVX220BL | 2" FP BL | 12V | 125 | 2" | 2" |
| EVX075SL | 3/4" FP SL | 12V | 300 | 3/4" | 1" |

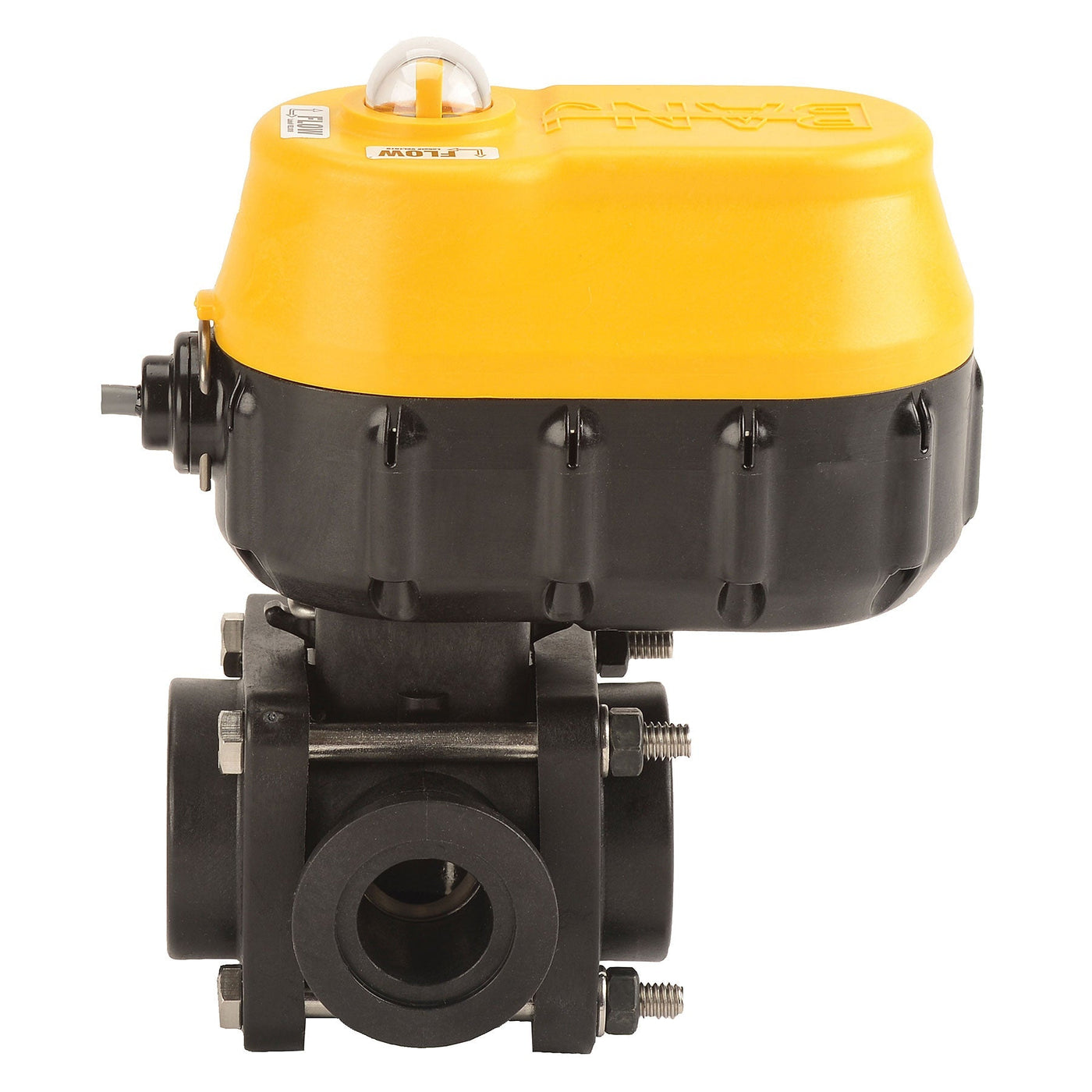

| EVX100SL | 1" FP SL | 12V | 300 | 1" | 1" |
| EVX125SL | 1-1/4" FP SL | 12V | 250 | 1-1/4" | 1" |
| EVX150SL | 1-1/2" FP SL | 12V | 250 | 1-1/2" | 1-1/2" |

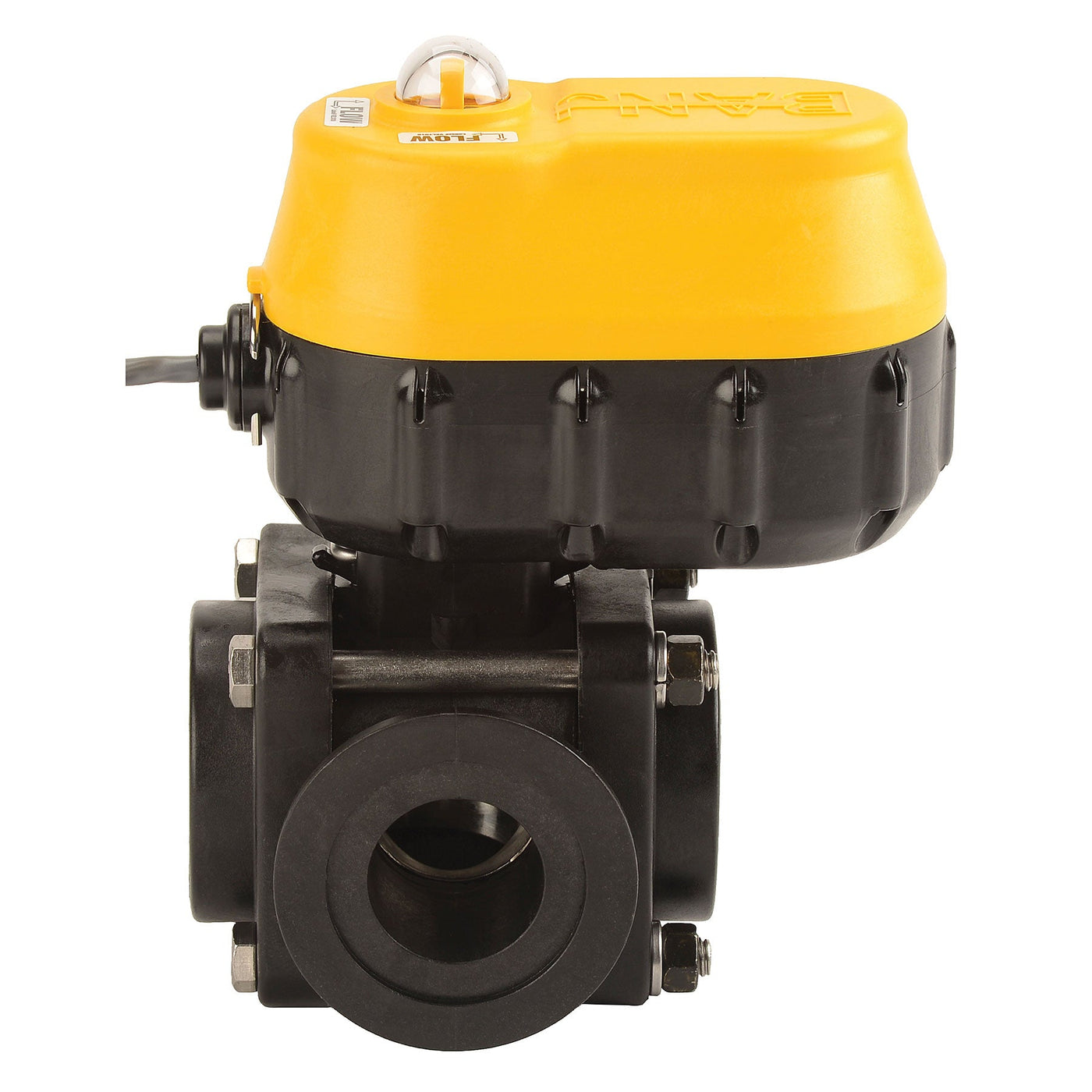

| EVX200SL | 2" SP SL | 12V | 250 | 2" | 1-1/2" |

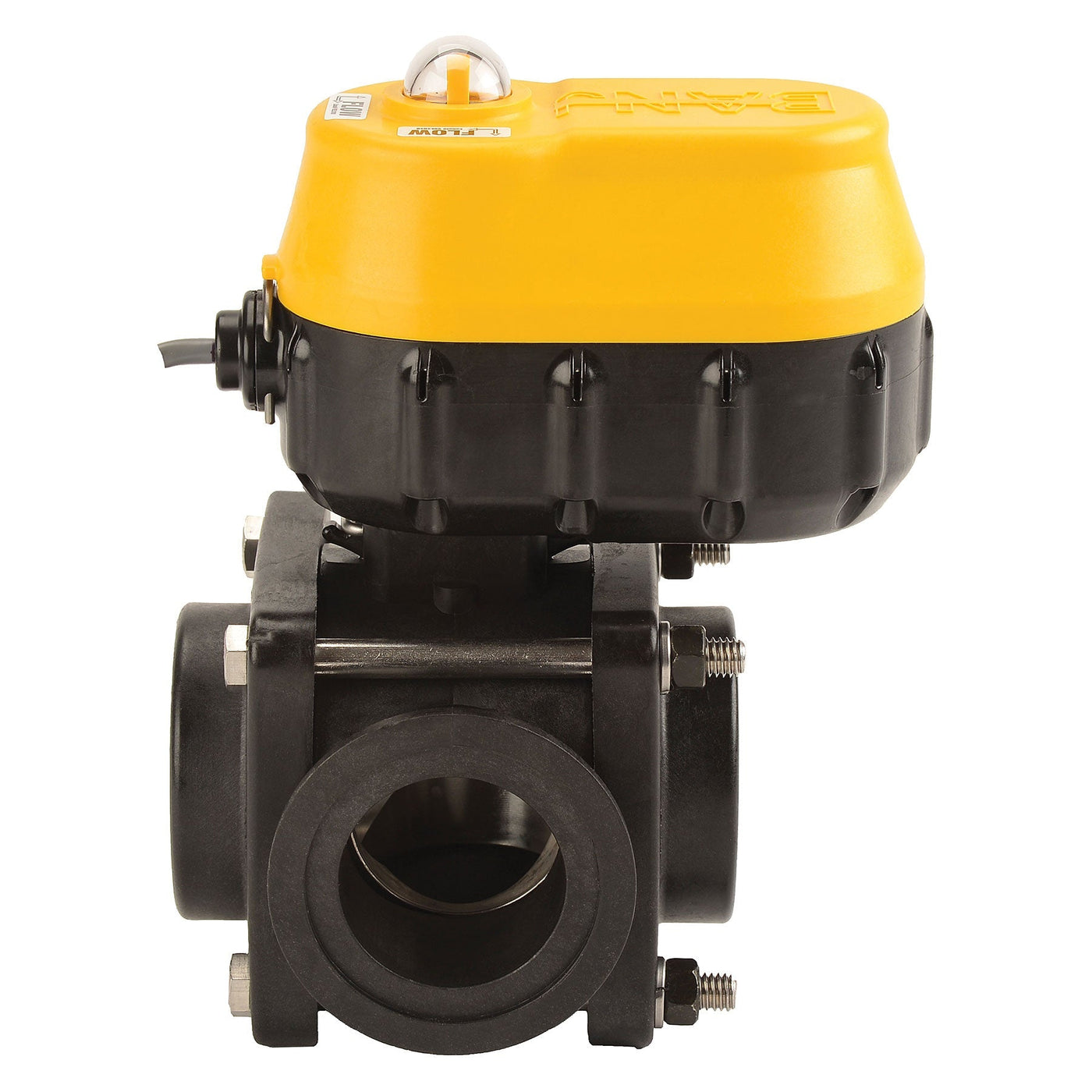

| EVX220SL | 2" FP SL | 12V | 125 | 2" | 2" |
