Description
- 12-volt DC operated
- 24-volt available - special order contact sales
- Open/closed indicator
- 3/4 in.-1-1/4 in. On/Off has 3/4 sec response
- 1-1/2 in. On/Off has 1-1/2 sec response
- Regulating has 4 sec response
- Open / Close verification available
- IP68 waterproof
- -0 to 150F (-18 to 65C) operating
- -67 to 221F (-55 to 105C) storage
- On/Off Actuator rated to 500,000 cycles
- Regulating Actuator rated to 250,000 cycles
- Valve rated to 50,000 cycles leak-free
- Bolted valves have the same exact dimensions as our legacy EV valves.
- Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
- 316 stainless steel ball & stem
- Poly ball available
- Stainless steel hardware
- Fiberglass reinforced polypropylene
- PTFE seats
- FKM stem seals
On/Off
- Red = +12V DC
- Black = Ground
- White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating
- Red = +12V DC (Open)
- White = Ground (Open)
- Black = +12V DC (Close)
- Green = Ground (Close)
EVX Bolted Electric Ball Valves
| Part # | Description | Volts | Max PSI | Pipe Size | Opening Thru Ball |
|---|---|---|---|---|---|
| EVX071 | 3/4" FP On/Off | 12V | 300 | 3/4" | 1" |
| EVX07124 | 3/4" FP On/Off | 24V | 300 | 3/4" | 1" |
| EVX101 | 1" FP On/Off | 12V | 300 | 1" | 1" |
| EVX10124 | 1" FP On/Off | 24V | 300 | 1" | 1" |
| EVX10124F3 | 1" FP On/Off O/C V | 24V | 300 | 1" | 1" |
| EVX121 | 1-1/4" SP On/Off | 12V | 300 | 1-1/4" | 1" |
| EVX151 | 1-1/2" FP On/Off | 12V | 250 | 1-1/2" | 1-1/2" |
| EVX15124 | 1-1/2" FP On/Off | 24V | 250 | 1-1/2" | 1-1/2" |
| EVXR071 | 3/4" FP Regulating | 12V | 300 | 3/4" | 1" |
| EVXR101 | 1" FP Regulating | 12V | 300 | 1" | 1" |

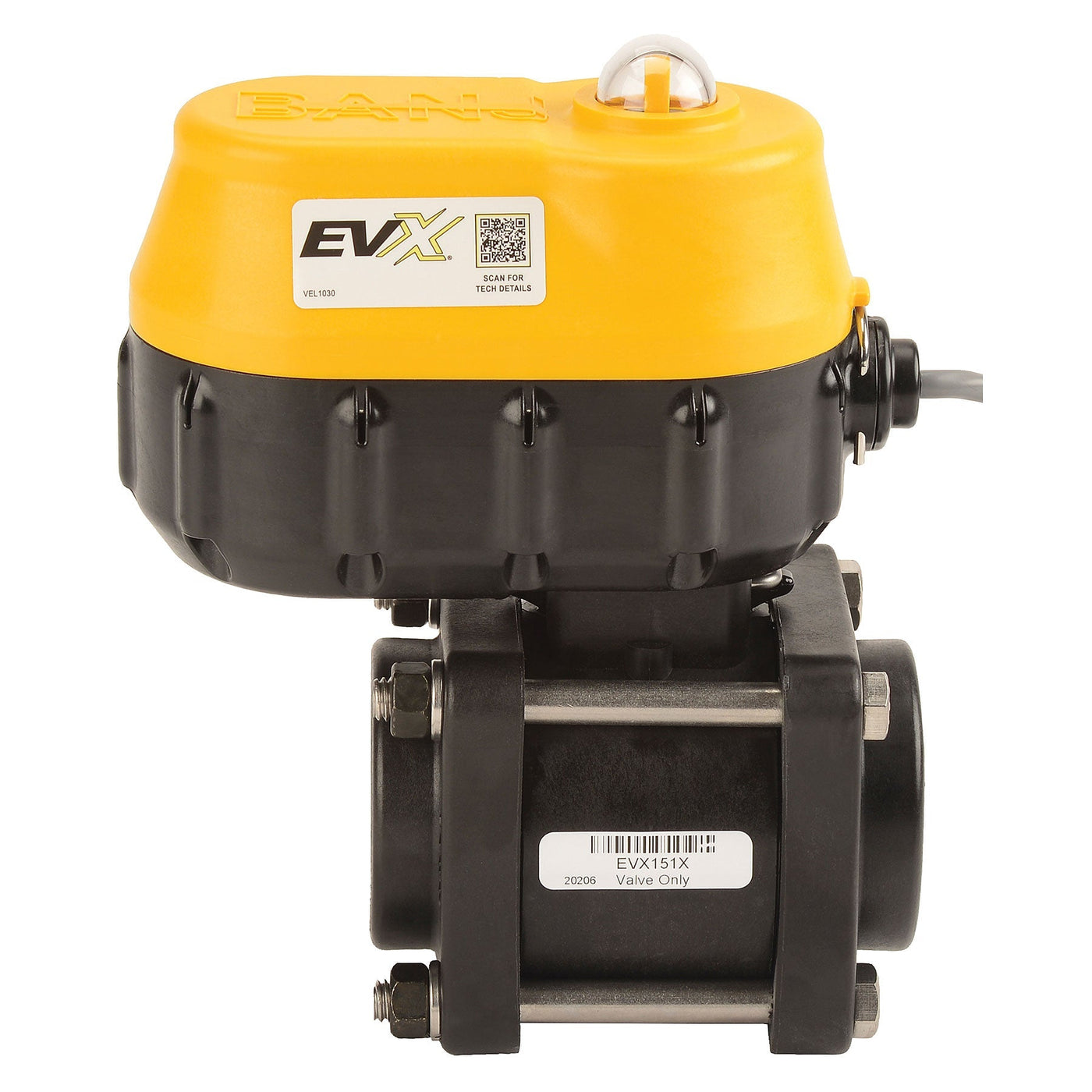

| EVXR151 | 1-1/2" FP Regulating | 12V | 250 | 1-1/2" | 1-1/2" |
