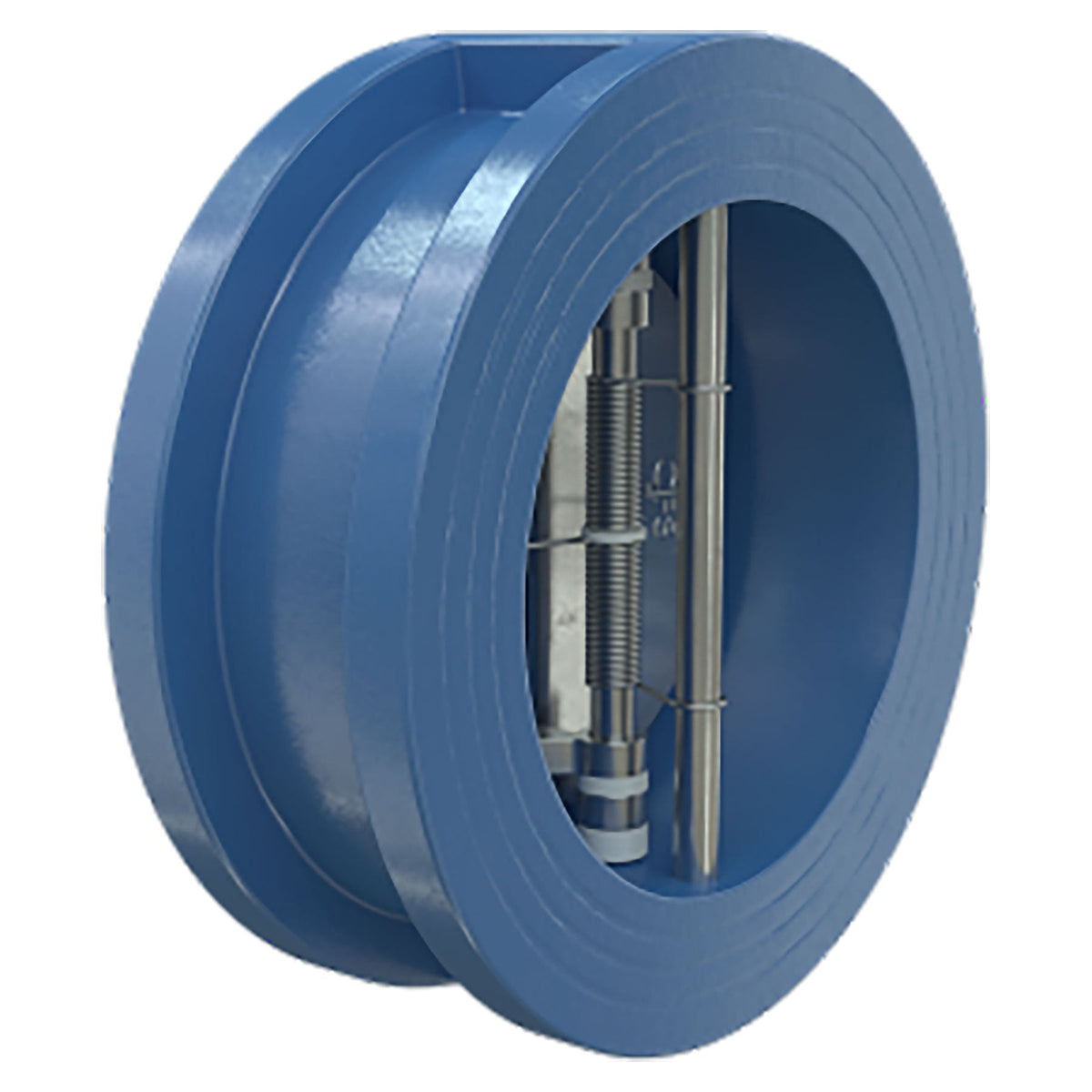

CLEARANCE ITEM: 316SS Wafer Double Disc Check Valve
Valve is designed for liquid service only. Install 5 to 10 pipe diameters downstream from pump discharge or elbows to avoid flow turbulence. Valve is designed to be mated to standard steel flanges.
Features:
- Horizontal or Vertical Flow
- 200 PSI at 150 degrees F, 190 PSI at 200 degrees F
- Body - Cast Iron ASTM A126 Class B, Molded-In EPDM Seat
- Disc - Stainless Steel T316-ASTM A351
- Spring - Stainless Steel T316-ASTM A351
- Disc Hinge Pin - Stainless Steel T316-ASTM A351
- Disc Stop Pin - Stainless Steel T316-ASTM A351
- Disc Thrust Bearing - Teflon
- Hinge Pin Retainer - Steel
- Stop Pin Retainer - Steel
Note:
Note: Product images shown are for illustration purposes only and may not be an exact representation. To the best of our knowledge, all products are functioning properly when shipped.
