Description
- 12-volt DC operated
- 24-volt available - special order contact sales
- Open/closed indicator
- On/Off has 4 second response
- Regulating has 4 second response
- Open / Close verification available
- IP68 waterproof
- -0 to 150F (-18 to 65C) operating
- -67 to 221F (-55 to 105C) storage
- Actuator rated to 250,000 cycles
- Valve rated to 50,000 cycles leak-free
- Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
- 316 stainless steel ball & stem
- Stainless steel hardware
- Fiberglass reinforced polypropylene
- Zinc alloy lower actuator housing
- PTFE seats
- FKM stem seals
On/Off
- Red = +12V DC
- Black = Ground
- White = +12VDC (Open) / 0VDC (Close)
4 Wire Regulating
- Red = +12V DC (Open)
- White = Ground (Open)
- Black = +12V DC (Close)
- Green = Ground (Close)

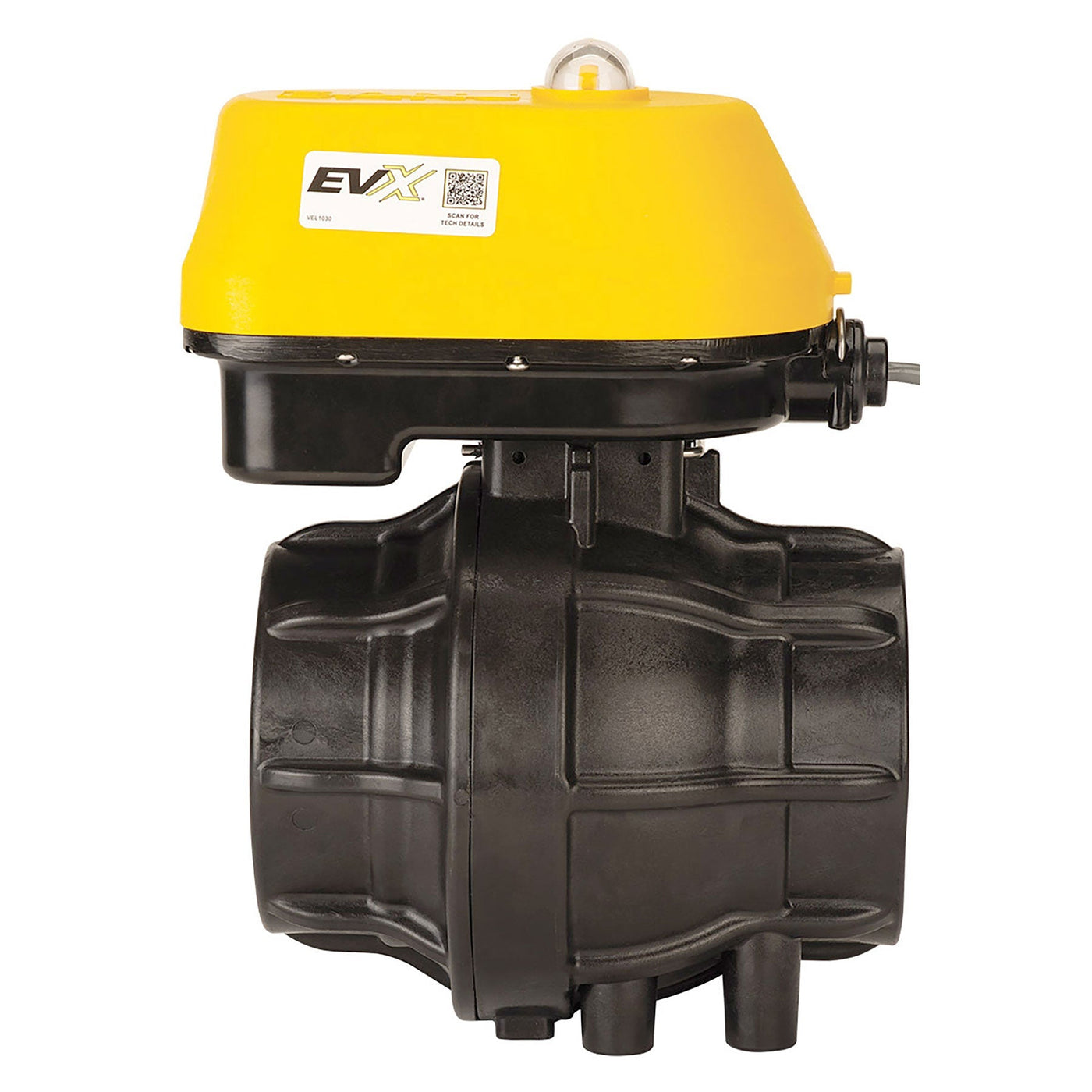

EVX Full Port Welded Electric Ball Valves
| Part # | Description | Volts | Max PSI | Pipe Size | Opening Thru Ball |
|---|---|---|---|---|---|
| EVX300 | 3" FP On/Off | 12V | 125 | 3" | 3" |
| EVX30024 | 3" FP On/Off | 24V | 125 | 3" | 3" |
| EVXR300 | 3" FP Regulating | 12V | 125 | 3" | 3" |
