Description

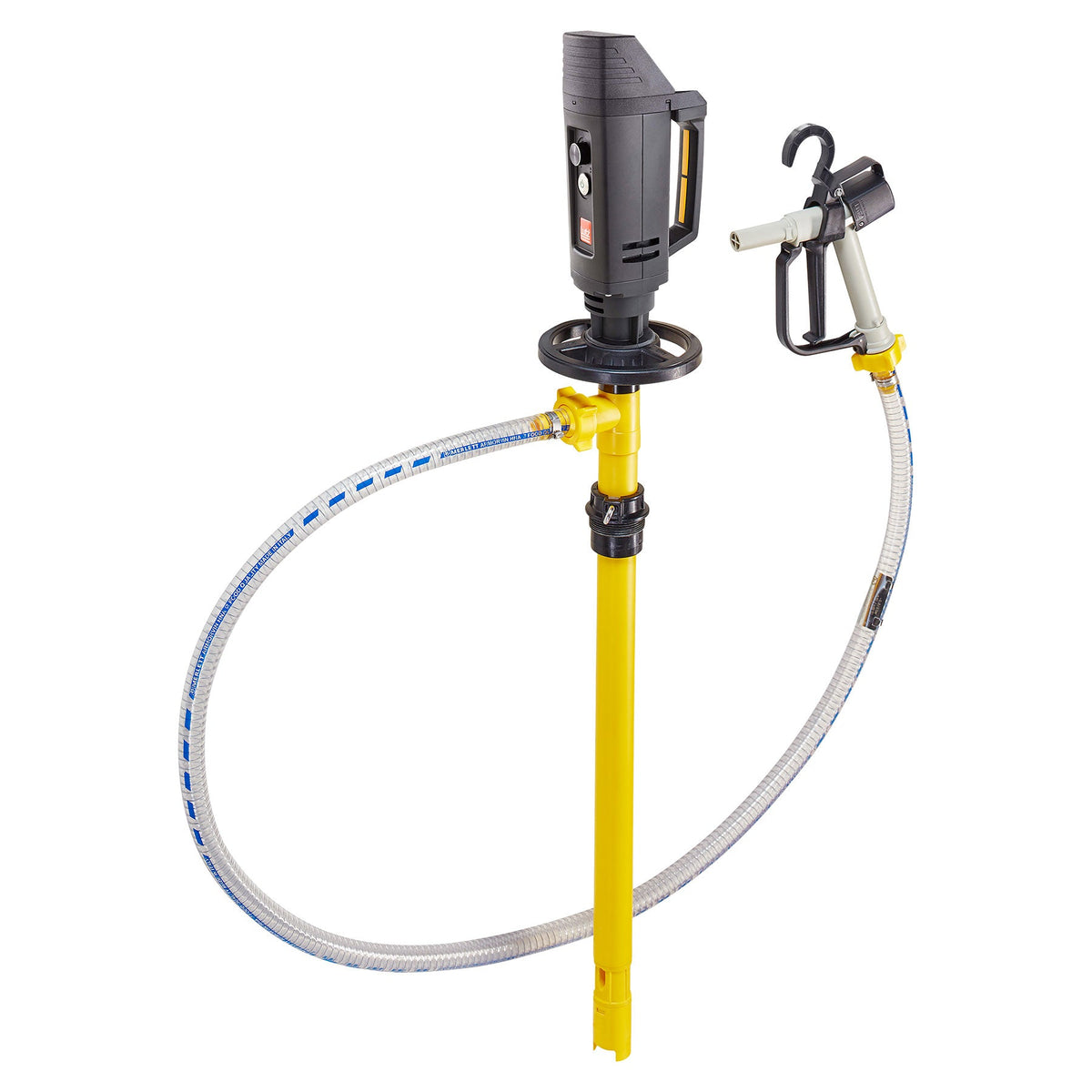

B3 Battery Polypropylene Pump Kit
For thin-bodied acids such as sodium hydroxide, potassium hydroxide, ammonia water, formic acid and acetic acid. For removing large quantities from canisters, drums and containers.
Motor B3 Battery
320 watts, infinitely variable, internally ventilated, IP24, low weight, long service life, low noise level
Technical Data
Density: 1.4 kg/dm³
Viscosity: Up to 700 mPas
Flow Rate: 77 (45) l/min.
Delivery Head: 11.8 m wc
Pump Kit Includes
Motor B3 Battery, Pump tube PP 41-L-SL HC, Hose connection PP 3/4 in., 2 m PVC spiral hose 3/4 in., Drum adapter PP, Hose clamps, Nozzle PP
NOTE: Maximum liquid temperature 122 degrees F. The use of the nozzle reduces the flow rate to approximate values. The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 68 degrees F. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The flow rate achievable in use is lower and depends on the individual application, the media properties and the configuration of the pump. The max. delivery head is also dependent on the pump design, motor and medium. Viscosity determined with oil. Will be delivered without battery and battery charger.
Downloads
