Description

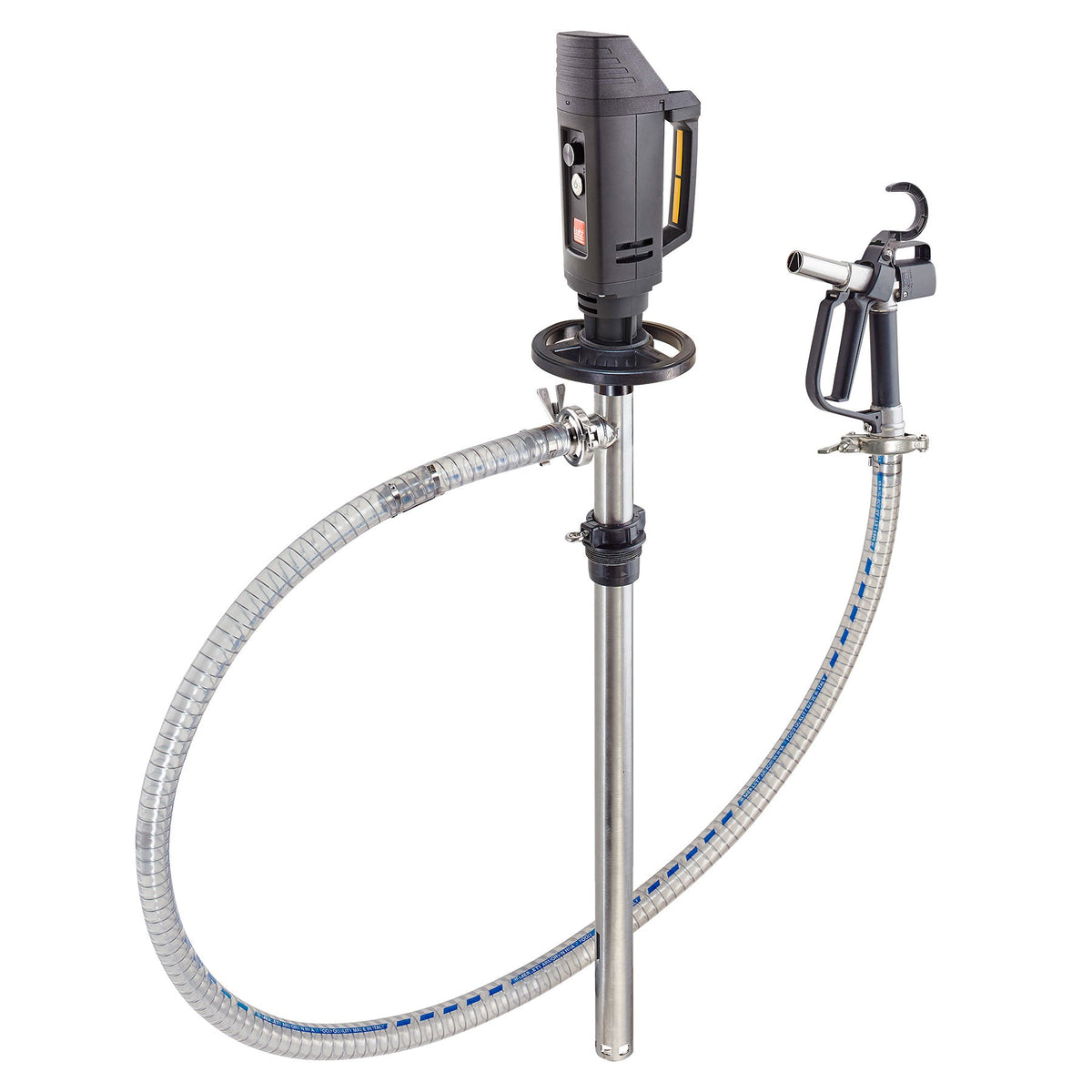

B3 Battery Stainless Steel Pump Kit
For food (PURE version) such as corrosive and neutral, aqueous to slightly viscous liquids in the production and processing of foodstuffs. For removing large quantities from canisters, drums and containers.
Motor B3 Battery
320 watts, infinitely variable, internally ventilated, IP24, low weight, long service life, low noise level
Technical Data
Density: 1.6 kg/dm³
Viscosity: Up to 700 mPas
Flow Rate: 91 (50) l/min.
Delivery Head: 12.3 m wc
Pump Kit Includes
Motor B3 Battery, Pump tube SS 41-L-SL PURE, Drum adapter PP, Tri-Clamp hose set, Nozzle stainless steel
NOTE: Max. liquid temperature 212 degrees F. The use of the nozzle reduces the flow rate to approximate values. The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 68 degrees F. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The flow rate achievable in use is lower and depends on the individual application, the media properties and the configuration of the pump. The max. delivery head is also dependent on the pump design, motor and medium. Viscosity determined with oil. Will be delivered without battery and battery charger.
