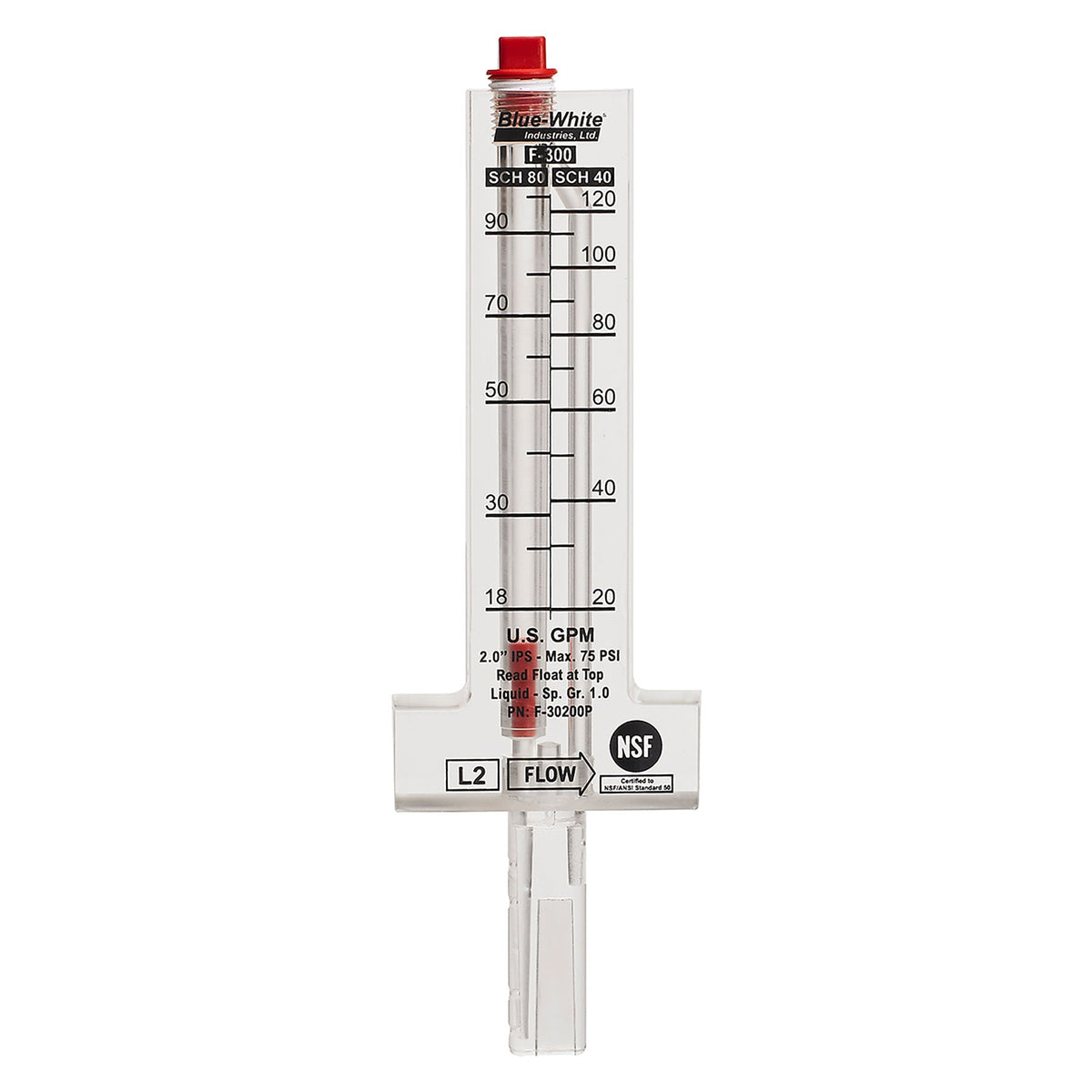

F-300 Acrylic Flow Meters

An aquatics industry standard for over six decades, Blue-White’s F-300 Flow Meter is accurate and has reduced space requirements for installation. The aerodynamic pitot tube is designed for smooth fluid flow through the meter. There are four capture points resulting in no float bounce.

New features include:

• PVDF cap that won’t fade or crack
• PVDF float that won’t stick, is chemical resistant, and easy-to read-color
• Improved accuracy

Features:

• F-300 = Horizontal flow
• D-300 = Vertical downflow
• U-300 = Vertical upflow
• NSF 50 LISTED 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 6, and 8 in. - Horizontal flow only
• Well suited for closed pipe installations
• Easy to read dual scale (SCH 40 / SCH 80), screen printed on both sides of the meter body
• Acceptable for outdoor installations (direct sunlight okay)
• Pitot Tube (impact tube) design makes it easy to install on existing pipe
• One-piece, machined acrylic meter body
• Included SS clamps and gasket seal
• For use on PVC (refer to literature)

Specifications:

• Horizontal Installation: 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 6, and 8 in.
• Vertical Installation: 1-1/2 and 2 in.
• Max. Working Pressure: 75 PSI at 70 degrees F
• Max. Fluid Temperature: 190 degrees F at 0 PSI
• Full Scale Accuracy: +/- 5% (Pipe sizes: , 1-1/4, 1-1/2, 2 in.), +/- 10% (Pipe sizes: 2-1/2, 3, 4, 6, and 8 in.)
• Meter Body Material: Acrylic
• Gasket Material: Neoprene
• Float Material: PVDF
• Connection Type: Saddle
• Pipe Capability: PVC Schedule 40 and Schedule 80
• Approx. Shipping Weight: 1 to 4 in. Pipe: 1 lb., 6 and 8 Pipe: 2 lb.

GPM Scale SCH 40 / SCH 80:

• 1 in. Pipe, 5 - 35 GPM sch 40 (4 - 26 GPM sch 80)
• 1-1/4 in. Pipe, 9 - 50 GPM sch 40 (8 - 40 GPM sch 80)
• 1-1/2 in. Pipe, 10 - 70 GPM sch 40 (10 - 60 GPM sch 80)
• 1-1/2 in. Up/Down Pipe, 10 - 60 GPM sch 40 (10 - 50 GPM sch 80)
• 2 in. Pipe, 20 -120 GPM sch 40 (18 - 100 GPM sch 80)
• 2 in. Up/Down Pipe, 20 - 110 GPM sch 40 (20 - 100 GPM sch 80)
• 2-1/2 in. Pipe, 29 - 150 GPM sch 40 (25 - 130 GPM sch 80)
• 3 in. Pipe, 45 - 240 GPM sch 40 (40 - 205 GPM sch 80)
• 4 in. Pipe, 75 - 420 GPM sch 40 (70 - 375 GPM sch 80)
• 6 in. Pipe, 170 - 1100 GPM sch 40 (160 - 1000 GPM sch 80)
• 8 in. Pipe, 300 - 2200 GPM sch 40 (275 - 1950 GPM sch 80)
