Description

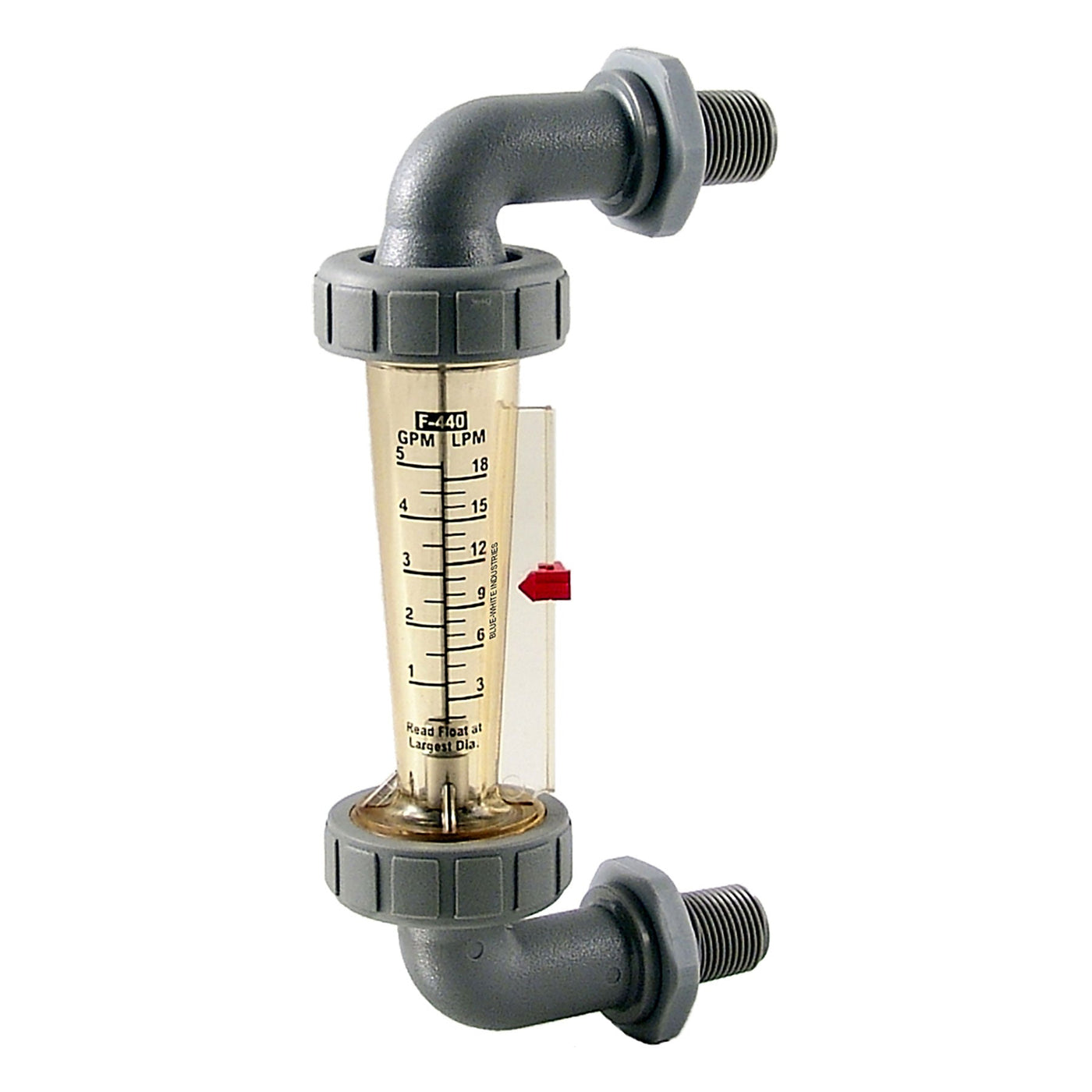

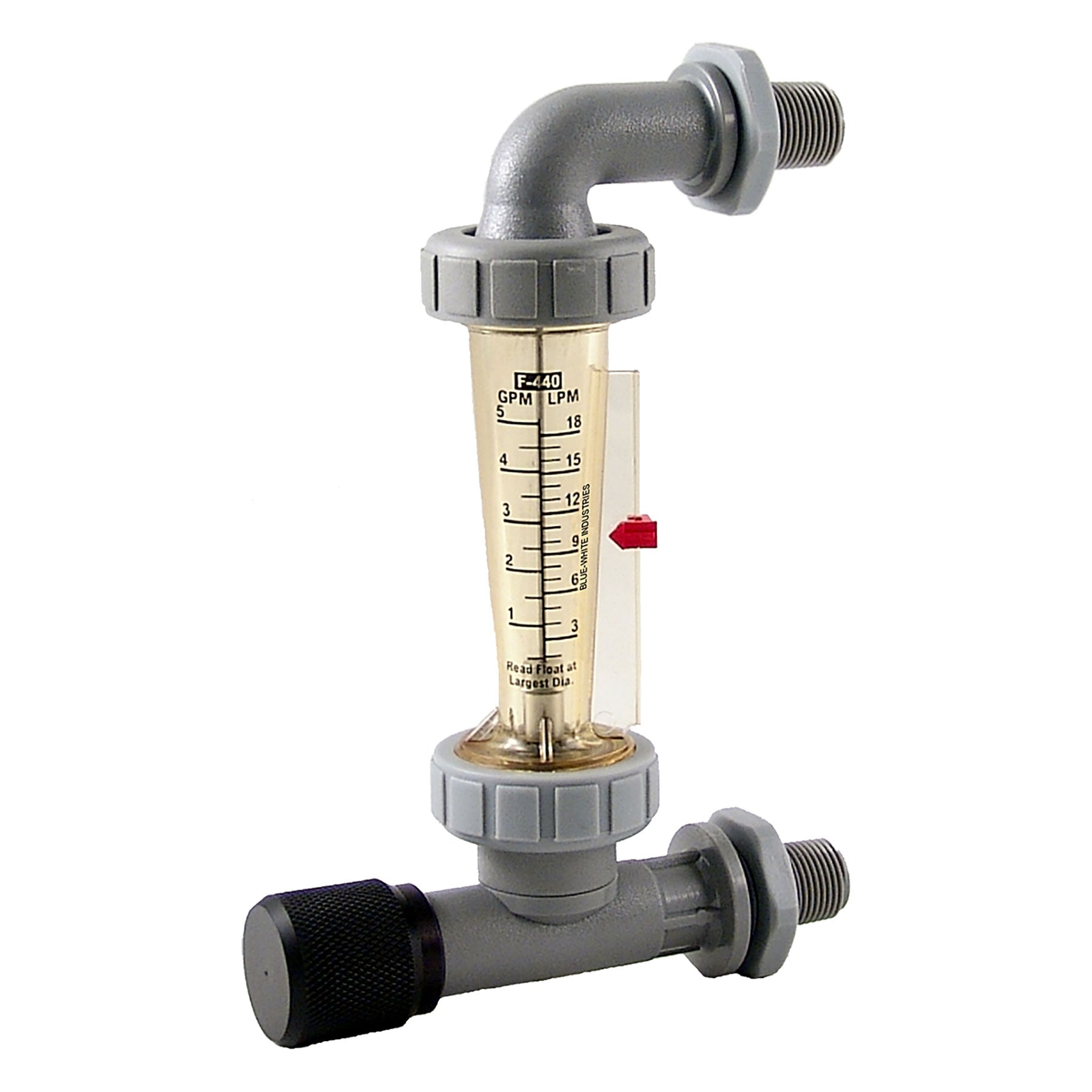

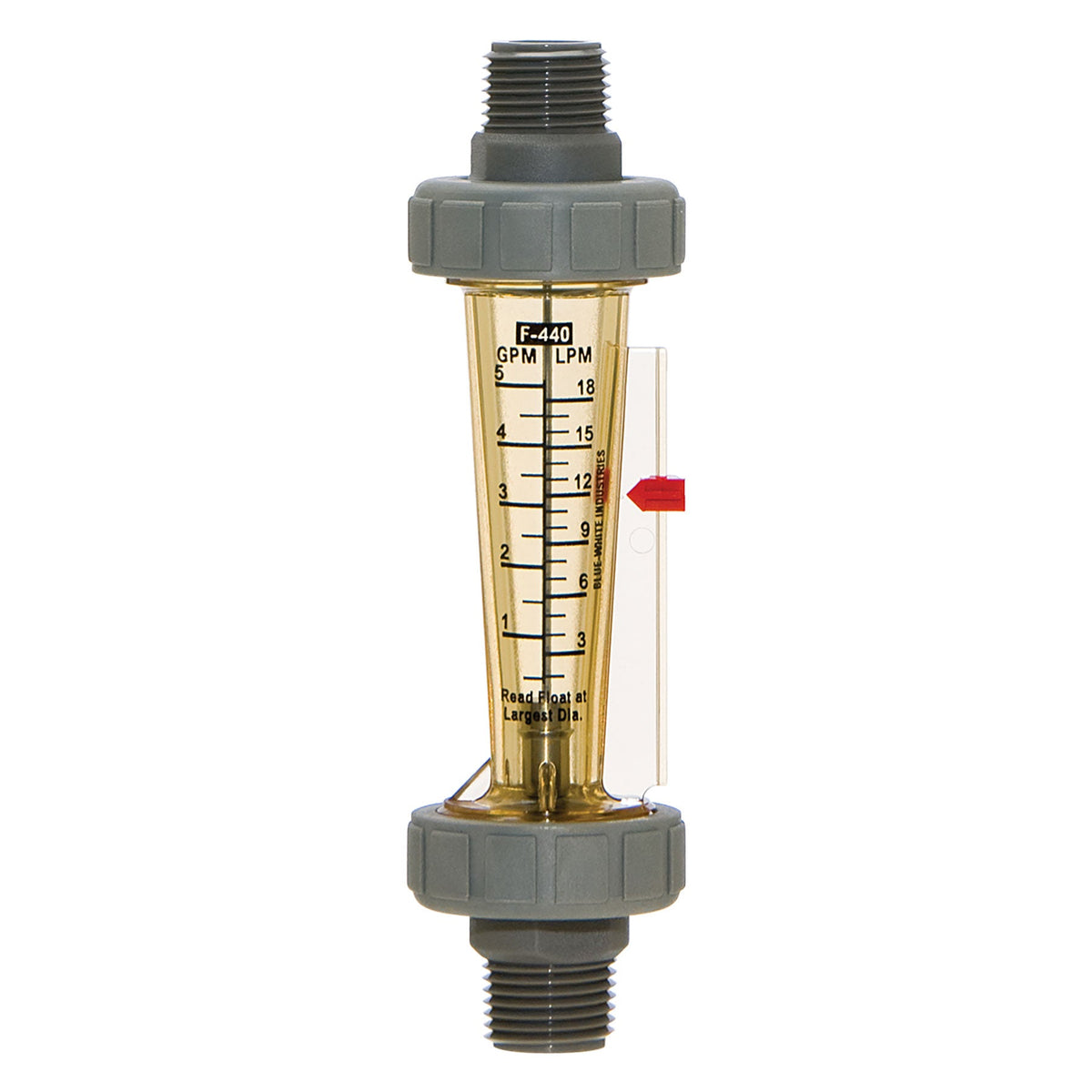

These compact, durable units are injected of heat and chemical-resistant polysulfone. They feature half-union connectors that couple the meter body to the pipe connectors at each end of the flow meter. F-440 Series units are available in configurations for in-line or panel mount installations. Additionally, F-440 units may be ordered with an integral, adjustable flow control needle metering valve.
Features:
- Polysulfone meter body resists high temperatures and pressures.
- Compact size for tight installation spaces.
- 316 SS rod guided float.
- Union connections for easy installation and maintenance.
- Adjustable flow rate setpoint indicator.
- Direct reading permanent scale.
Specifications:
- Max. Working Pressure: 175 psig at 70 degrees F
- Max. Fluid Temperature Standard Models: 212 degrees F at 0 PSI
- Full Scale Accuracy: +/- 4 percent
- Calibration Fluid: Water, specific gravity 1.0
- Scale Length: 2 in. approximate
- Environment: Not for direct sunlight exposure.
- Approximate Shipping wt: 0.5 lb.
