Description

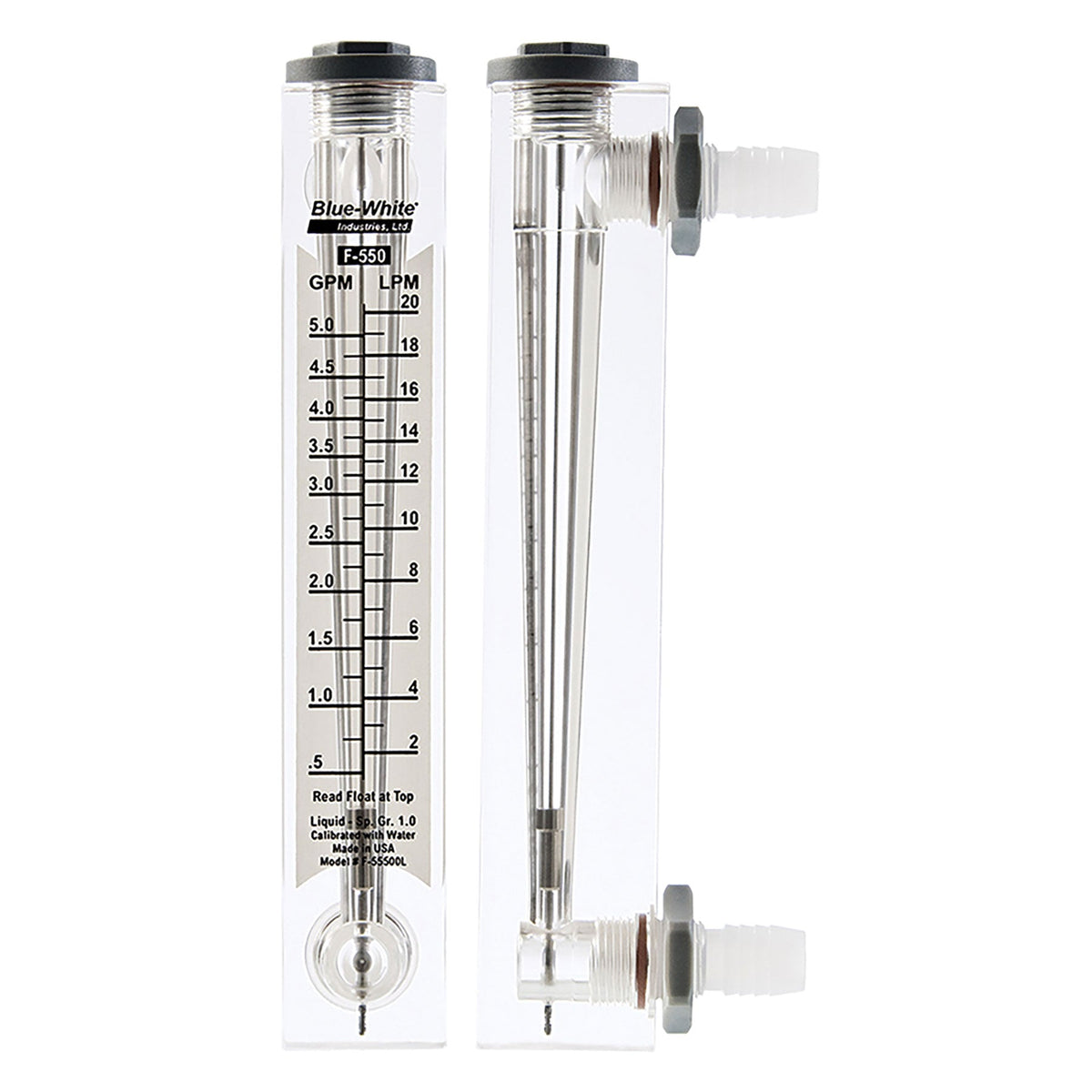

F-550 panel-mount-style flow meter has a solid, one-piece machined acrylic body that is annealed for added strength and durability. The F-550 has a clear, glass-like finish and features a white reflective background at the rear of the meter body. This background contrasts with the permanently imprinted scale for an easy meter reading. The available flow range is 0.025 to 20 GPM, and the maximum working pressure is 250 psig.
Features:
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Bulkhead nuts attach directly to inside panel.

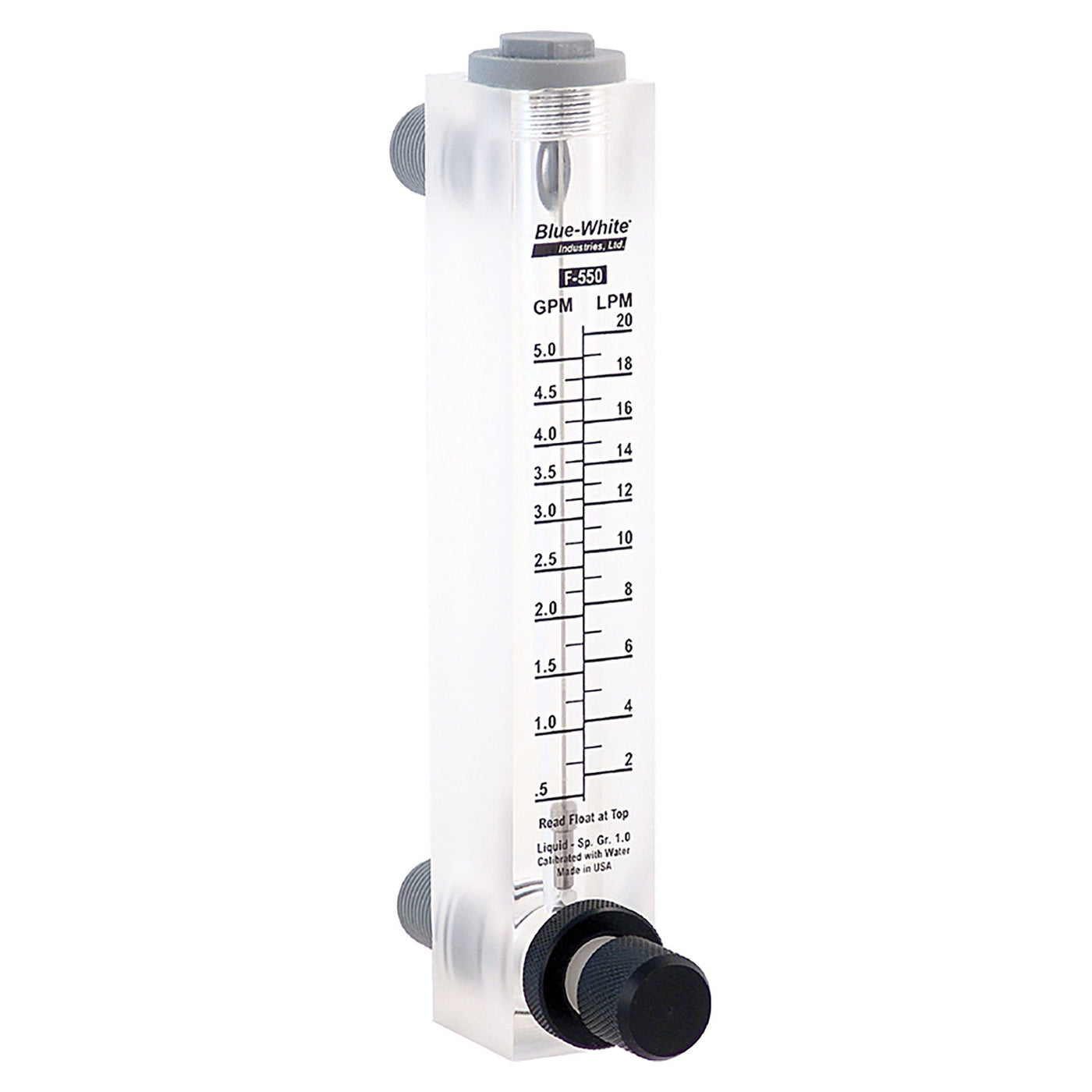

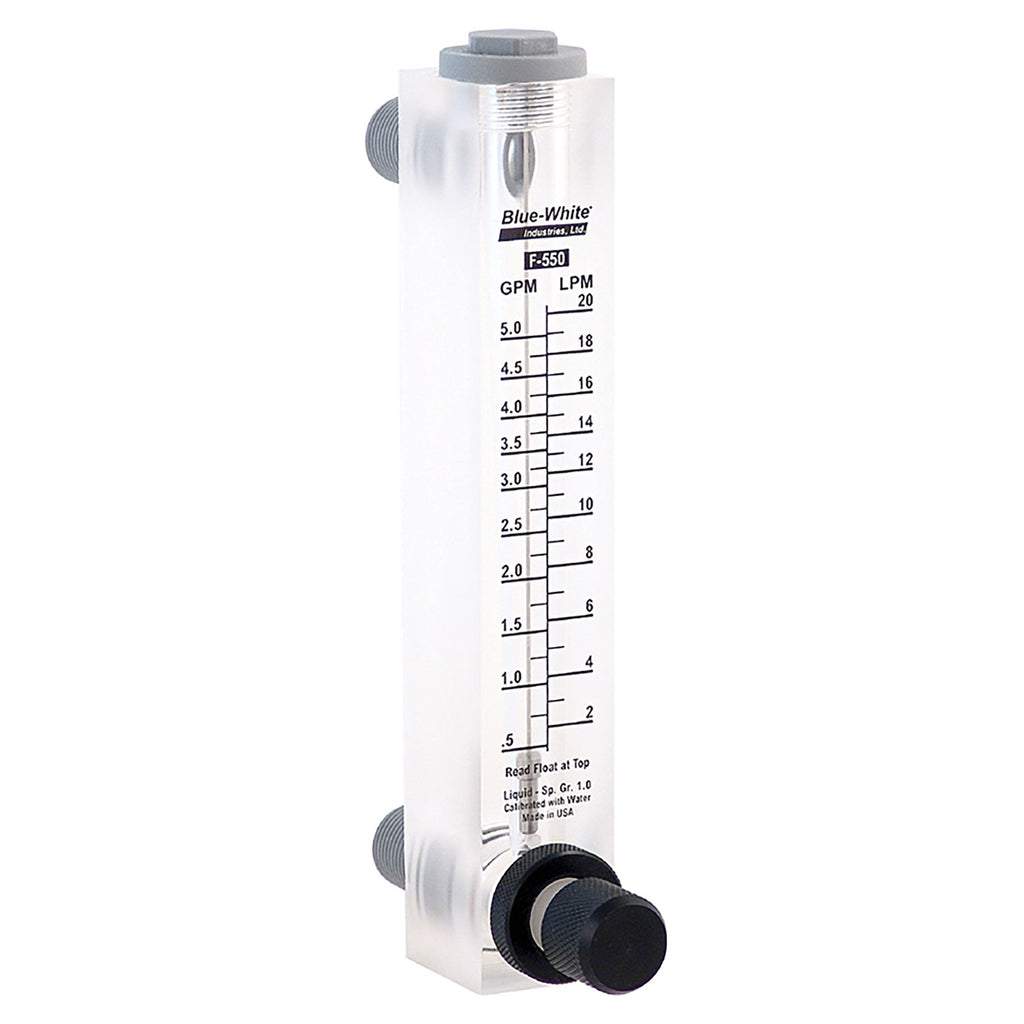

- Optional adjustable flow control: needle-type adjustment valve.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless, or PTFE floats and float guides.
Specifications:
- Max. Working Pressure: 250 psig at 70 degrees F
- Max. Fluid Temperature: 200 degrees F at 0 PSI
- Full Scale Accuracy: +/- 5 percent
- Meter Body Material: Machined Acrylic
- Adapter Material: Polypropylene
- Guide Rod Material: 316 SS
- O-ring Material: FKM
- Approx. Shipping Weight: 2 lb.
