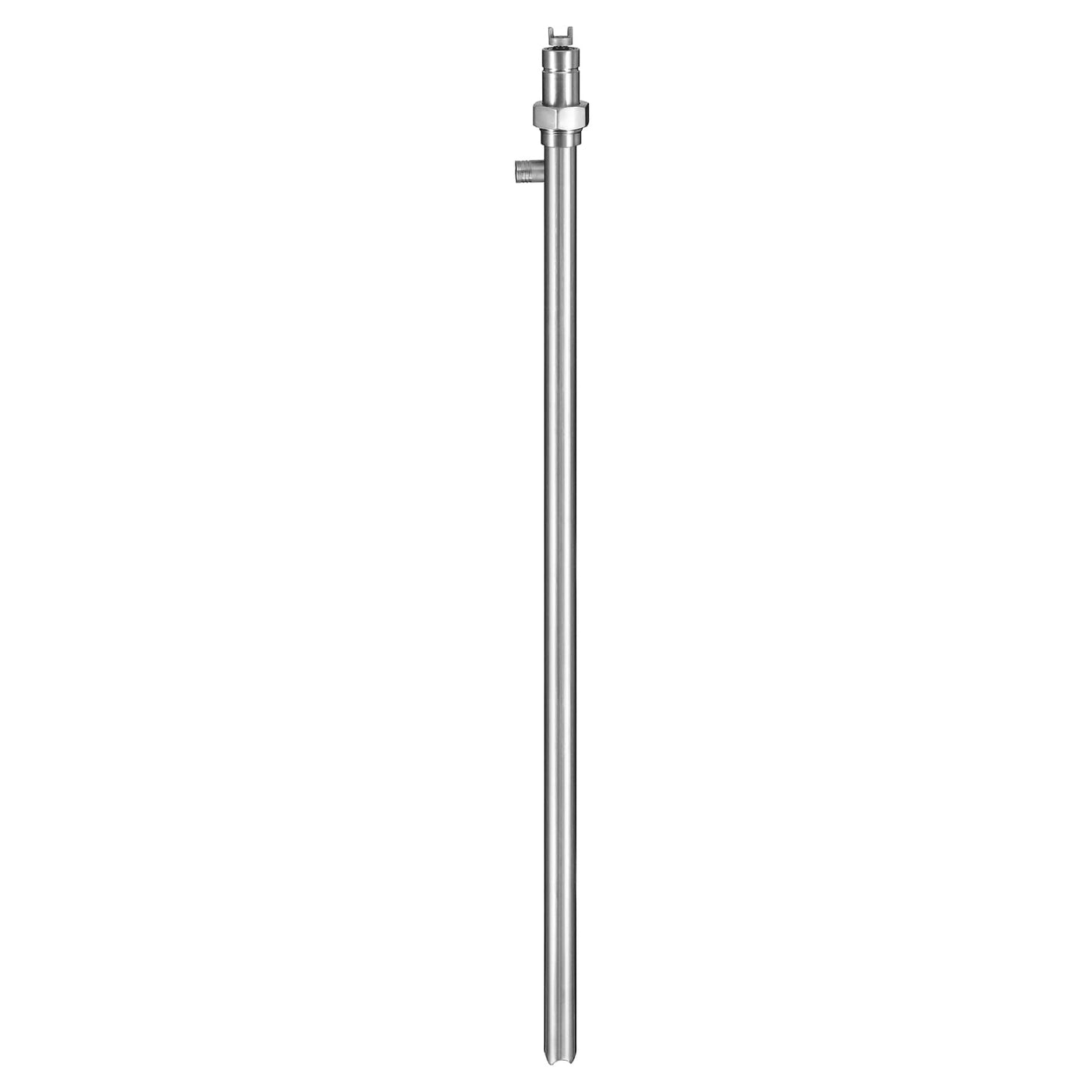

TT Series 316 Stainless Steel PTFE FDA-Compliant Drum Pump Tube, 40 in. Length

Finish ThompsonSKU: DTTU007

Price:
Sale price$1,360.80
Stock:
Re-stocking soon
Lead Time: 8 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

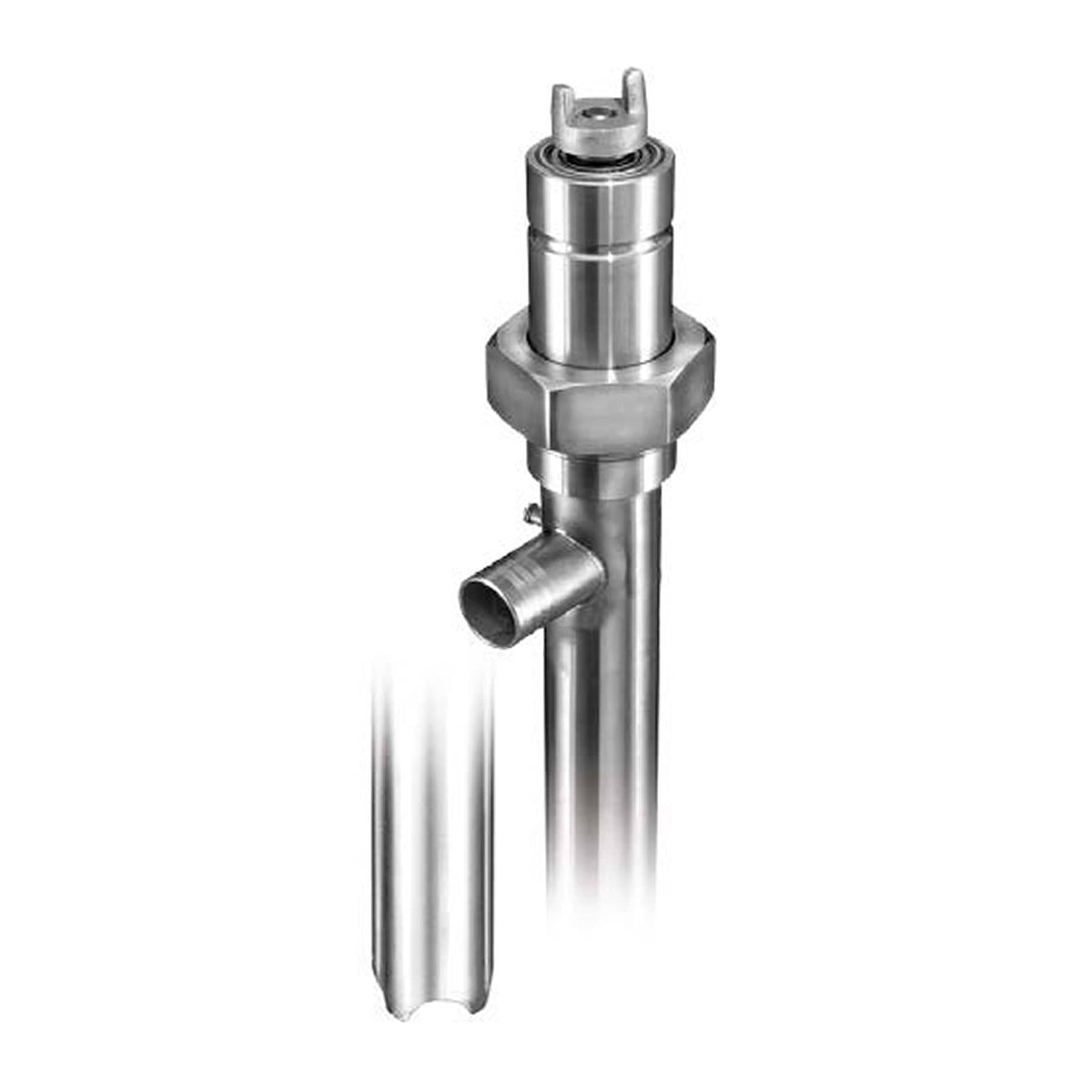

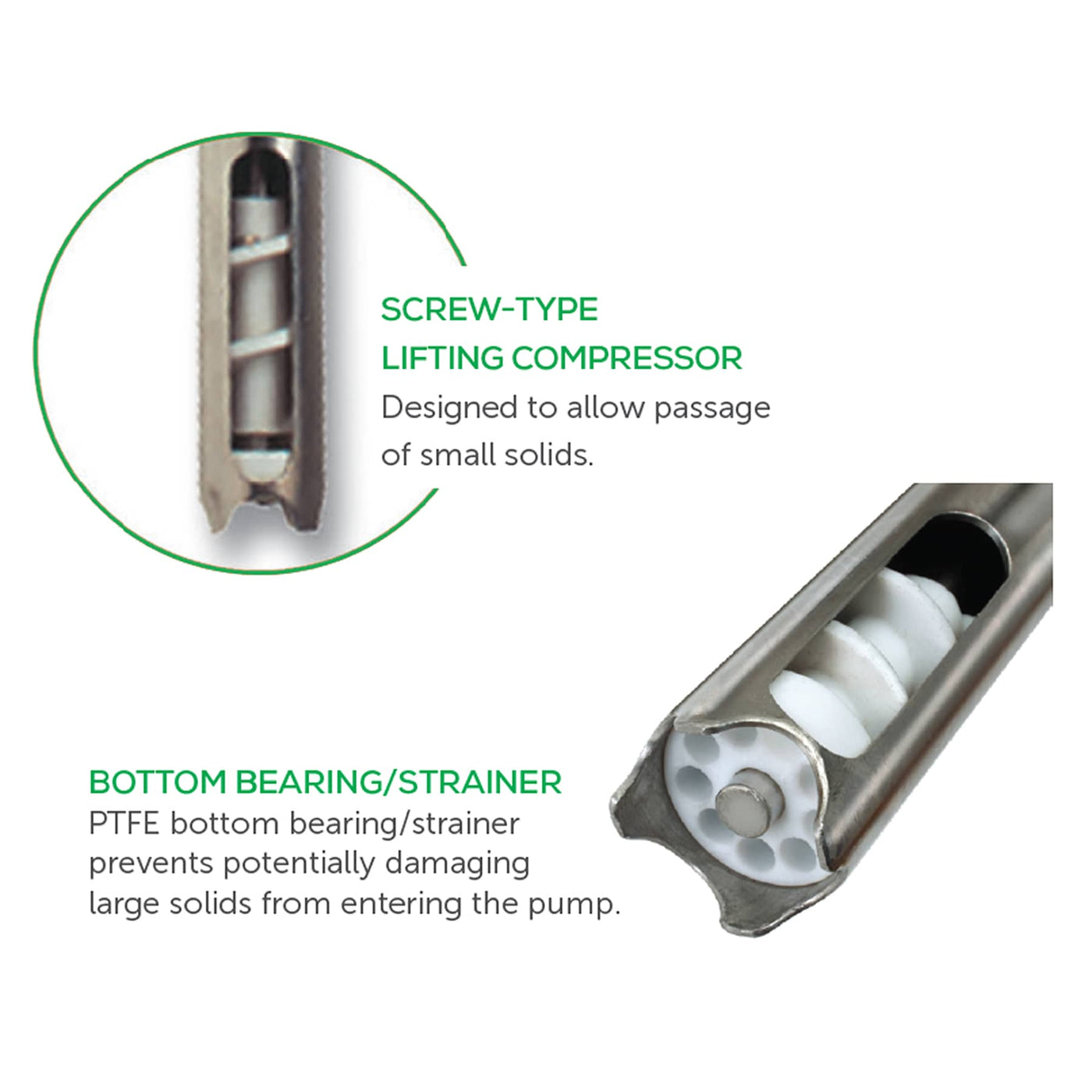

The Finish Thompson TT Series is a is a sealed, medium viscosity/flow drum pump. Sealed pump with PTFE screw-type lifting compressors. Ideal for liquids containing small particulate or solvents. Model STTS is constructed of FDA-compliant materials.

Specifications:

  • Maximum flow*: up to 16 gpm (61 lpm)
  • Maximum head*: up to 30 ft (9 m)
  • Maximum temperature: 150 degrees F (66 degrees C)
  • Maximum specific gravity: 1.8
  • Maximum viscosity: up to 500 cP with electric motor up to 2,000 cP with air motor
  • 1-1/2 in (3.8 cm) tube diameter
  • 1 in (2.5 cm) discharge

Applications:

  • Food Products
  • Inks
  • Paints
  • Solvents
  • Sanitary
  • Sodium
  • Hypochlorite

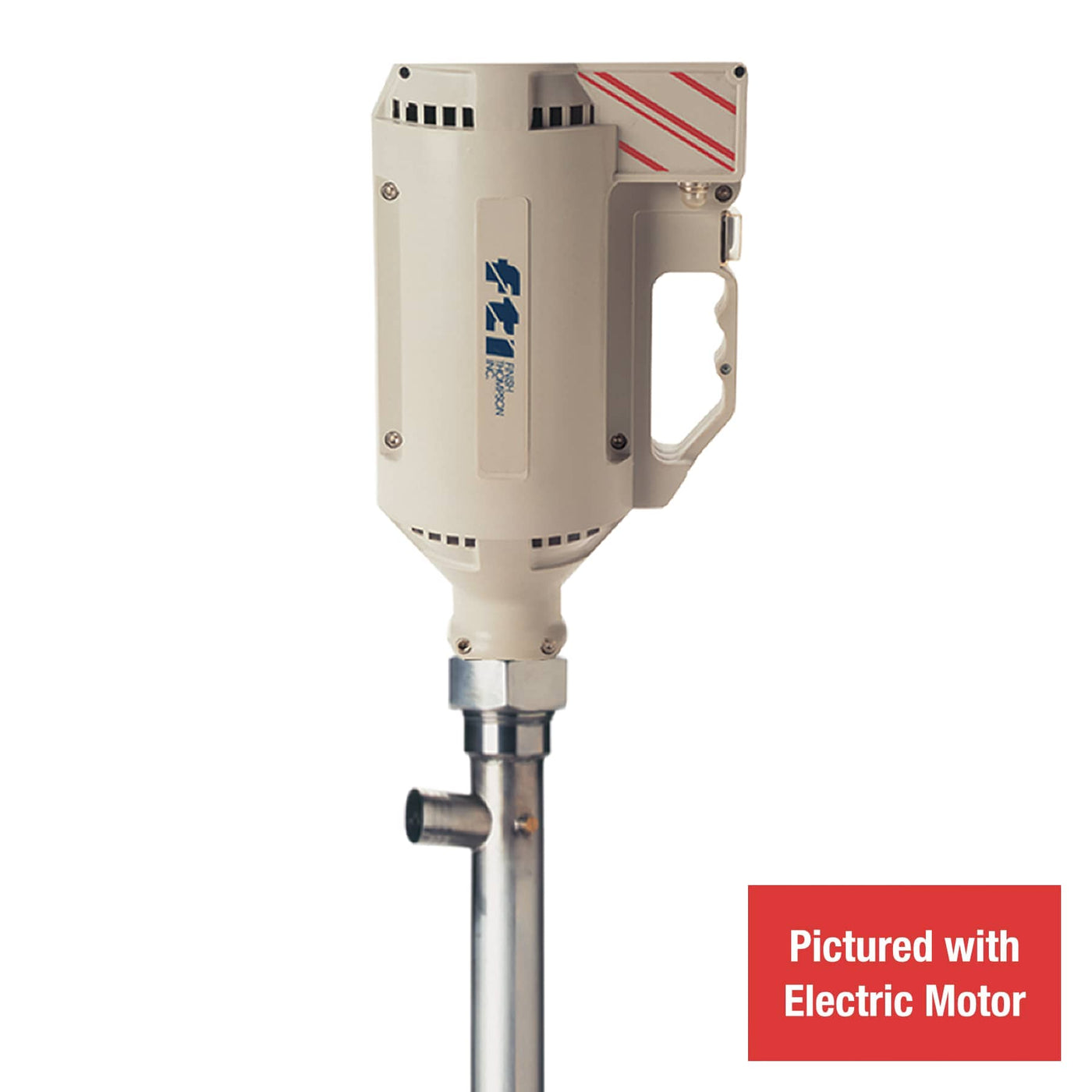

Compatible Motors:

  • TEFC: M7TV, M8TV
  • EXP: M7XV, M8XV

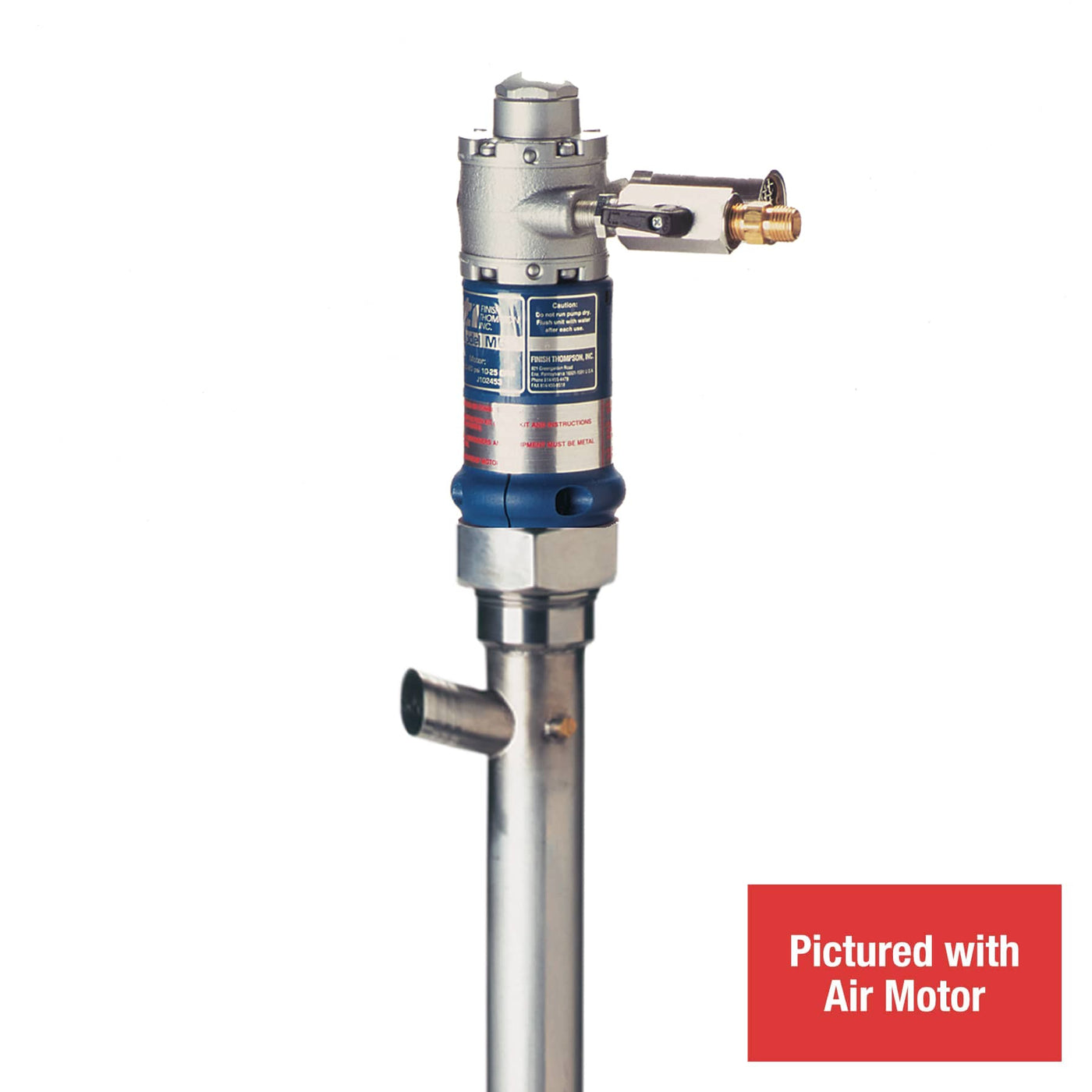

  • Air: M6, M6X

When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.

All testing performed with water at 68oF (20oC). Actual performance can vary by +/- 10 percent. Actual performance will decrease with increased fluid viscosity and specific gravity.
