Liquid Level Controller Diaphragm Pump Accessories

FTI AirSKU: 109832

Details:
Liquid Level Control, Polypropylene Float
Material: Polypropylene
Price:
Sale price$932.00
Status: Special Order Item
Lead Time: 15 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

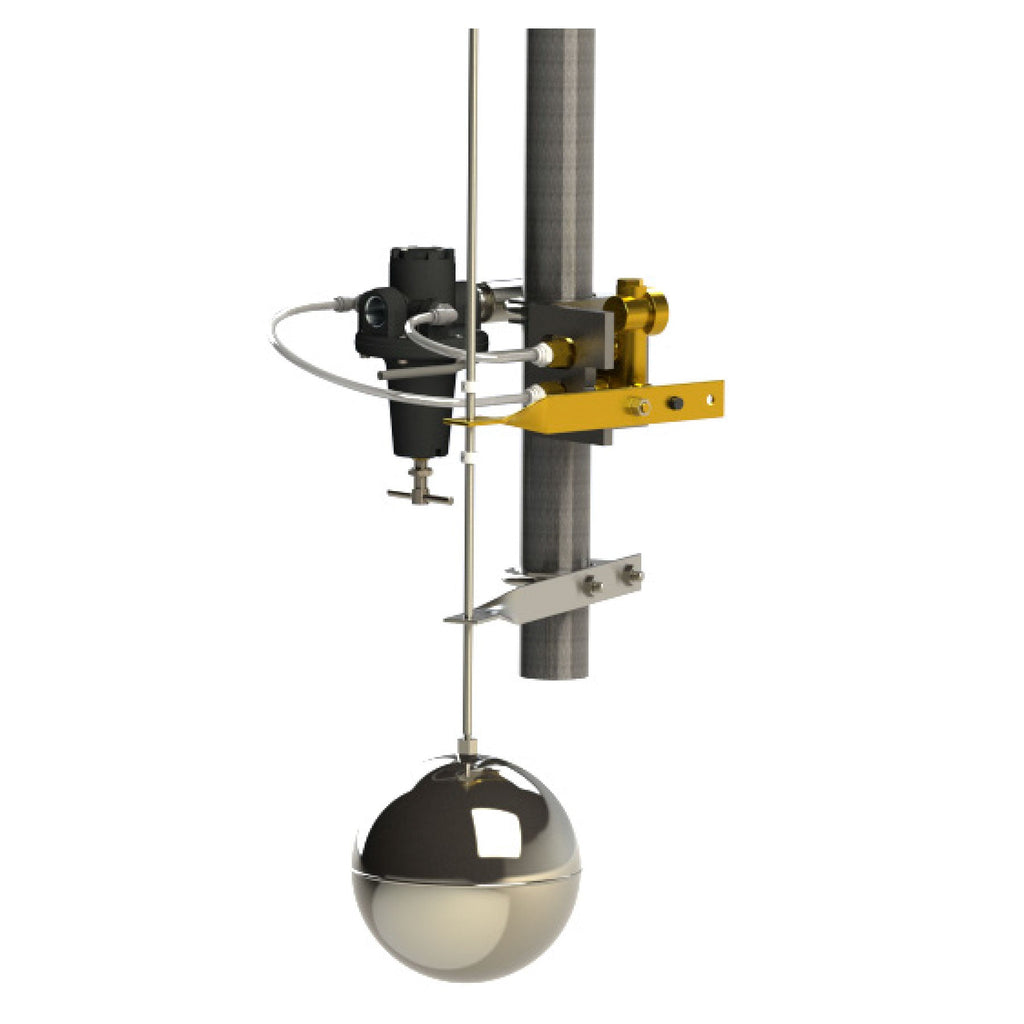

The FTI Liquid Level Control is a pneumatic/mechanical device that will automatically turn the pump on and off as the liquid level changes.

Features:

  • Completely pneumatic/mechanical operation.
  • Automatic operation after initial set up.
  • Float level controls on/off of air supply to pump.
  • Easy set up for either high level on/low level off or low level on/high level off.
  • Out of the box capable to control liquid level operating range from a couple inches to 6 feet. Additional guide rods available to extend range to 10 feet.
  • Air flow through valve up to 125 CFM.
  • Max inlet air pressure 120 PSI (8.3 BAR). Observe pump limits if unregulated air goes from level control to pump.
  • Recommended minimum 20 PSI (1.4 BAR) inlet air to unit.
  • Device air outlet must connect to pump or device that creates at least 5 PSI (0.4 BAR) back pressure for unit to operate properly.
  • All 304 stainless steel or polypropylene wetted parts.
  • Mounts to standard 1-1/2 in. pipe.
