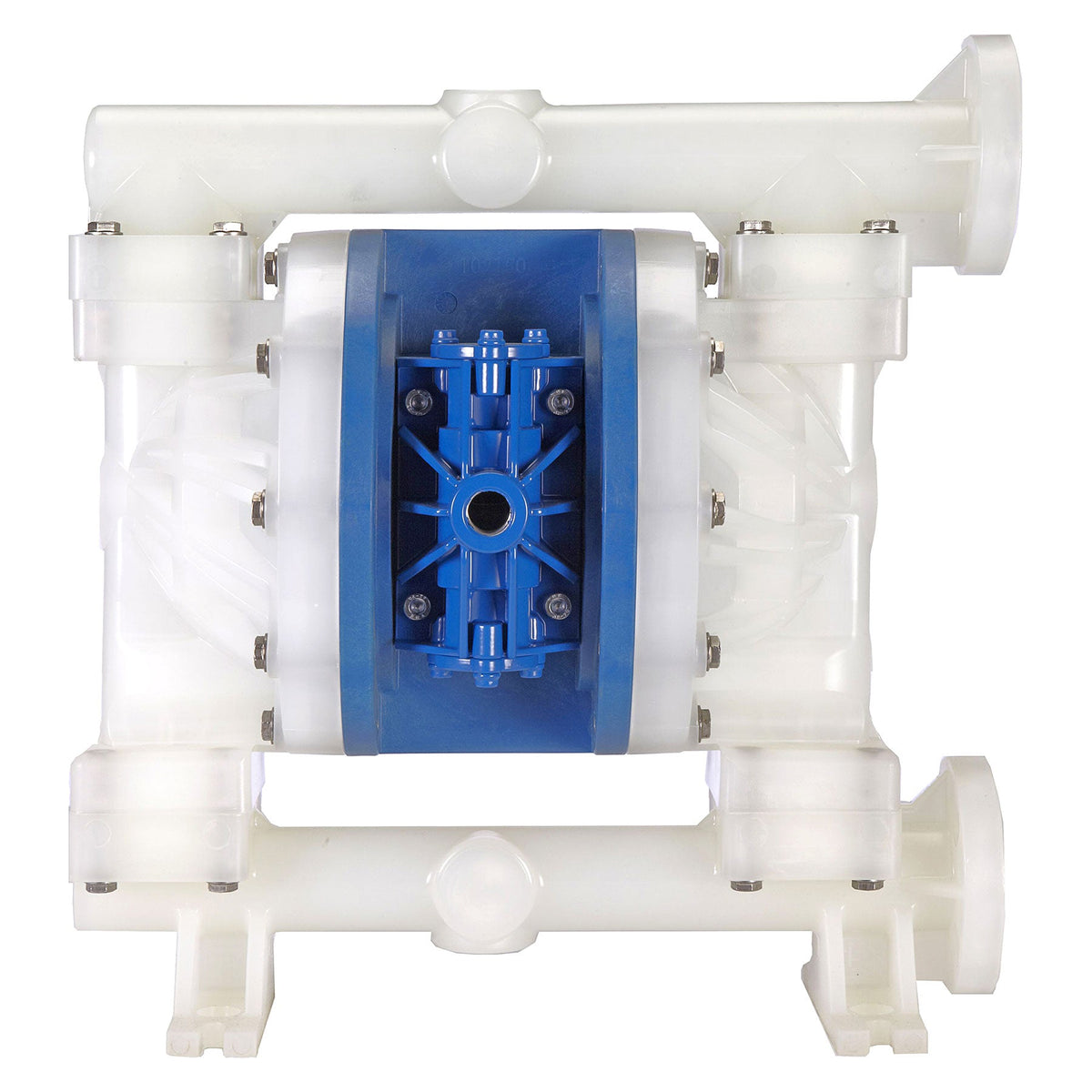

Model FT10 Polypropylene 1 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT10P-PP-RRPR-F1

Details:
1 in. FT10 Polypropylene Non-Metallic Diaphragm Pump Santoprene
Diaphragm: Santoprene
Price:
Sale price$1,080.16
Stock:
Re-stocking soon
Lead Time: 12 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

FTI Air Model FT10 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Polypropylene
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: Polypropylene
  • O-ring Materials: Buna-N, Santoprene, FEP/FKM
Wetted Non-wetted Diaphragm Valve/Ball
#1 Polypropylene Polypropylene
Santoprene Santoprene
#2 Polypropylene Polypropylene PTFE/ Santoprene PTFE
#3 Polypropylene Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Polypropylene Santoprene ANSI/DIN/IS degrees Flange FT10P-PP-RRPR-F1
#2 Polypropylene FEP/FKM ANSI/DIN/IS degrees Flange FT10P-PP-2TPC-F1
#3 Polypropylene Buna-N ANSI/DIN/IS degrees Flange FT10P-PP-EEPB-F1


* Santoprene is a registered tradename of Exxon Mobil Corporation
