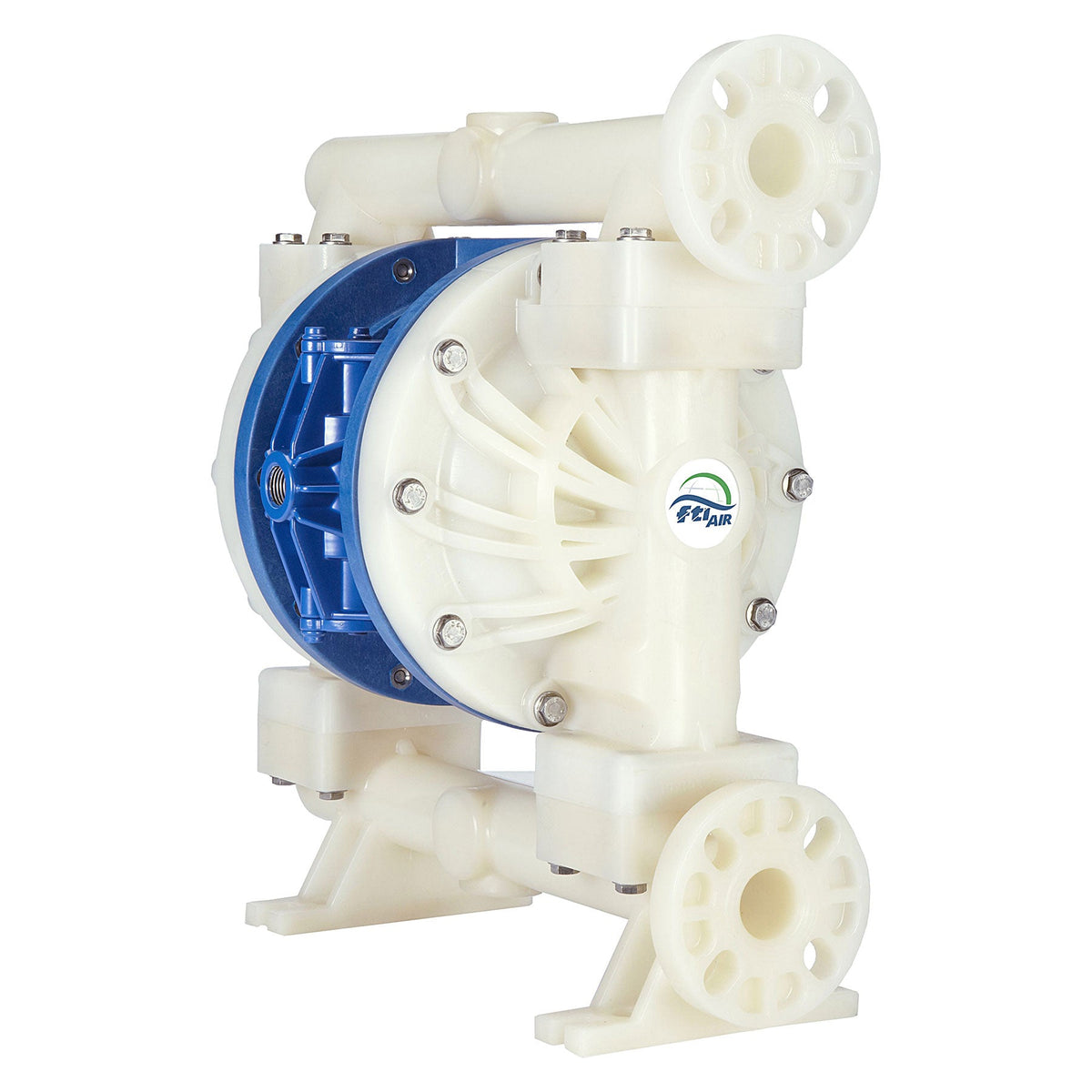

Model FT10 PVDF 1 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT10V-PP-RRVR-F1

Details:
1 in. FT10 PVDF Non-Metallic Diaphragm Pump Santoprene
Diaphragm: Santoprene
Price:
Sale price$2,236.00
Status: Special Order Item
Lead Time: 5 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

FTI Air Model FT10 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: PVDF
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: PVDF
  • O-ring Materials: Buna-N, Santoprene, FEP/FKM


Wetted Non-wetted Diaphragm Valve/Ball
#1 PVDF Polypropylene
Santoprene
Santoprene
#2 PVDF Polypropylene PTFE/ Santoprene PTFE
#3 PVDF Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 PVDF Santoprene
ANSI/DIN/IS degrees Flange FT10V-PP-RRVR-F1
#2 PVDF FEP/FKM ANSI/DIN/IS degrees Flange FT10V-PP-2TVC-F1
#3 PVDF Buna-N ANSI/DIN/IS degrees Flange FT10V-PP-EEVB-F1


* Santoprene is a registered tradename of Exxon Mobil Corporation
