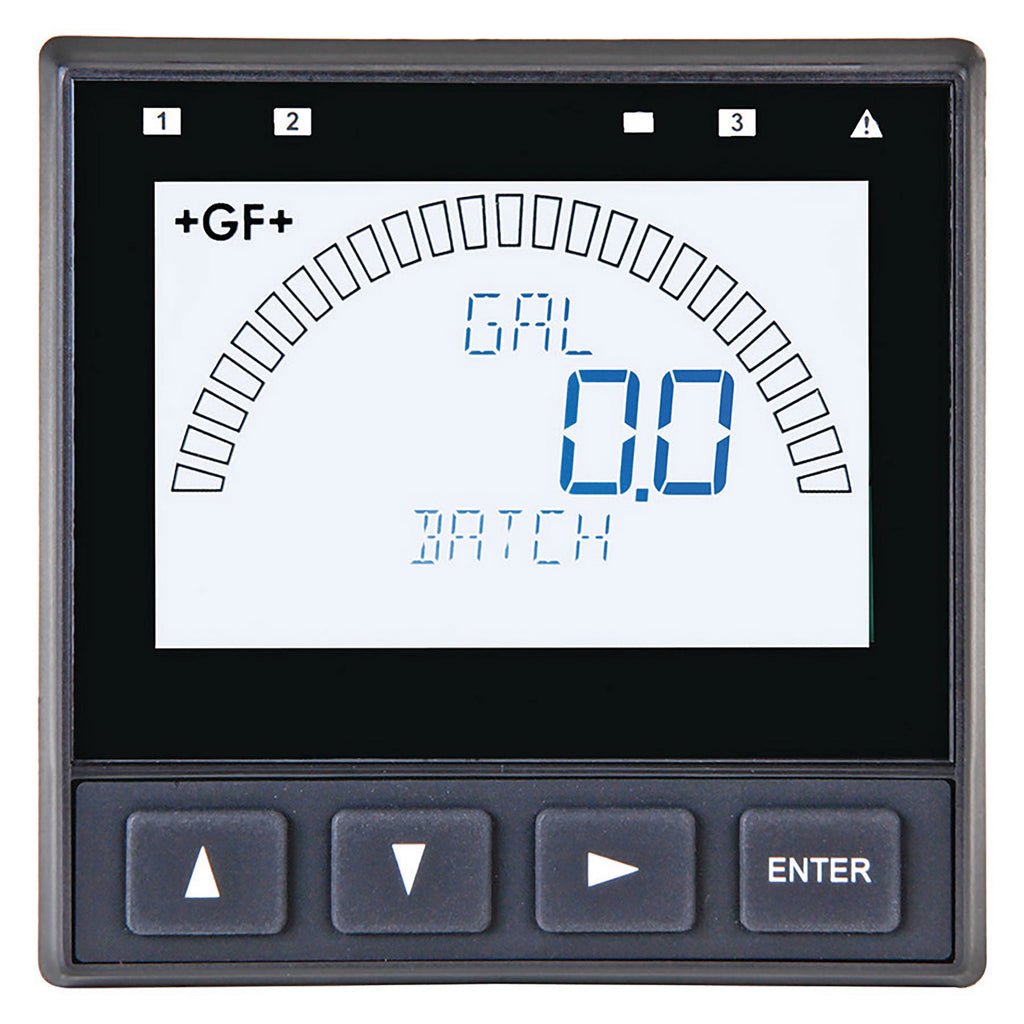

9900-1BC Batch Controller System

The Signet 9900-1BC Batch Controller system provides control capability and process fine-tuning in a familiar package. The programming interface uses a four button keypad and an intuitive menu for adjusting a batching system to the best performance possible. Choose between simple or advanced modes. In simple mode, relay outputs can be used for batching, external counter, missing signal alarm and 4 to 20 mA output can be used to indicate batch status. In advanced mode relays can also be used for end of batch pulse, two-stage shutdown, overrun alarm, high flow detection, total volume or source volume alarm.

Designed for a variety of batch applications, the 9900-1BC can save up to 10 batch sizes for batching or blending a variety of liquid volumes. Customize batch names for easy distinction between batches. One K-Factor can be used for all batches, or use a different K-Factor for each batch for when different liquids are batched. User can choose to be prompted prior to starting a batch with a Yes/No or with a password to prevent inadvertently starting a batch.

The 9900-1BC operates on 10.8 to 35.2 VDC, regulated. Connect a remote start or stop switch for remote batch control. Use the end-of-batch pulse to trigger the next step in the process.

Features:

• Store up to 10 batch sizes for batching or blending a variety of liquid volumes

• Customize 10 batch names for easy distinction between batches

• Modular Design - Can be purchased as a complete system or add a Batch Module and Relay Module to an existing 9900 Transmitter (Generation II)

• Remote control wiring with start, stop & resume terminals for remote batch control

• 3 programmable relays, one open collector, two dry-contact relays

• Two-stage control to prevent overfilling or to minimize water hammer

• Confirmation START/RESUME – Can prompt user prior to starting each batch with a Yes/No or password to prevent inadvertently starting a batch

• Enter 10 different K-Factors - one per batch for when different liquids are batched


Applications:

• Batch Process

• Filter Backwash Initiation

• Chemical Addition

• Canning and Bottling

• Tank Filling

• Bulk Storage Transfer

• Chemical Processing

• Food and Beverage

• Life Sciences

• Water Treatment
