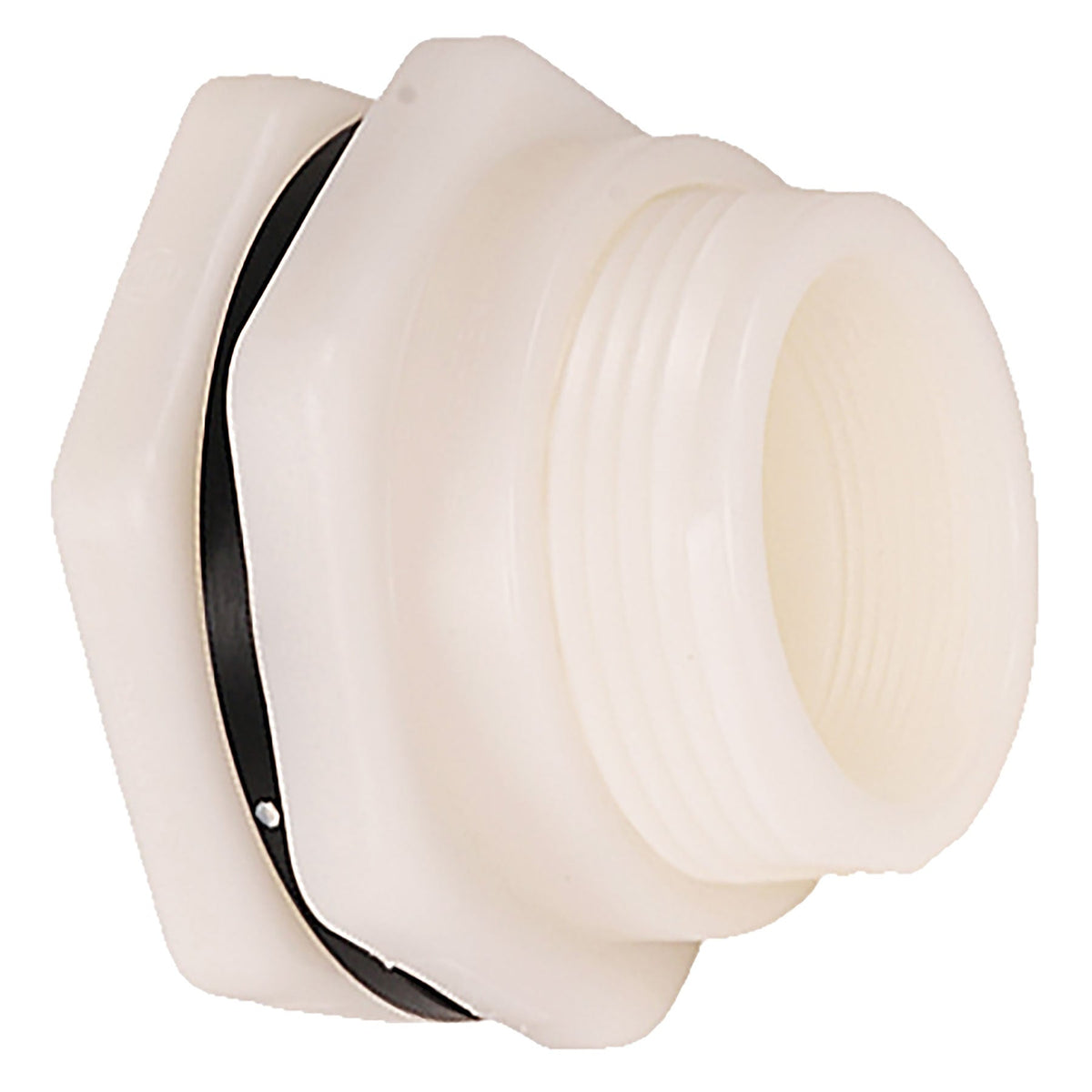

Polypropylene Bulkhead, BFAS Series, Short Shaft, 1/2 in. to 4 in. Sizes

HaywardSKU: S3495-E

Details:
1/2 in. EPDM Thr x Thr PP Bulkhead
Size: 1/2 in.
Gasket: EPDM
Connection: Thr x Thr
Price:
Sale price$45.14
Status: Special Order Item
Lead Time: 14 days

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA.

1/2" - 4"

Features

  • Short Pattern/Barrel in PVC, CPVC, or PP
  • FPM or EPDM Gasket Seal
  • Rated to 150 PSI
  • Left-Handed Threads
  • Heavy-Duty Buttress Threads to Help Prevent Leaks Under Pressure

Options

  • Ready Flanges for Making Flanged Connections to Tanks

Materials

  • PVC Cell Class 12454 per ASTM D1784
  • CPVC Cell Class 23447 per ASTM D1784
  • PP per ASTM D4101
  • Heavy-Duty FPM & EPDM Gasket Seals

Applications

  • Water & Wastewater Treatment
  • Chemical Processing
  • Food & Beverage
  • Swimming Pools, Aquariums, & Theme Parks
  • Pulp & Paper
  • Marine & Corrosive Environments
  • Metal Finishing & Plating
  • Agriculture & Irrigation
Hayward BFAS PP - Short Shaft - Bulkhead Fitting Specs

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 7.25 6.5 2.08 1.38 1.41
3/4" 10 9.25 2.08 1.63 1.66
1" 11.75 10.7 2.08 1.87 1.91
1-1/4" 16.25 12.19 2 2.63 2.67
1-1/2" 16.25 12.19 2 2.63 2.67
2" 25.75 19.38 2 3.25 3.28
3" 30 25.25 2.12 4.5 4.54
4" 60 55 2.45 5.75 5.78
6" 114 97 3.25 8 8.06
