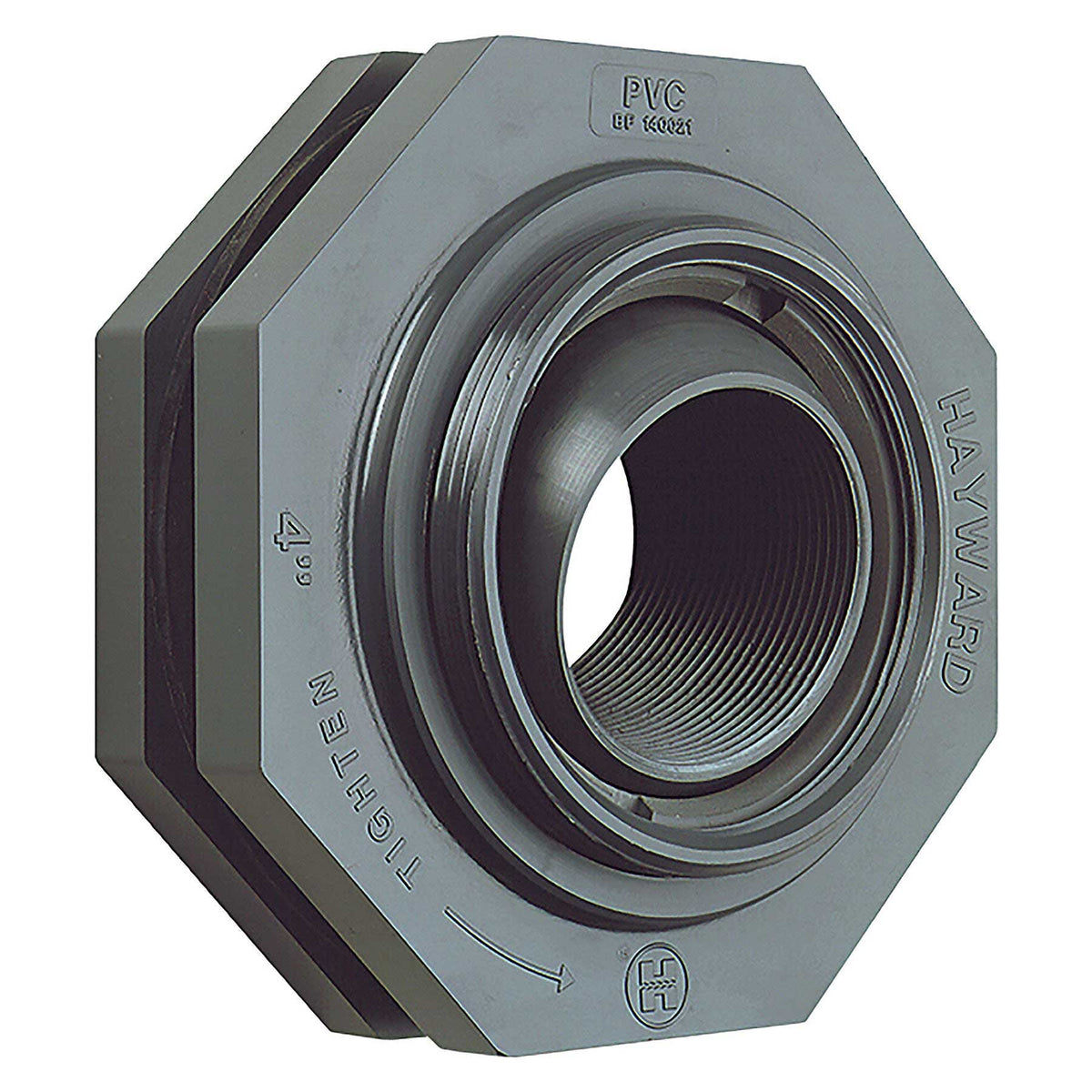

PVC Self-Aligning Bulkhead, 1 in. to 3 in. Sizes

HaywardSKU: 3504

Details:
1 in. PVC Self-Aligning Bulkhead
Size: 1 in.
Price:
Sale price$223.05
Stock:
In stock

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

Available in sizes 1 in., 2 in. and 3 in. PVC with either FPM (sold separately) or EPDM gaskets. Allows for connections to the top of domed tanks, or pipes at an angle up to 27 degrees. Tank adapter has FNPT threaded end connections

Features

  • PVC
  • Enables Easy Piping Connections to Domed Tanks
  • Swivel Ball Connection Corrects for Curved Tanks
  • Enables Straight Pipe Connections up to 27 degrees Degrees of Offset Angle
  • PTFE Ball Seal

Applications

  • Water & Wastewater Treatment
  • Chemical Processing
  • Food & Beverage
  • Swimming Pools, Aquariums, & Theme Parks
  • Pulp & Paper
  • Marine & Corrosive Environments
  • Metal Finishing & Plating
  • Agriculture & Irrigation
Hayward Self-Aligning Bulkhead Fitting Specs

All measurements in inches unless specified

Bulkhead Size Nut Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1" 2" 25.75 19.38 1.50 3.25 3.28
2" 3" 42.50 36.25 1.14 4.50 4.54
3" 4" 90.00 76.81 1.69 5.72 5.78
