PVC, Clear PVC & CPVC, YSH Series Y-Strainer, 1/2 in. to 2 in. Sizes

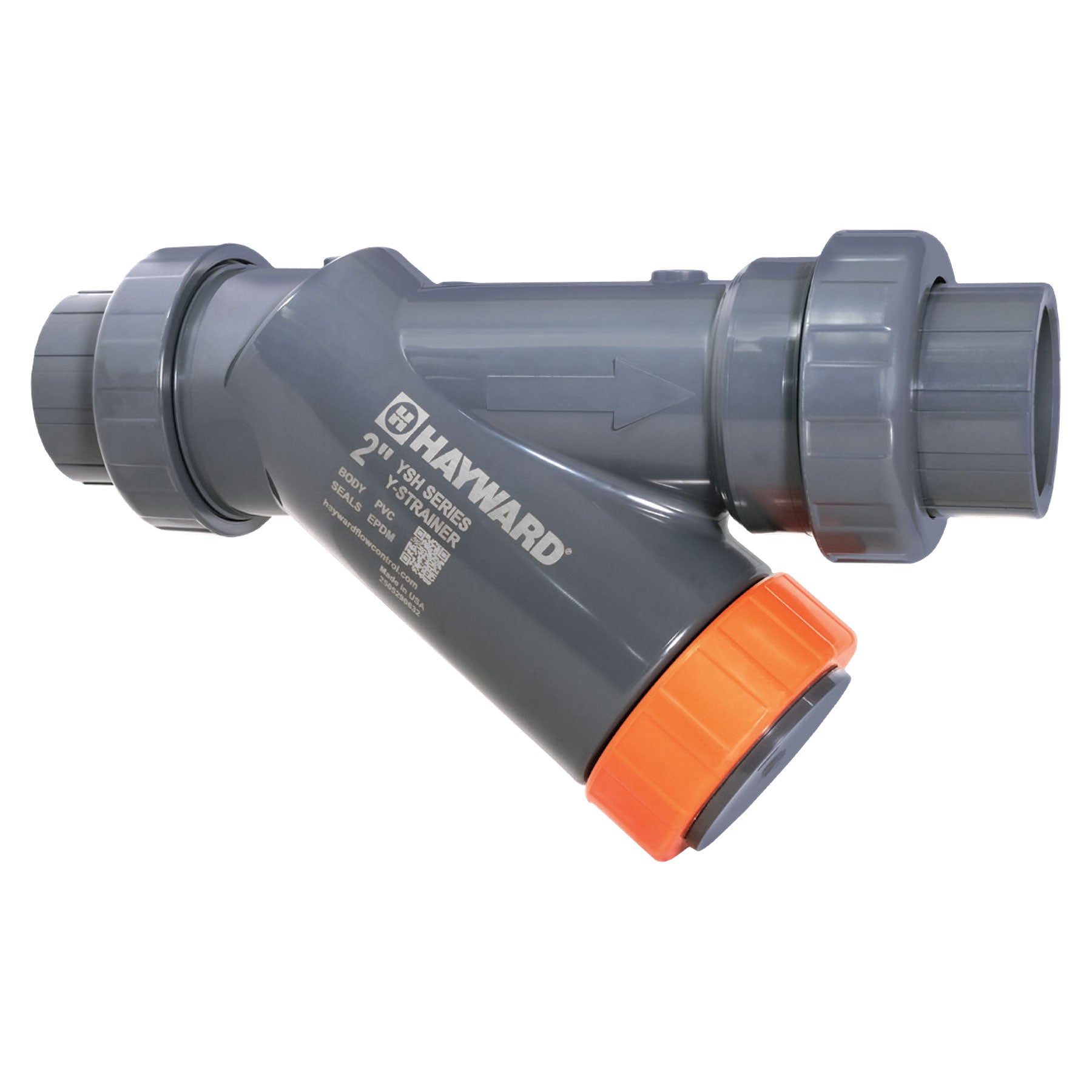

The Hayward YSH Series Y-Strainer is a high-performance thermoplastic strainer engineered for debris removal in demanding industrial, chemical, and aquatic piping systems. Available in PVC, Clear PVC, and CPVC with either EPDM or FPM O-rings, the YSH Series covers sizes 1/2" through 2" and carries a full pressure rating of 150 psi (10 bar) non-shock at 70°F. The one-piece injection molded body eliminates fabrication and welds for consistent structural integrity across every unit.

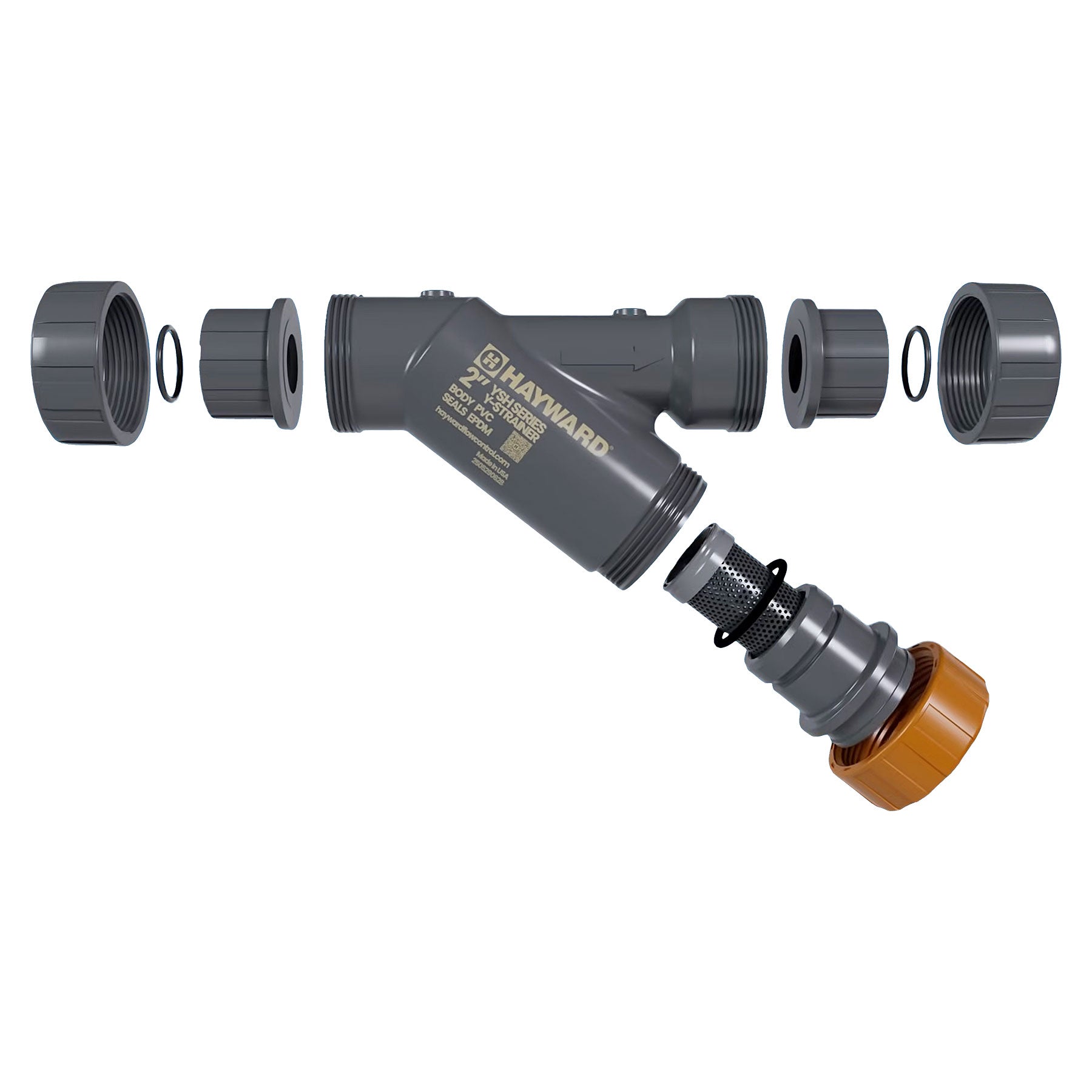

Alsco Industrial offers the YSH Series in True Union end connections with socket or threaded ends and a standard 1/32" perforation screen. The true union design allows the strainer body to be fully removed from the line for cleaning, screen replacement, or service without disturbing adjacent piping, while the optimized barrel angle and increased barrel capacity improve flow performance and straining capacity.

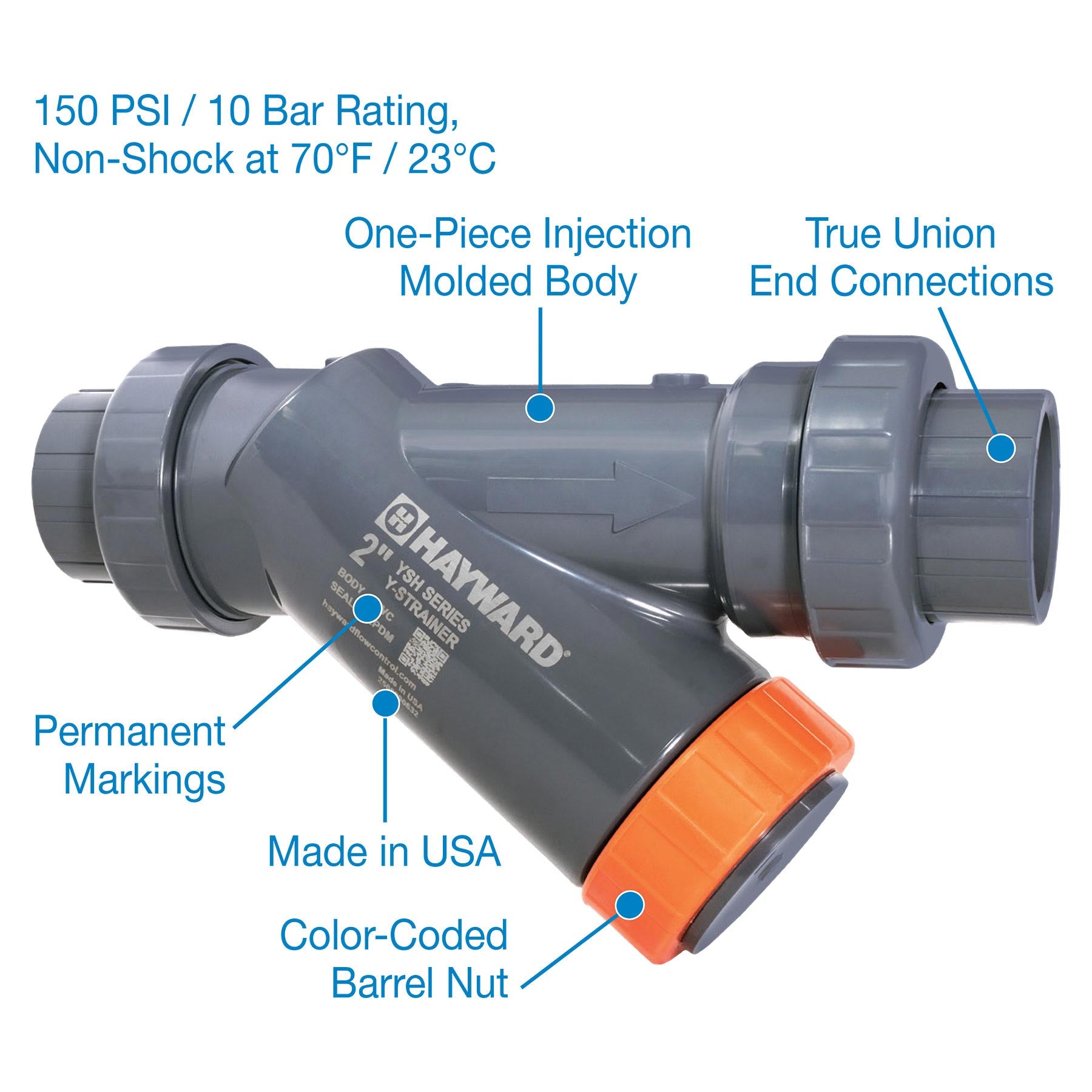

Key Features:

• One-piece injection molded PVC, Clear PVC, or CPVC body, no fabrication or welds
• True union socket or threaded end connections for in-line service without disturbing adjacent piping
• Optimized barrel angle and increased barrel capacity for higher flow capacity (Cv) and lower pressure drop

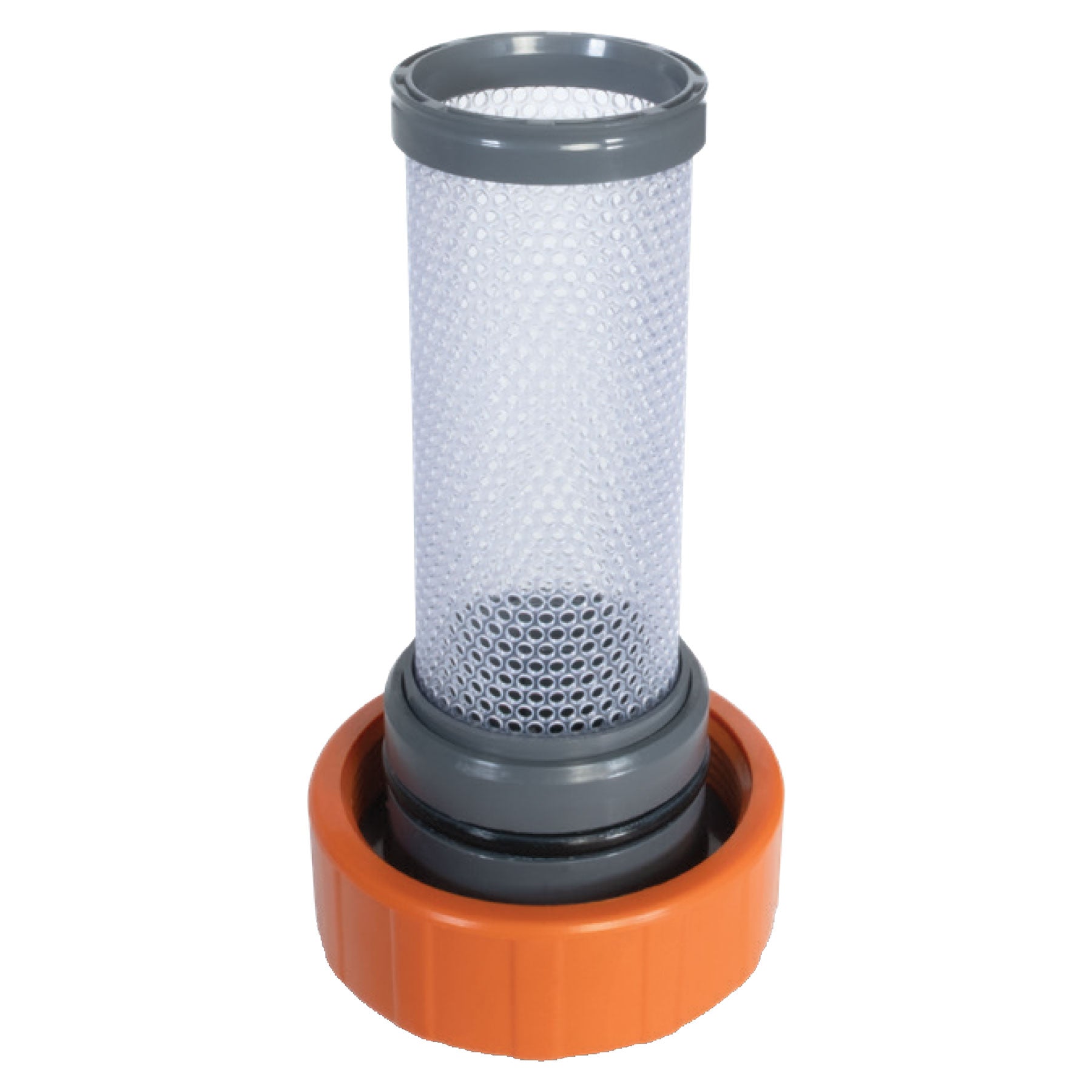

• Standard 1/32" perforation screen, one-piece thermoplastic construction, snaps into retainer for easy removal and cleaning
• EPDM or FPM O-ring seals

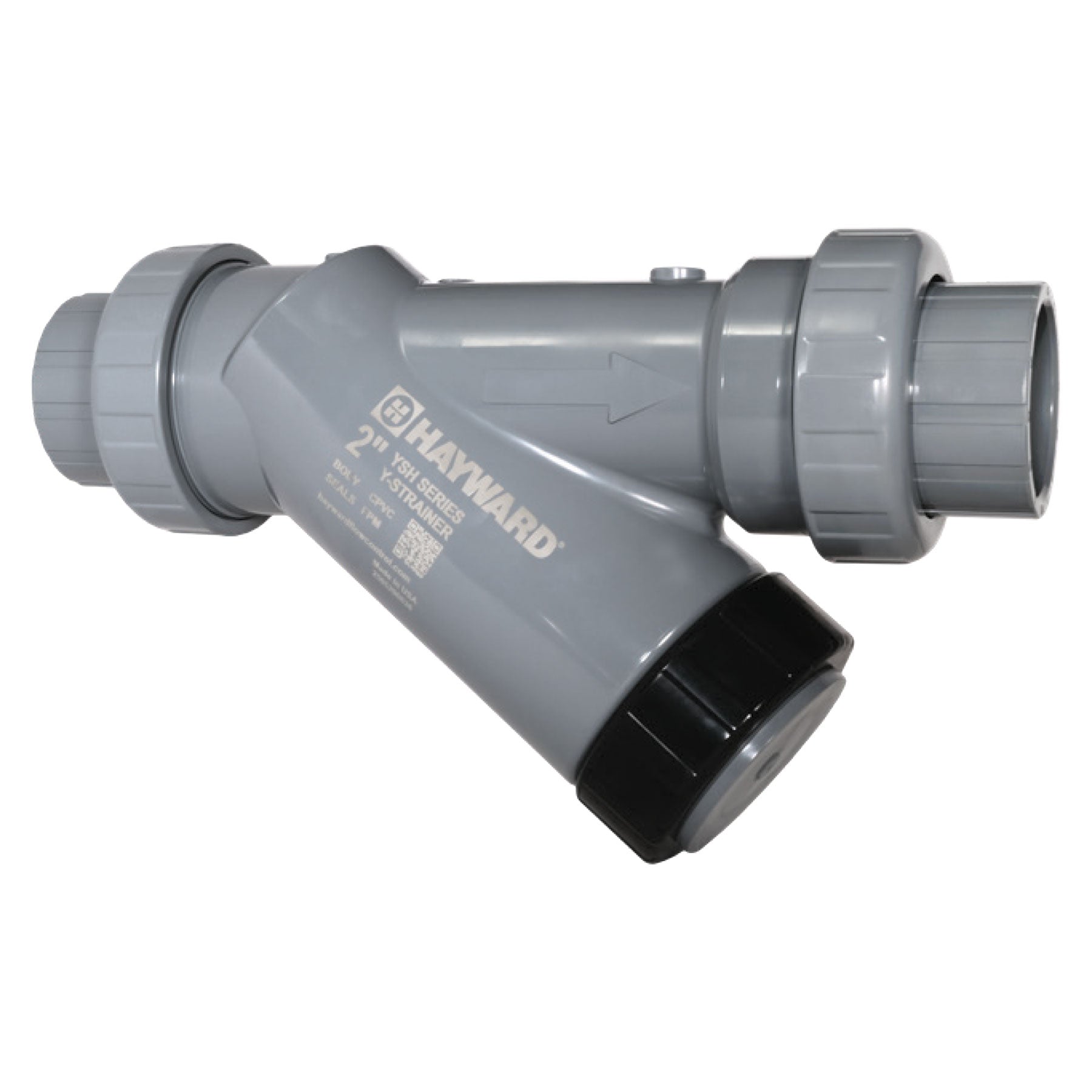

• Color-coded barrel nut, orange for PVC and Clear PVC, black for CPVC, for quick material identification

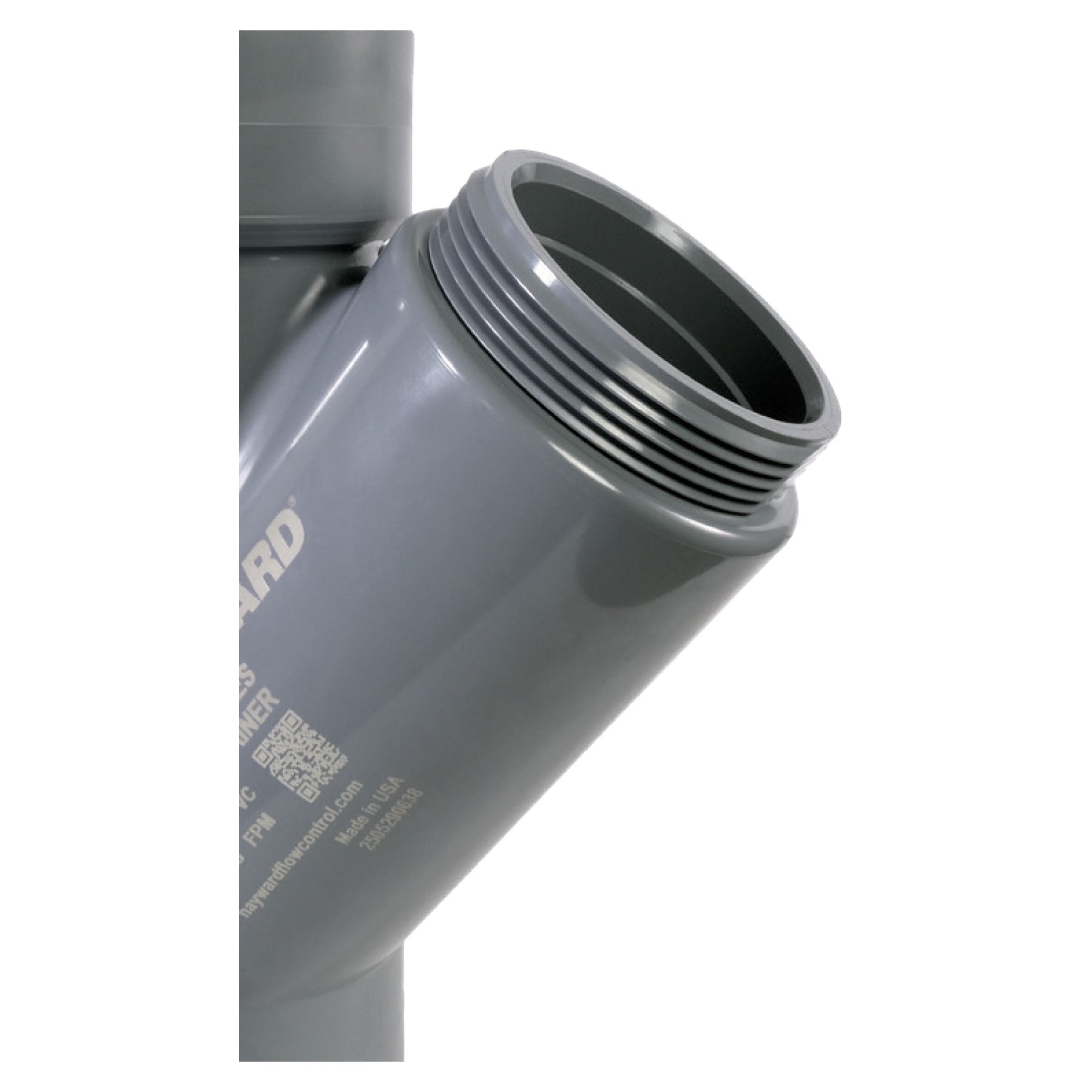

• Buttress barrel threads keep the barrel nut engaged and release pressure before it can be fully removed

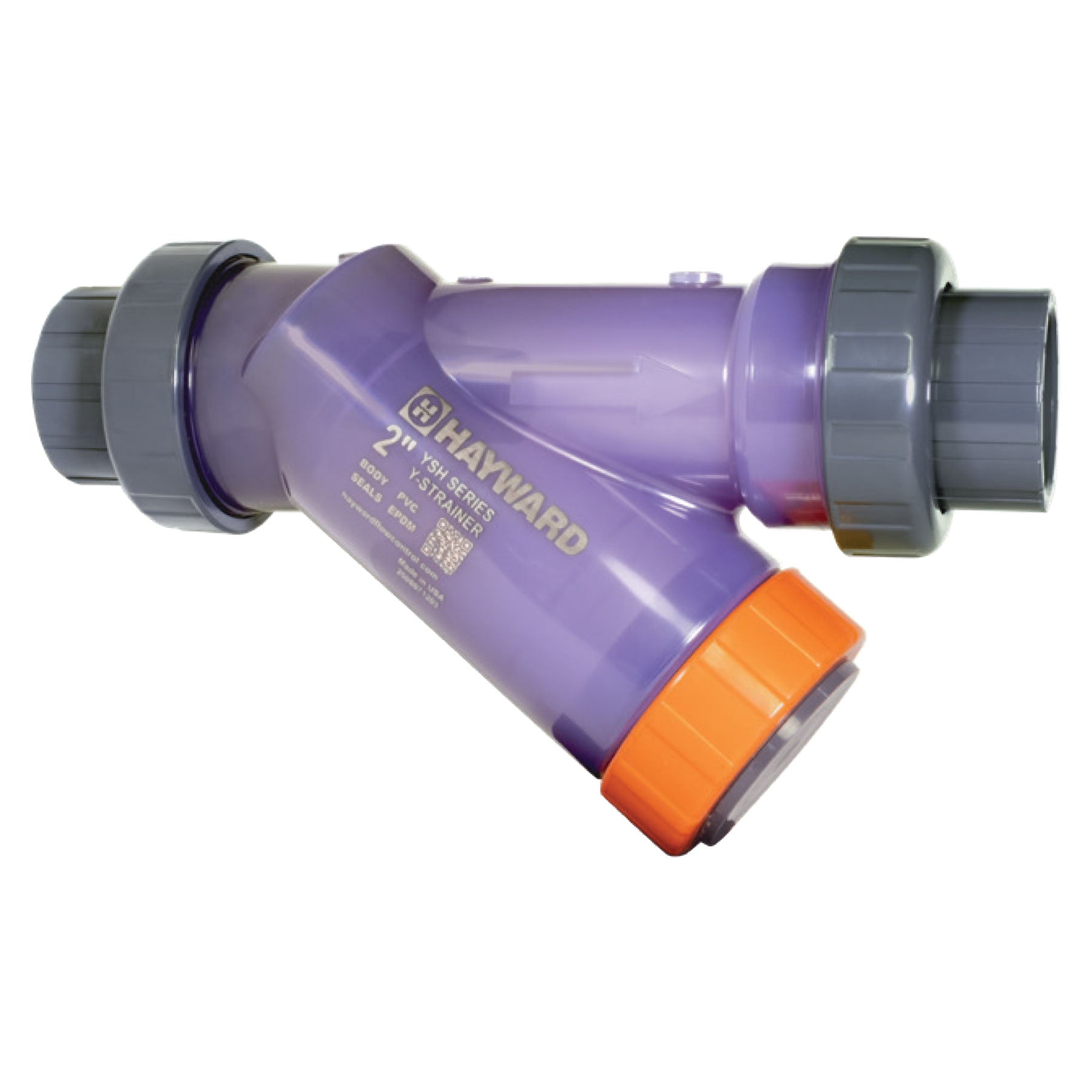

• Clear PVC bodies include a clear strainer element for visual inspection of debris buildup
• Pressure rated to 150 psi non-shock at 70°F; PVC and Clear PVC rated to 140°F, CPVC rated to 190°F
• Made in the USA in an ISO 9001:2015 certified facility, compliant with the Build America, Buy America Act
• Backed by Hayward Flow Control's global three-year warranty

Additional Options Available:

• Alternate screen perforation sizes: 1/16", 1/8", or 3/16"
• Alternate screen materials, including 316 stainless steel, Monel, Hastelloy C, or titanium, in 20 to 100 mesh for specific chemical compatibility needs

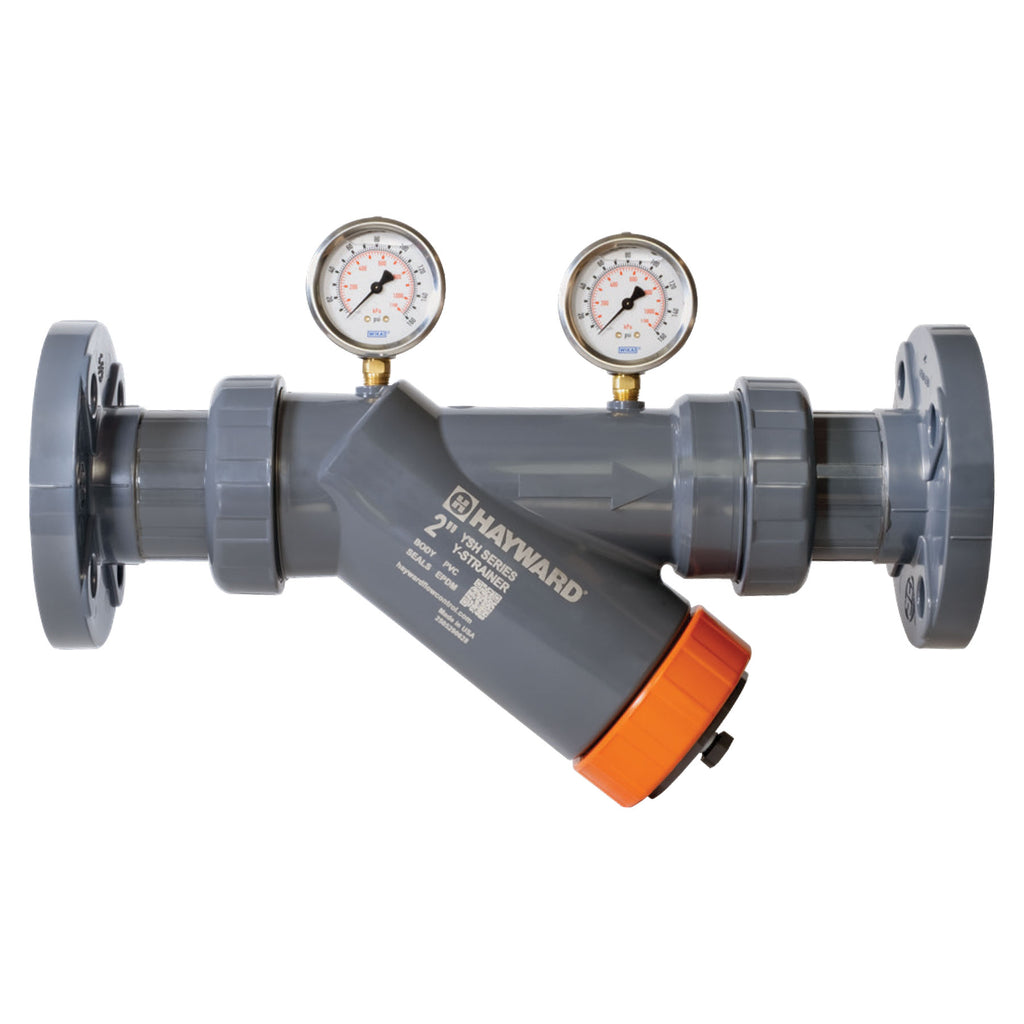

• True union flanged end connections
• Integral socket or threaded end connections

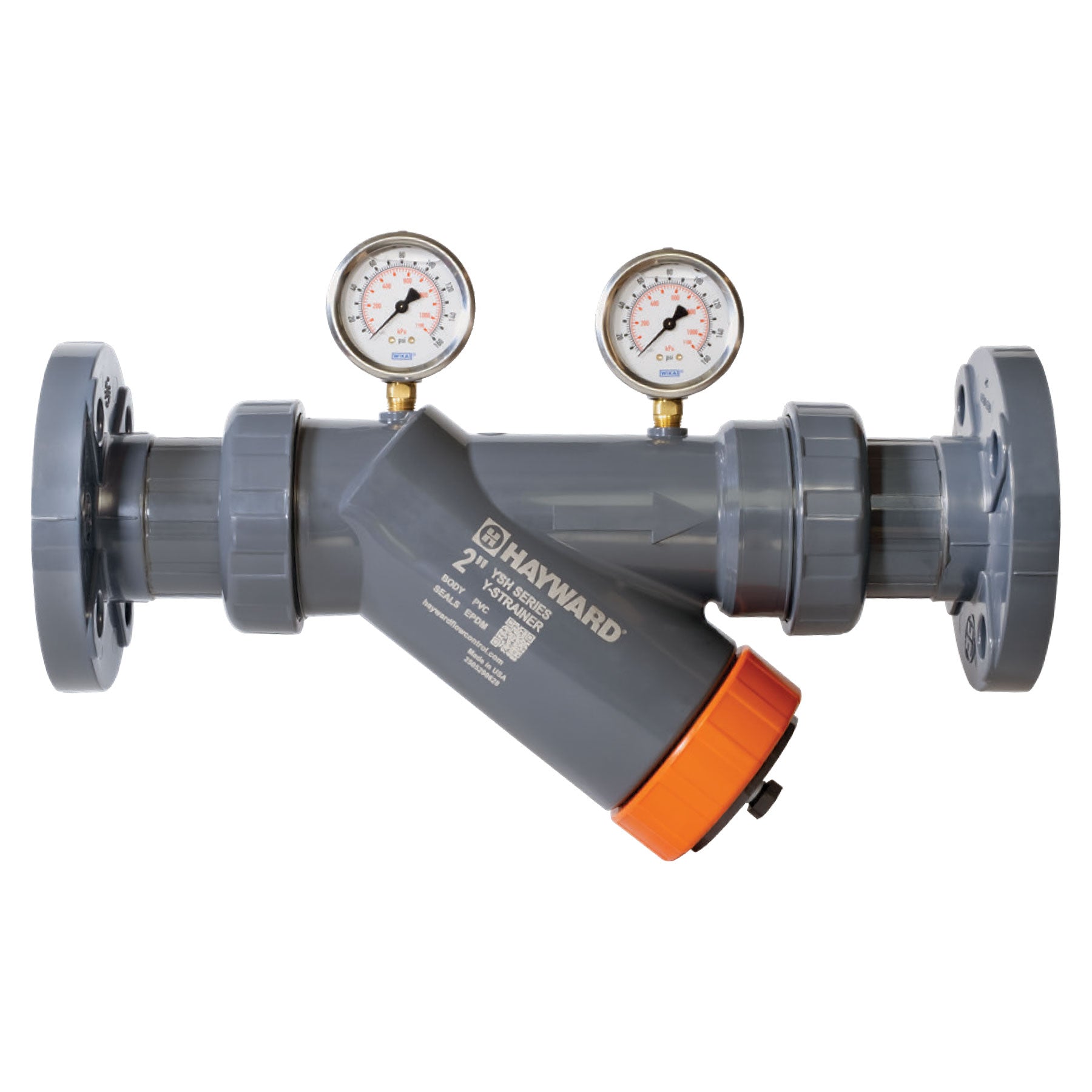

• Drilled and tapped boss ports for pressure gauges, sizes 1" and larger
• Optional blow-out drain port for easier cleanout

Need a different screen size, material, or end connection for your application? Contact Alsco Industrial at 888-941-3030 or sales@alscoind.com and we'll help you configure the right YSH Series strainer for the job.
