Description
Applications:

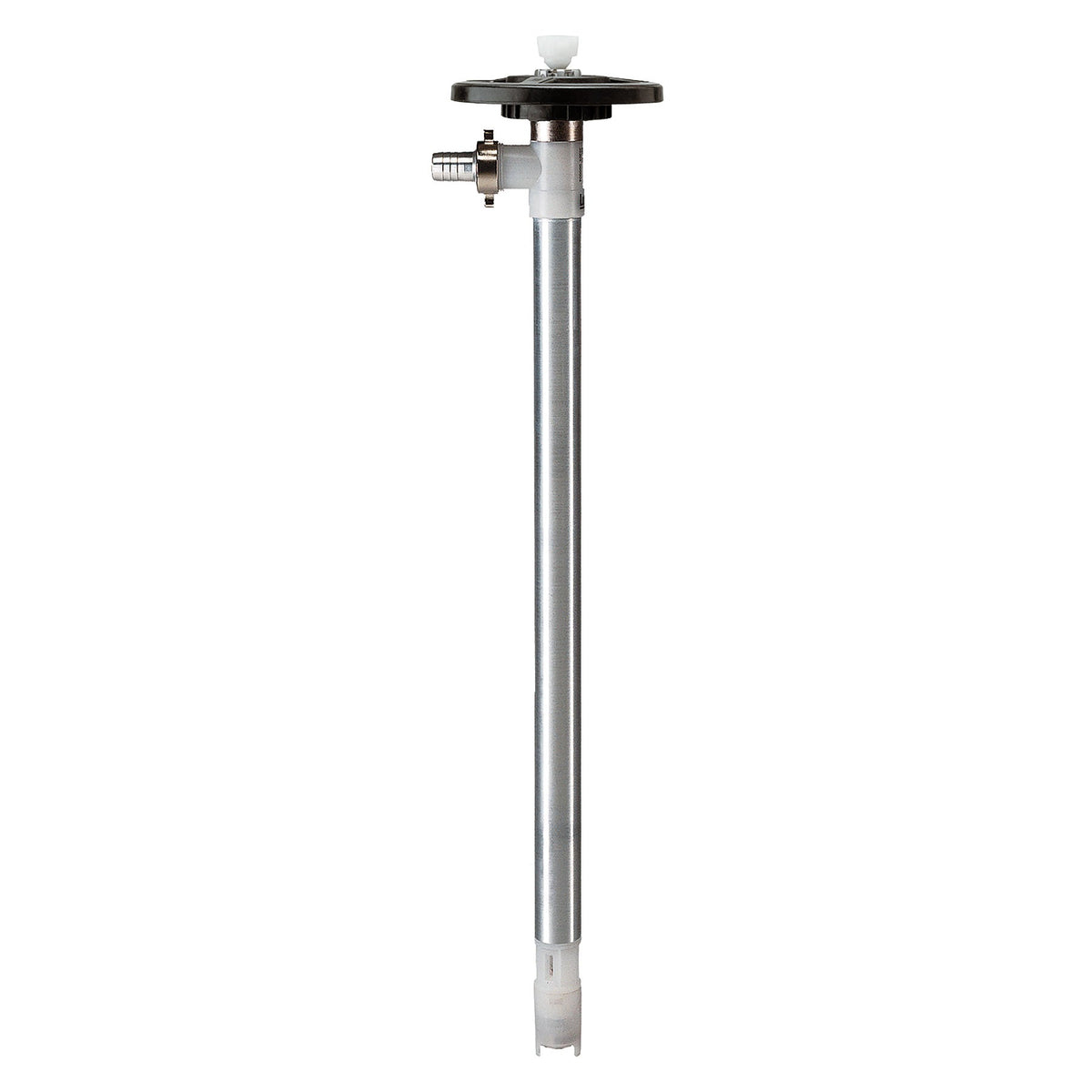

This robust Lutz pump tube with mechanical seal or in sealless design is suitable for pumping neutral, non-aggressive, clean, thin-bodied and slightly viscous liquids out of drums and small or large containers. The pump tube is non-lubricated, thus preventing contamination of the liquids pumped.
Structure and Function:
Lutz pump tubes are immersible centrifugal pumps. The drive shaft of this pump tube is sealed by a single-acting mechanical seal (MS) and two shaft seals located behind it, making a robust sealing system. The pump must not be allowed to run dry.
Length:
27", 39", 47"
Special length on request
Wetted Parts:
Housing: ALU, PVDF
Seals: FPM
Mechanical seal: Carbon, SiC, FPM, Stainless Steel
Bearings: PTFE
Drive shaft: Stainless Steel (316 Ti)
Examples of media: Thin-bodied and slightly viscous Mineral Oils, contaminated Oils, Cooling Lubricants, Vegetable Oils, Butylene Glycol, Diesel Fuel, Chlorodiphenyl, Fuel Oil, Ethereal Oils etc.
Type of impeller: axial-flow rotor (R) or radial-flow impeller (L) Material: ETFE
Warning:
This drum and container pump must not be used for flammable liquids.
Note:
Axial-flow rotor for high delivery rate and low delivery head. Radial-flow impeller for low delivery rate and high delivery head.
Variants & Pricing
| SKU | Details | Price | Stock |
|---|---|---|---|
| 2671-27 | 27 in. Radial-Flow Impeller Aluminum Mechanical Seal Pump Tube | $564.38 | Special Order Item Lead time: 14 days |
| 2576-27 | 27 in. Axial-Flow Rotor Aluminum Mechanical Seal Pump Tube | $564.38 | Special Order Item Lead time: 14 days |
| 2671-39 | 39 in. Radial-Flow Impeller Aluminum Mechanical Seal Pump Tube | $605.11 | Special Order Item Lead time: 14 days |
| 2576-39 | 39 in. Axial-Flow Rotor Aluminum Mechanical Seal Pump Tube | $605.11 | Special Order Item Lead time: 14 days |
| 2671-47 | 47 in. Radial-Flow Impeller Aluminum Mechanical Seal Pump Tube | $684.08 | Special Order Item Lead time: 14 days |
| 2576-47 | 47 in. Axial-Flow Rotor Aluminum Mechanical Seal Pump Tube | $684.08 | Special Order Item Lead time: 14 days |
