Hand Regulating Nozzles

LutzSKU: 2590

Details:
3/4 in. PP Hand Regulating Nozzle
Size: 3/4 in.
Material: PP
Price:
Sale price$249.36
Status: Special Order Item
Lead Time: 5 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

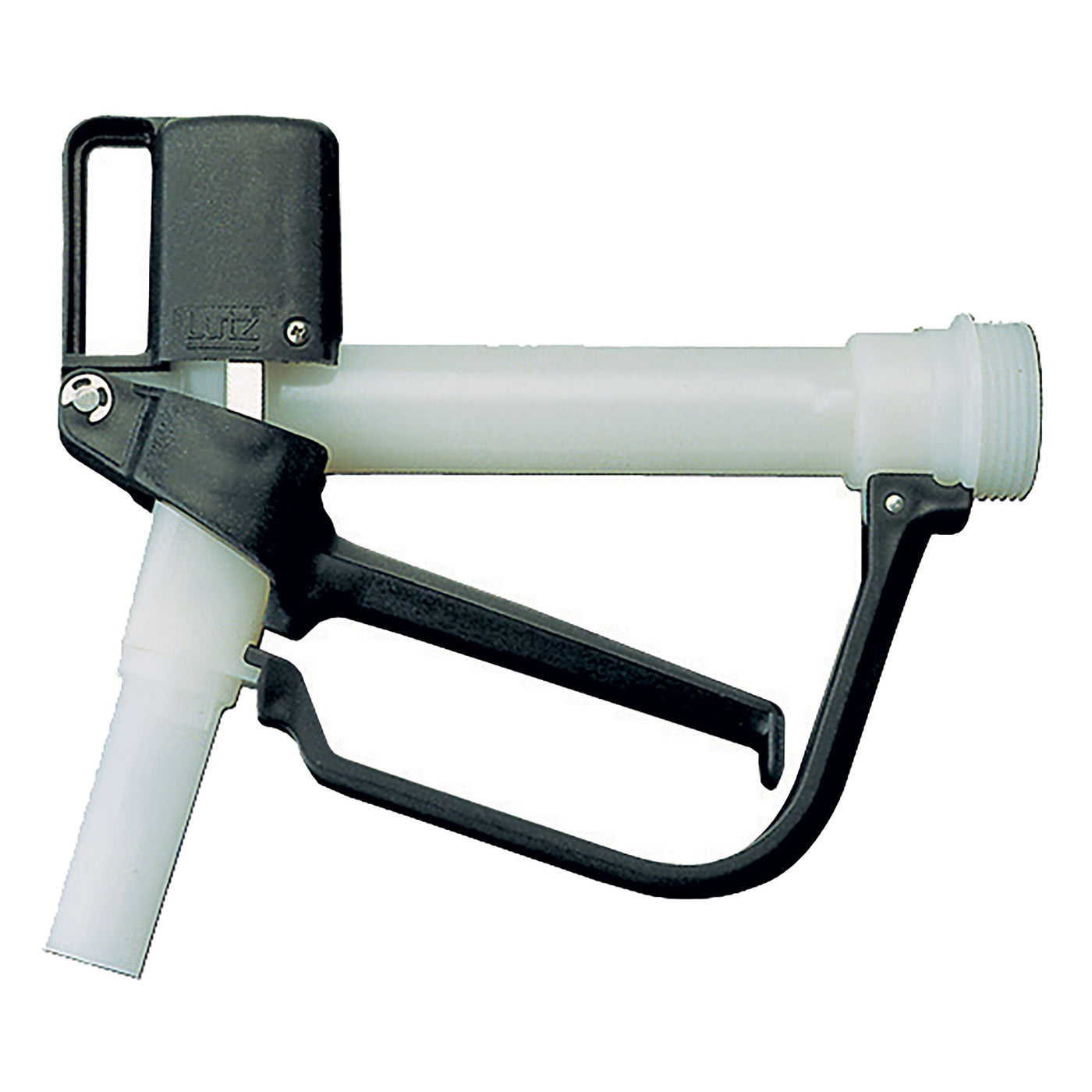

Description

PP Nozzle
For filling and transferring neutral and aggressive liquids. With guard and two outlet spouts 0.9" (cylindrical) and 1/2" (tapered). Polypropylene (PP) housing and valve tappet. FFPM seals on request.
Seals: FPM
Operating pressure: max. 43.5 psi at 68 degrees F
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 122 degrees F
Weight: approx. 0.55 lbs
Connection: hose barb 3/4ñ, 1"

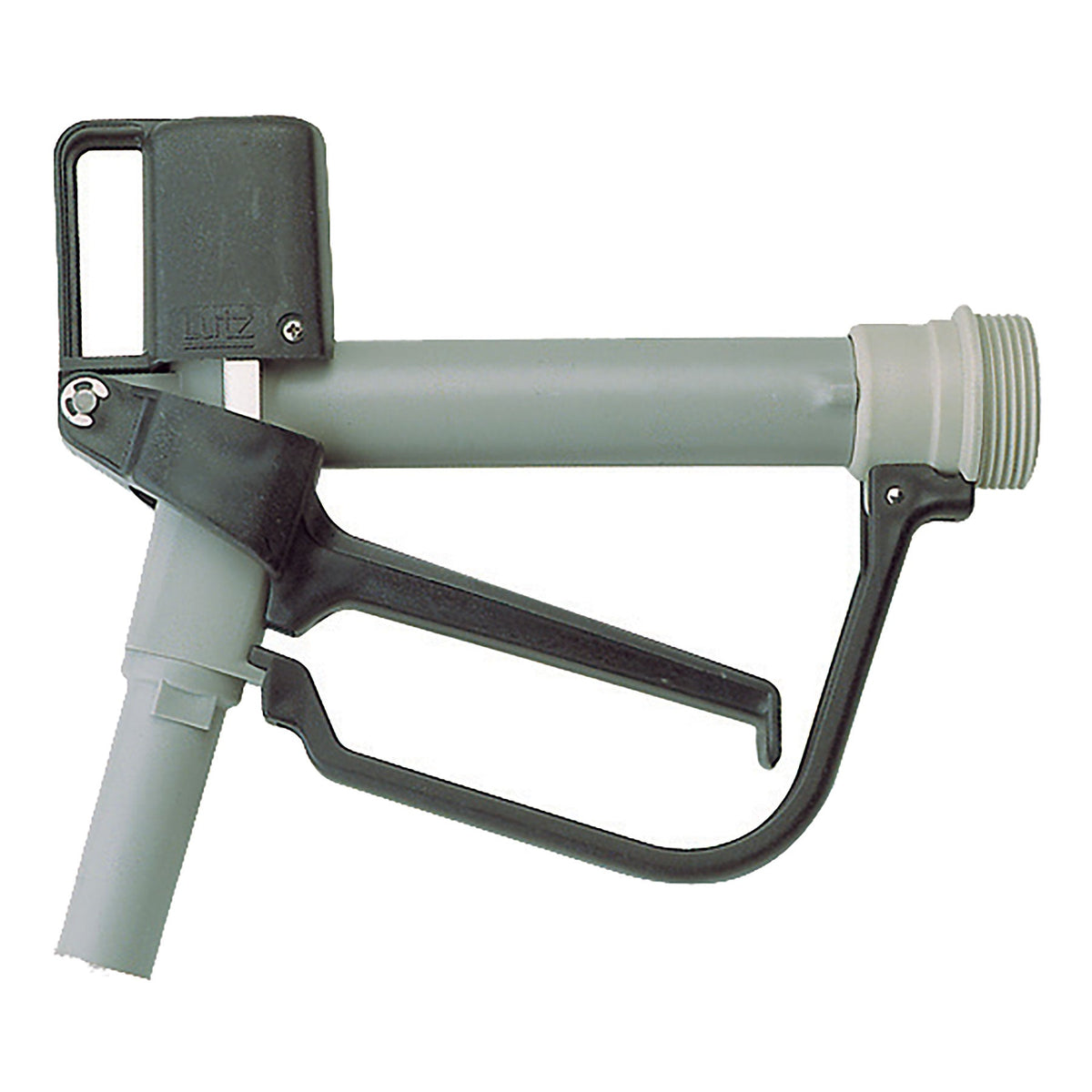

PVDF Nozzle
For filling and transferring neutral and aggressive liquids. With guard and two outlet spouts 0.9" (cylindrical) and 1/2" (tapered). Polyvinylidene fluoride (PVDF) housing and valve tappet. PTFE encapsulated FPM. FFPM seals upon request.
Seals: FPM
Operating pressure: max. 43.5 psi
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 176 degrees F
Weight: approx. 0.7 lbs
Connection: hose barb 3/4ñ, 1"

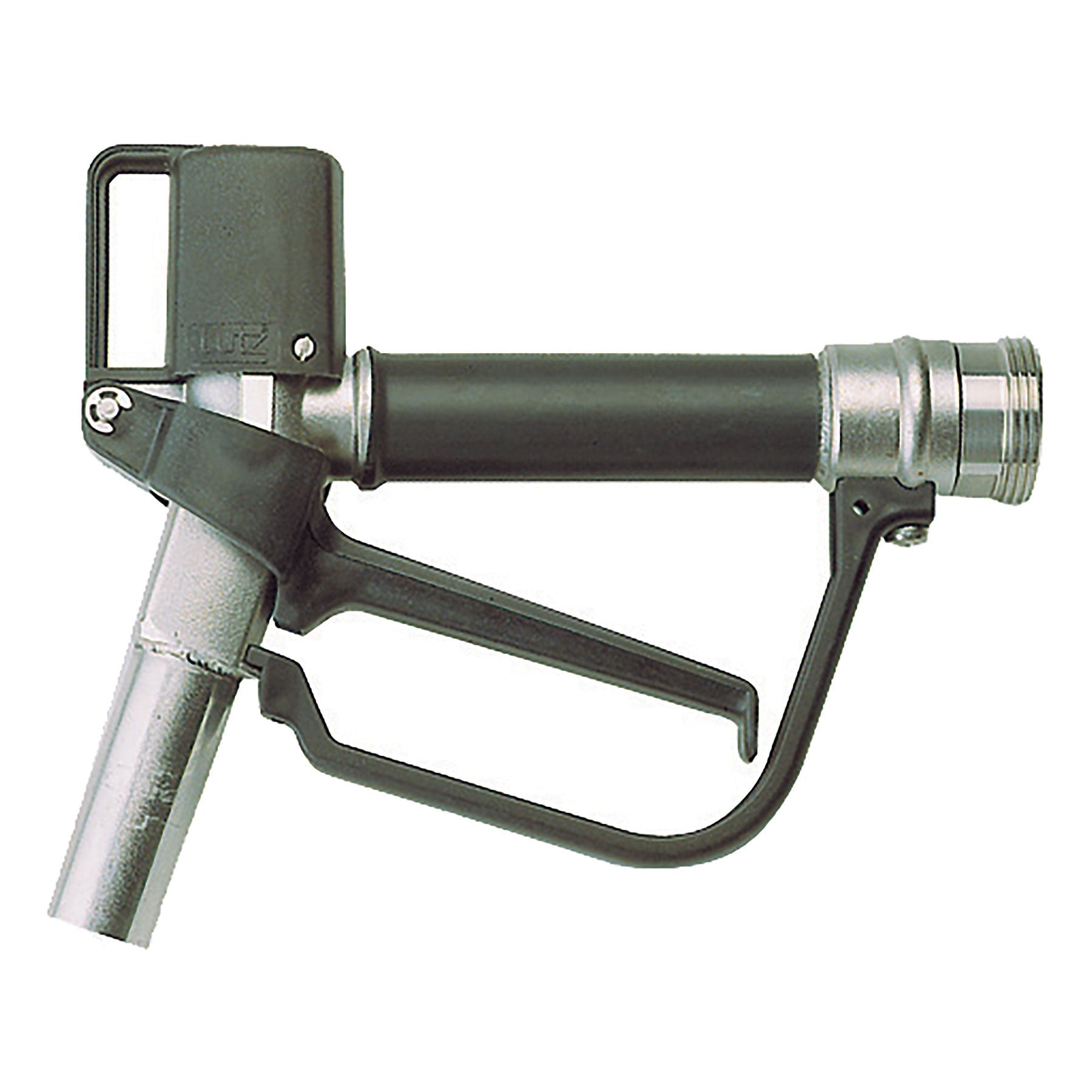

Stainless Steel Nozzle
Ideally suitable for filling and transferring liquids, also for combustible and flammable liquids, in food and pharmaceutical industry. Stainless steel (316) housing and valve tappet. With guard and swivel. FFPM seals on request.
Seals: FPM
Operating pressure: max. 43.5 psi
Viscosity: max. 760 cps
Flow rate: max. 13.2 GPM (water)
Temperature of medium: max. 176 degrees F
Weight: approx. 2.2 lbs
Connection: hose barb 1", 1-1/4"
