Description

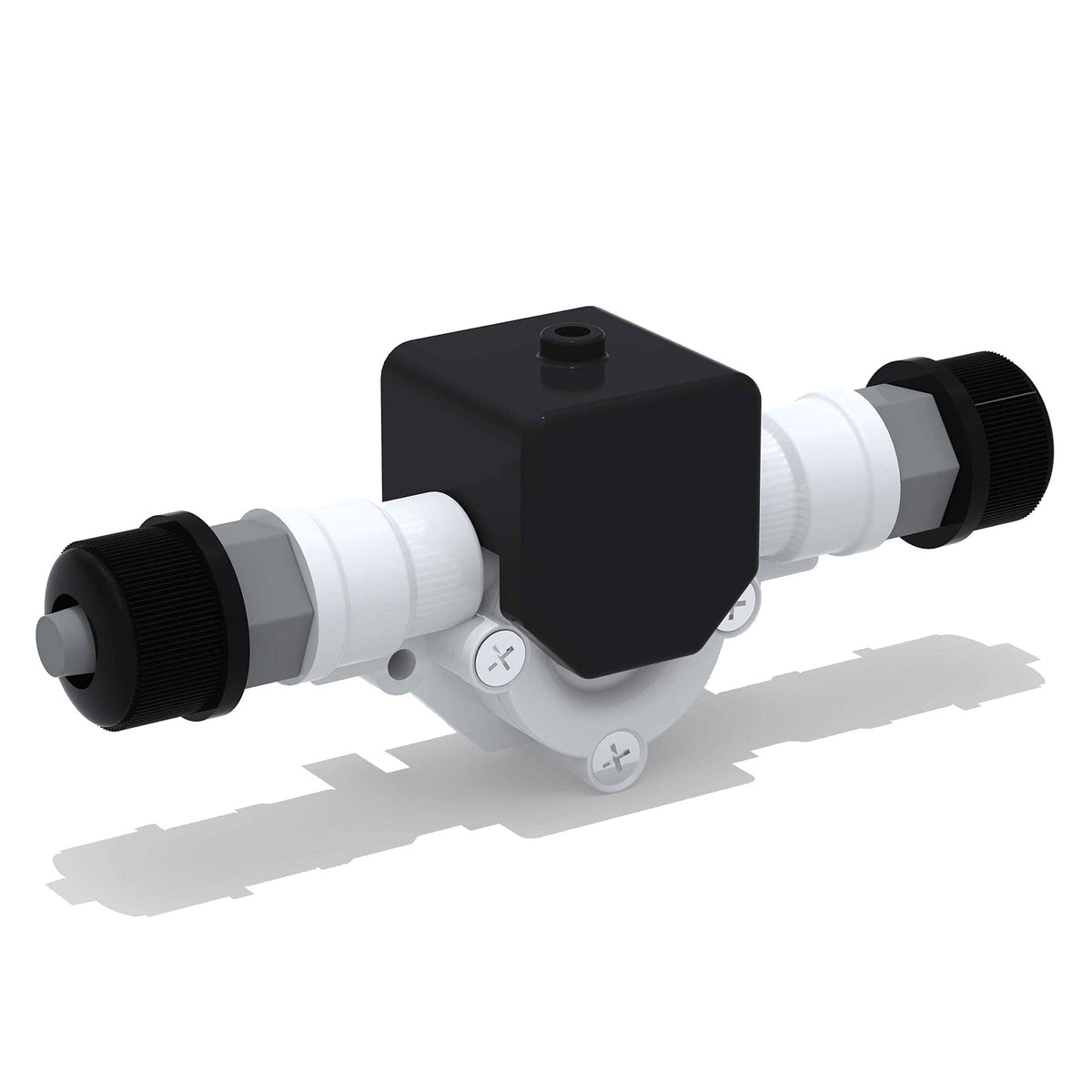

CLEARANCE ITM: Micro-Flo Digital Paddlewheel Flow Sensor
115V Models with 3/8 in. OD Tubing connections
Features:
- High accuracy digital paddlewheel technology.
- 3/8 in. OD Tubing size.
- Flow rates from 30 to 300 milliliters per minute.
- FV = No display. Sensor only. 5vdc current sinking output
- Opaque PVDF chemical resistant lens.
- Weather resistant Valoxs PBT enclosure. NEMA 4X
Specifications:
- Max. Working Pressure: 150 PSIG at 70 degrees F
- Max. Fluid Temperature: 200 degrees F at 0 PSI
- Full scale accuracy: +/- 6 percent
- Input Power requirement: 9 - 28 VDC
- Sensor type: Infra-red light beam
- Sensor only output: 5V DC digital square wave (3-wire)
- Sensor output cable: 3-wire shielded cable, 6ft
- Enclosure: NEMA type 4X, (IP56)
Note: Product images shown are for illustration purposes only and may not be an exact representation. To the best of our knowledge, all products are functioning properly when shipped.
