Model FT025 Polypropylene 1/4 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT025P-P1-RRPR-N1

Details:
1/2 in. FT05 Polypropylene Non-Metallic Diaphragm Pump Santoprene - This item is Special Order / Non-Cancellable / Non-Returnable
Diaphragm: PP / Santoprene
Price:
Sale price$401.62
Status: Special Order Item
Lead Time: 5 days

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

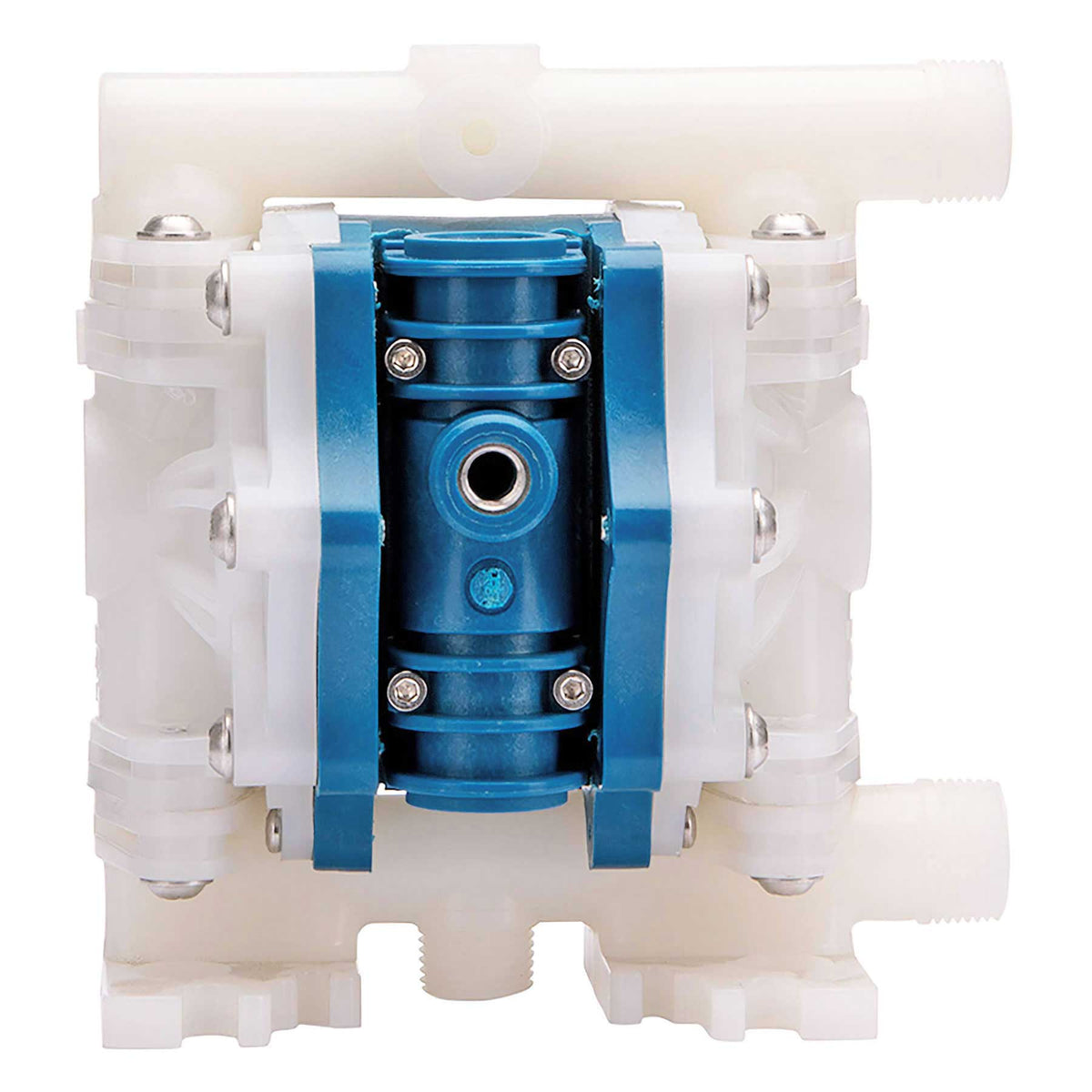

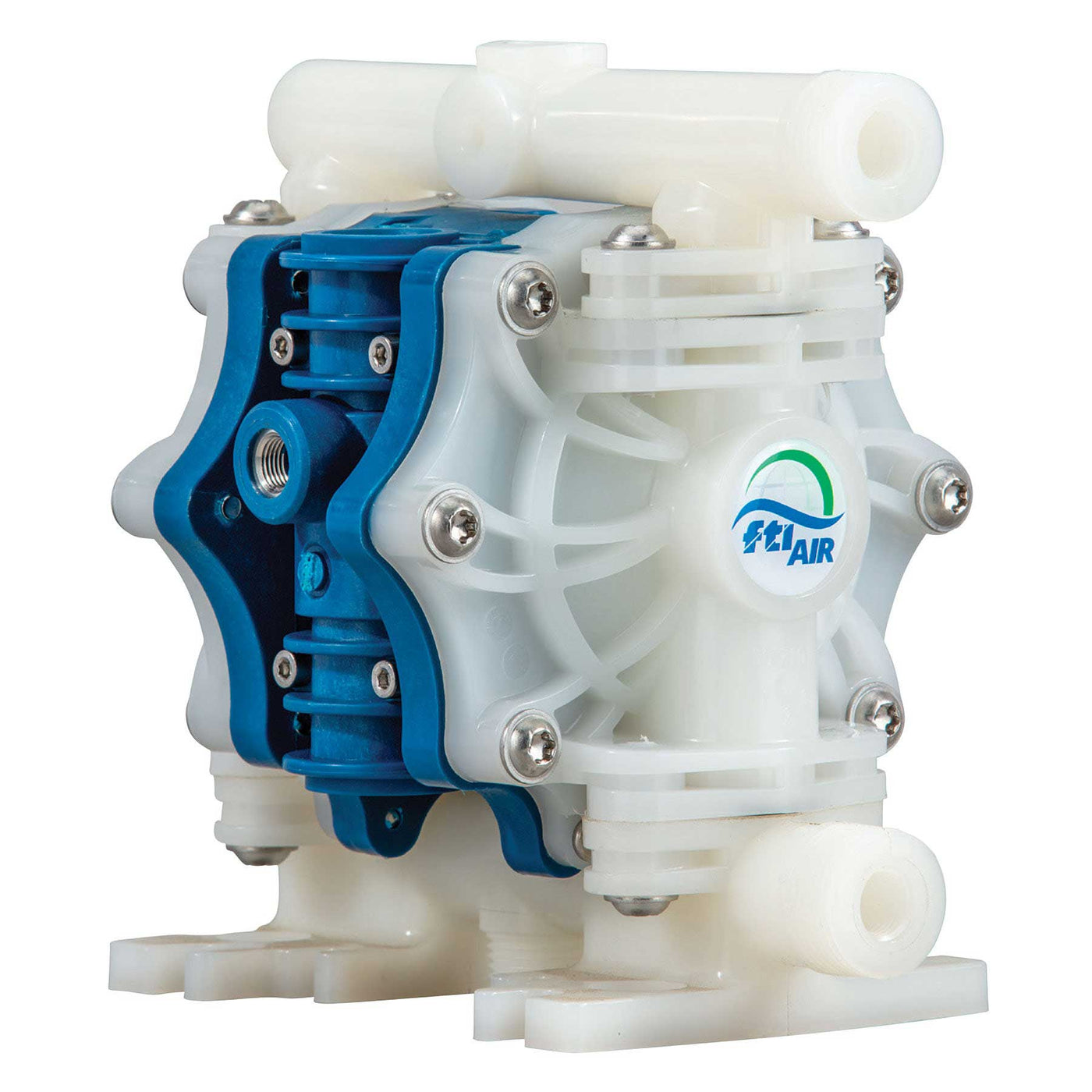

FTI Air Model FT025 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. Pumps are available with polypropylene, PVDF, or conductive polypropylene wetted materials. Diaphragms, balls and seats are available in a range of materials to provide reliable operation in a wide variety of applications. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Polypropylene, PVDF, Conductive Polypropylene
  • Diaphragm Materials: Santoprene, PTFE
  • Ball Materials: Santoprene, PTFE
  • Seat Materials: Polypropylene, PVDF, Carbon Filled PTFE
  • O-ring Materials: Santoprene, FEP/FKM
Wetted Non-wetted Air Valve Diaphragm Valve/Ball
#1 Polypropylene
GFRPP
GFRPP
Santoprene
Santoprene
#2 Polypropylene
GFRPP
GFRPP
PTFE/Neoprene
PTFE
Valve Seat O-Ring Connection Part No.
#1 Polypropylene Santoprene FNPT FT025P-P1-RRPR-N1
#2 Polypropylene FEP/FKM FNPT FT025P-P1-1TPC-N1


* Santoprene is a registered tradename of Exxon Mobil Corporation
