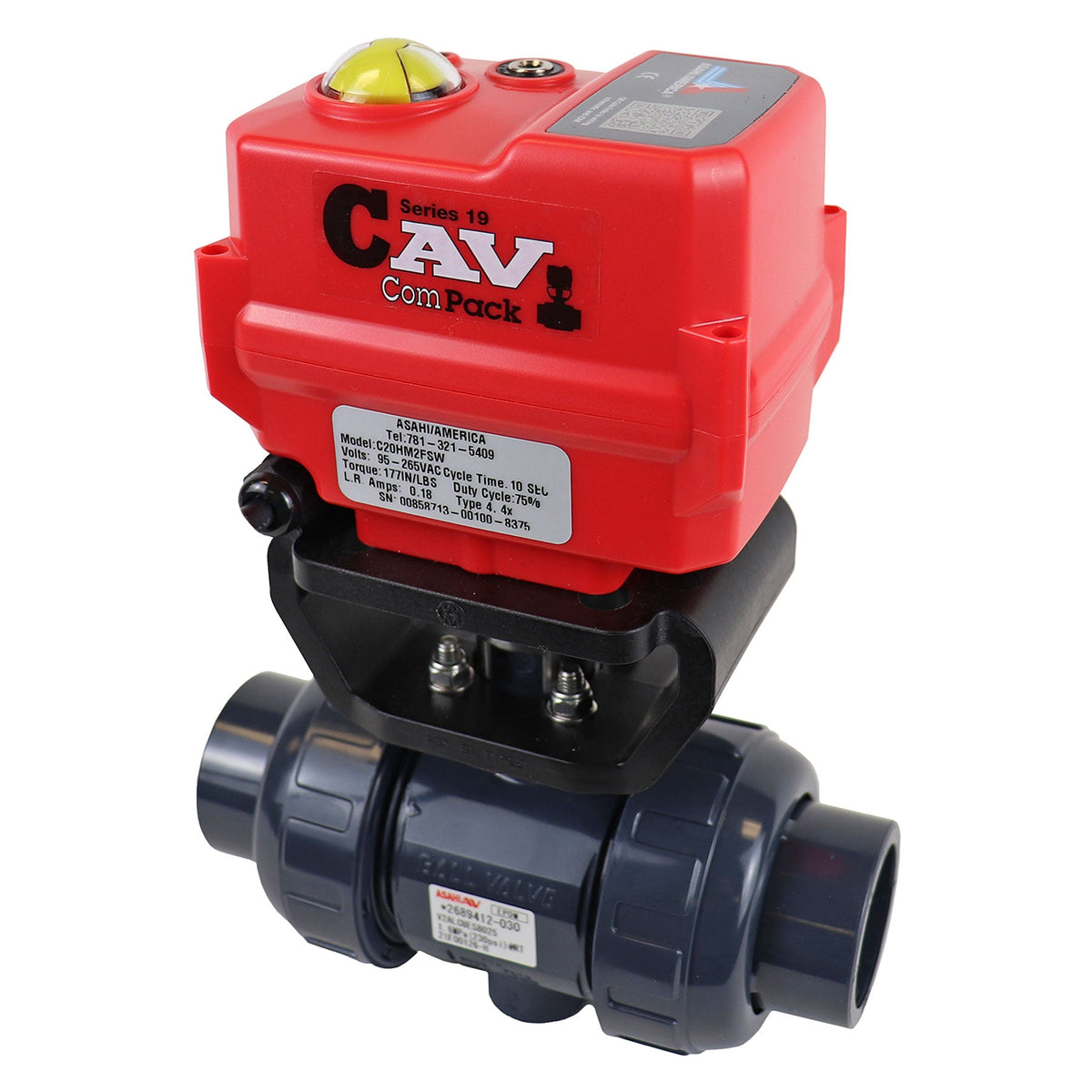

All Asahi/America Series 19 electric actuators come standard with multi-voltage capability, a visual position indicator; an LED light to indicate valve position or fault; auxiliary contacts; a QR code for easy and instant access to user manuals; and a heater. The Series 19 also features a corrosion resistant NEMA 4X engineered resin enclosure with stainless steel trim to protect the unit’s reversing, brushless DC motor and permanently-lubricated steel gear train.

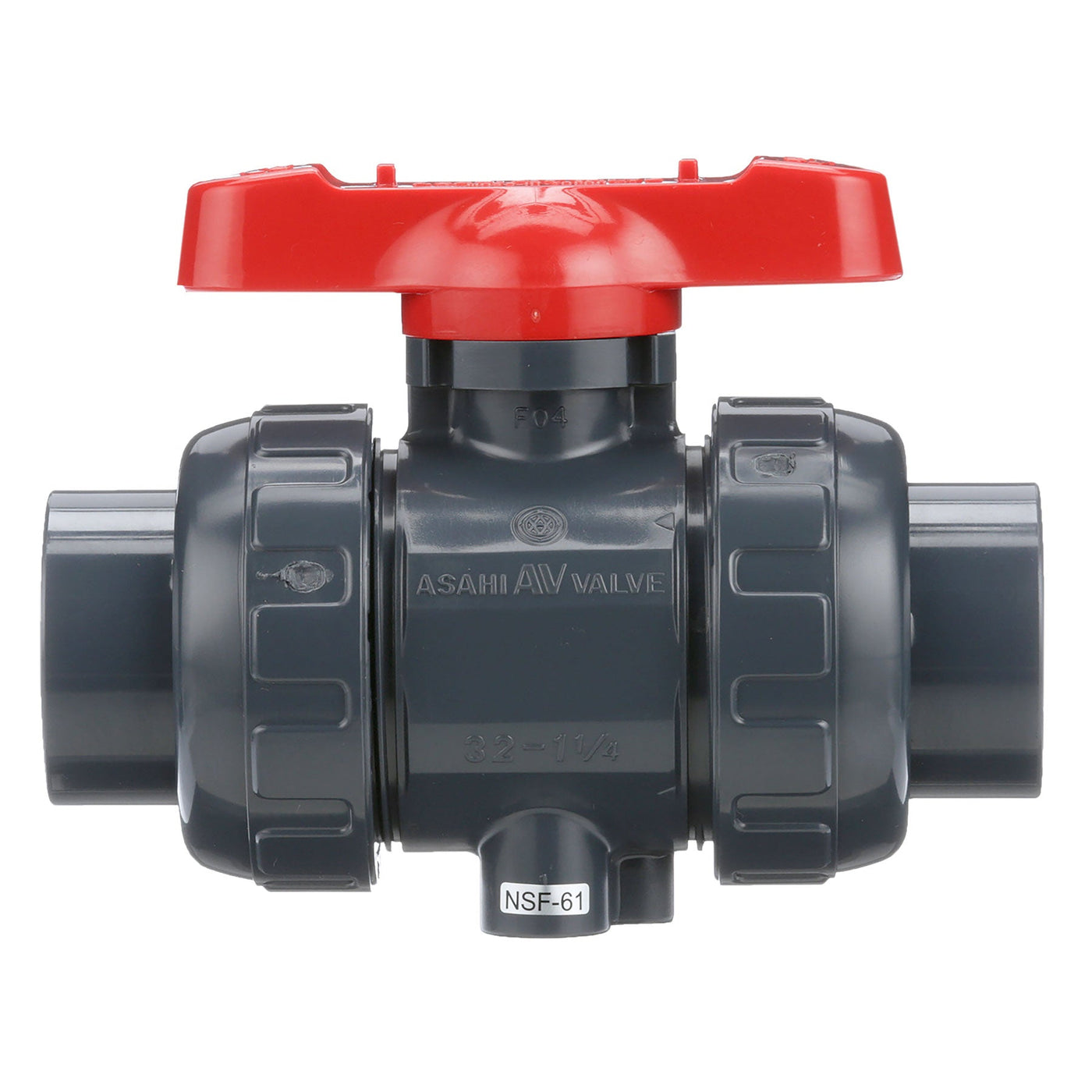

The Type-21 ball valve has two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes 1/2 to 2 in.

Specifications:

• Motor Type: Reversing, brushless DC
• Sizes: C20 for 1/2 in. to 2 in. valves
• Torque: 177 in-lbs
• Voltage: 95 VAC to 265 VAC multi-voltage
• Amp Draw: 0.18 Amp
• Max Ambient Temp: 150 Degrees F
• Enclosure: NEMA 4X

Standard Features:

• Compact: Compact and lightweight actuated valve package that is ideal for OEMs
• Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
• Motor: Reversing, brushless DC motor
• Gear Train: Permanently lubricated solid gears
• Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
  ISO mounting configuration
• Electrical Connection: NEMA 4X cable gland with two-meter cable
• Position Indication: Highly visible dome position indicator
• LED Position Indication: RED closed, GREEN open
• Manual Override: Manually cycle valve via electroless nickel-plated hex key
• Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
• Space Heater: A two-watt heater is internally wired to limit condensation
• QR Code: Links to user manual; includes wiring schematic
• CE Compliant: All actuators are CE labeled
• 75% Duty Cycle: Extended duty cycles are ideal for high cycling applications

Asahi Part Numbers: 290230005, 290230007, 290230010, 290230012, 290230015, 290230020, 290630005, 290630007, 290630010, 290630012, 290630015, 290630020, 291830005, 291830007, 291830010, 291830012, 291830015, 291830020, 292230005, 292230007, 292230010, 292230012, 292230015, 292230020
