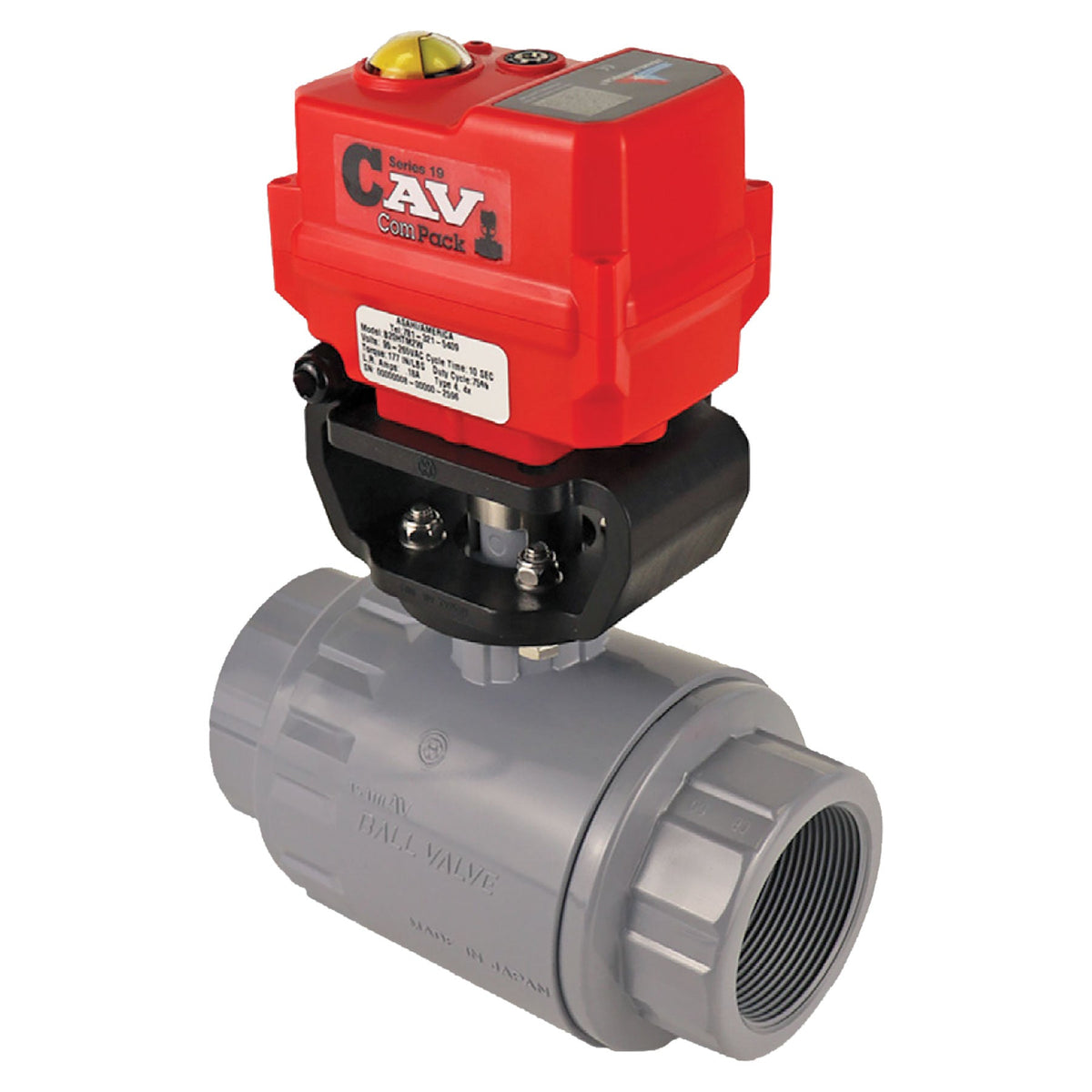

Series 19 CAV Failsafe Electric Actuated Omni Type-27 Ball Valve

AsahiSKU: 16107080003

Details:
3/8 in. PVC/EPDM Socket Type-27/Series 19 CAV Failsafe Electric Actuated Omni Ball Valve
Size: 3/8 in.
Material: PVC
Connection: Socket
Price:
Sale price$1,153.00
Status: Special Order Item
Lead Time: 5 days

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

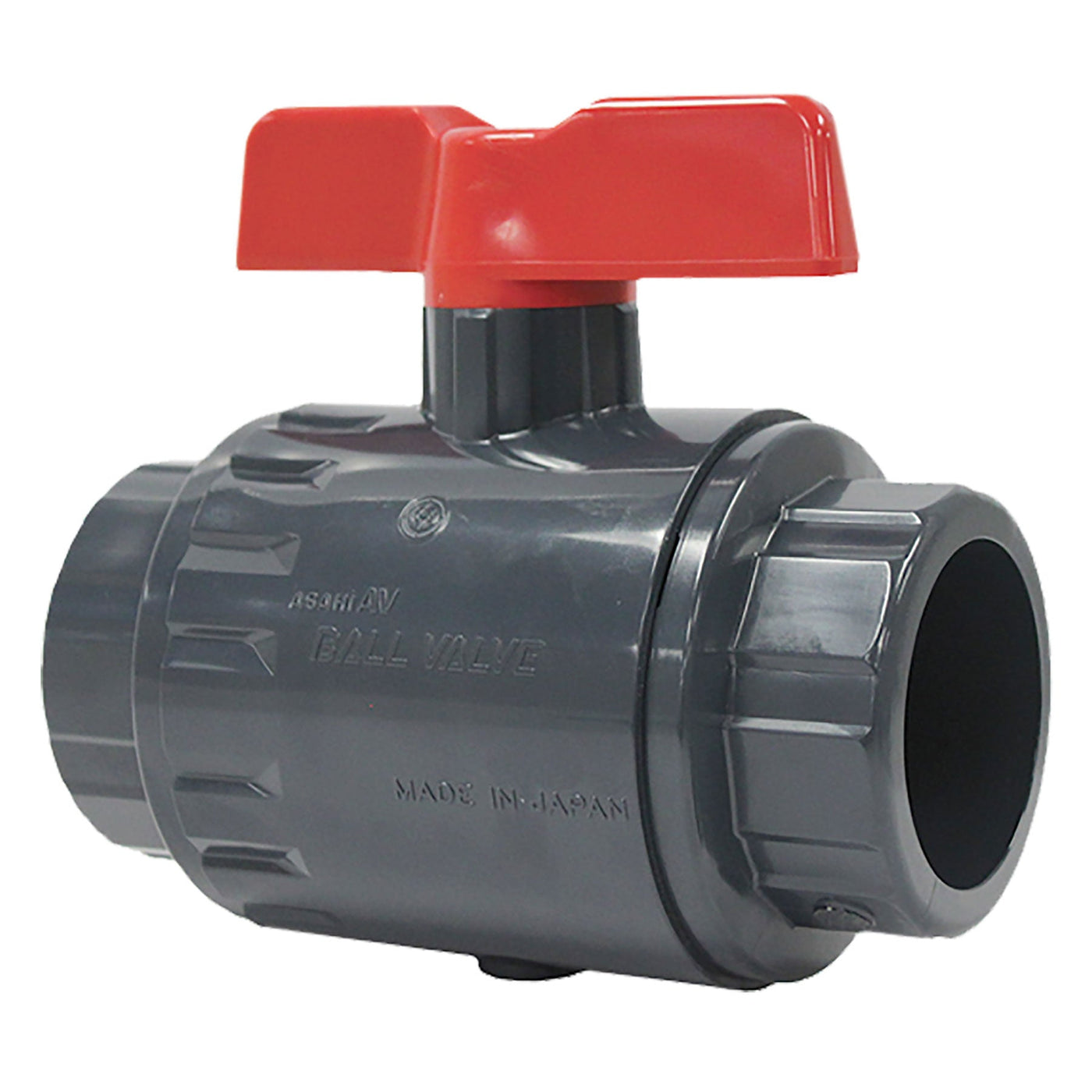

The basic Series 19 CAV Com Pack is a mechanical-type actuator available as a failsafe unit. The CAV Com Pack mounts on Asahi’s Type-27 Omni ball valves, Type-21 ball valves, and Type-23 Multiport ball valves to provide smooth operation in a compact and lightweight package. The Com Pack Series 19 fits Omni ball valve sizes 3/8 to 2 inch, Type-21 and Type-23 ball valve sizes 1/2 - 2 inch and has a cycle time of 10 seconds per 90 degrees.

Specifications:

  • Motor Type: Reversing, brushless DC
  • Sizes: C20 for 3/8 - 2 inch valves
  • Torque: 177 in-lbs
  • Voltage: 95 VAC to 265 VAC multi-voltage
  • Amp Draw: 0.18 Amp
  • Max Ambient Temp: 150 degrees F
  • Enclosure: NEMA 4X

Features & Benefits:

  • Compact: Perfect for OEM and skid manufacturers with a footprint of 2.75 in. x 4 in. up to a 2 in. ball valve
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Motor: Reversing, brushless DC motor
  • Capacitor Discharge System: A capacitor is used in place of batteries for failsafe mode
  • Fail Position: Fail close is standard; fail as is, or fail open are options
  • Gear Train: Permanently lubricated steel gears
  • Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
  • ISO mounting configuration
  • Electrical Connection: NEMA 4X cable gland with two-meter cable
  • Position Indication: Highly visible beacon position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp at 250 VAC, 0.5 Amp at 30 VDC
  • Space Heater: Internally wired to limit condensation
  • CE Compliant: All actuators are CE labeled and compliant
  • 75 Percent Duty Cycle: Extended duty cycle is ideal for high cycling applications QR Code: Links to user manual; includes wiring schematic
  • Simple Wiring: Wiring technique is the same for all voltage units
