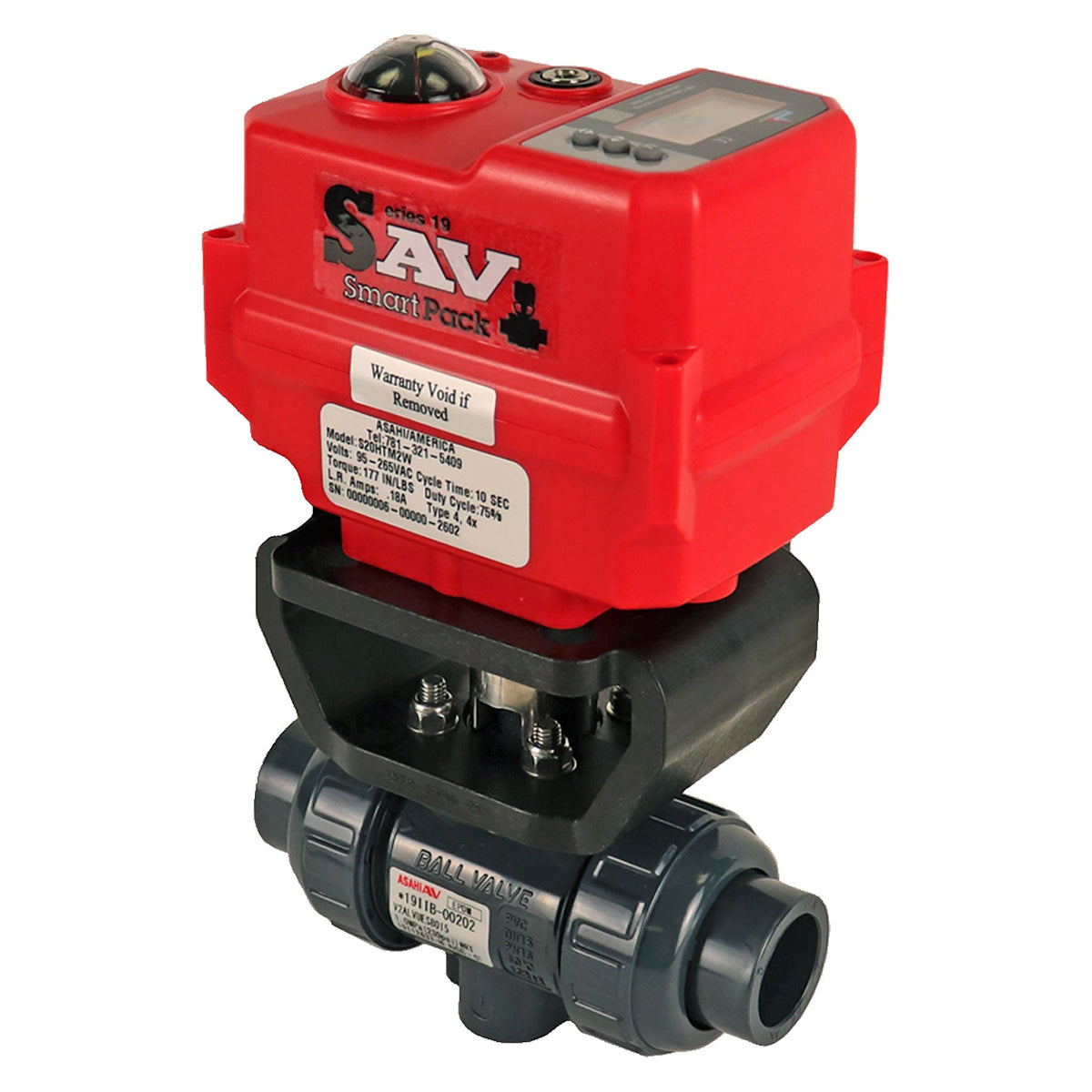

Series 19 SAV Electric Actuated Type-21A Ball Valve

Series 19 SAV Electric Actuated Type-21A Ball Valve

All Asahi/America Series 19 electric actuators come standard with multi-voltage capability, a visual position indicator; an LED light to indicate valve position or fault; auxiliary contacts; a QR code for easy and instant access to user manuals; and a heater. The Series 19 also features a corrosion resistant NEMA 4X engineered resin enclosure with stainless steel trim to protect the unit’s reversing, brushless DC motor and permanently-lubricated steel gear train.

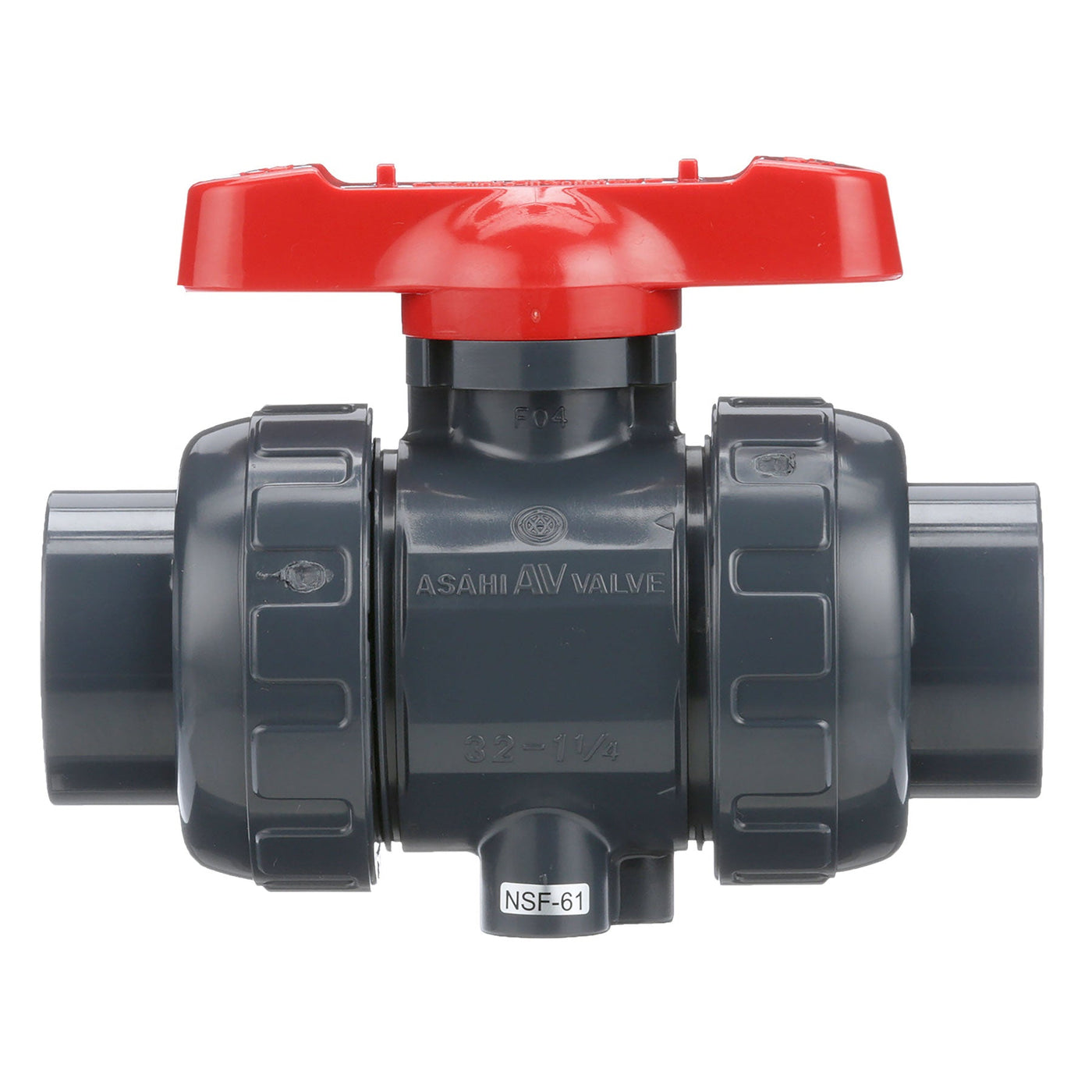

The Type-21 ball valve has two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes 1/2 to 2 in. 2-1/2, 3 and 4 in. sizes come with socket end connectors.

Specifications:

• Motor Type: Reversing, brushless DC
• Sizes: S20 for 1/2 in. to 2 in. ball valves, S50 for 2-1/2 in. to 3 in. ball valves, S110 for 4 in. ball valves
• Torque: 177 in-lbs to 973 in-lbs
• Voltage: 95 VAC to 265 VAC multi-voltage
• Amp Draw: 0.18 Amp for S20, 0.24 Amp for S50, 0.84 Amp for S110
• Max Ambient Temp: 150 Degrees F

Standard Features:

• Compact: Perfect for OEM and skid manufacturers
• OLED Screen: Displays valve position, alarms (such as an over torque condition)
• Push Buttons: Used to calibrate/adjust end positions, local controls
• Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
• Motor: Reversing, brushless DC motor
• Gear Train: Permanently lubricated steel gears
• Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
• ISO mounting configuration
• Electrical Connection: NEMA 4X cable gland with two-meter cable
• Position Indication: Highly visible beacon position indicator
• LED Position Indication: RED closed, GREEN open, BLUE fault
• Manual Override: Manually cycle valve via electroless nickel-plated hex key
• Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
• Alarm Contacts: Dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC for alarm status (over torque, as an example)
• QR Code: Links to user manual; includes wiring schematic
• Space Heater: Internally wired to limit condensation
• CE Compliant: All actuators are CE labeled and compliant
• 75% Duty Cycle: Extended duty cycle is ideal for high cycling applications
• Output Torque: Series 19 electric actuators have an output torque range from 177 in-lbs to 973 in-lbs
• Simple Wiring: Wiring technique is the same for all voltage units
• Local Controls: Used with OLED and push buttons, a user can locally open or close units via password

Asahi Part Numbers: 290240005, 290240007, 290240010, 290240012, 290240015, 290240020, 290640005, 290640007, 290640010, 290640012, 290640015, 290640020, 291840005, 291840007, 291840010, 291840012, 291840015, 291840020, 292240005, 292240007, 292240010, 292240012, 292240015, 292240020
