Spears PVC Bulkhead SS Reinforced Threads 1/4 to 6 in.

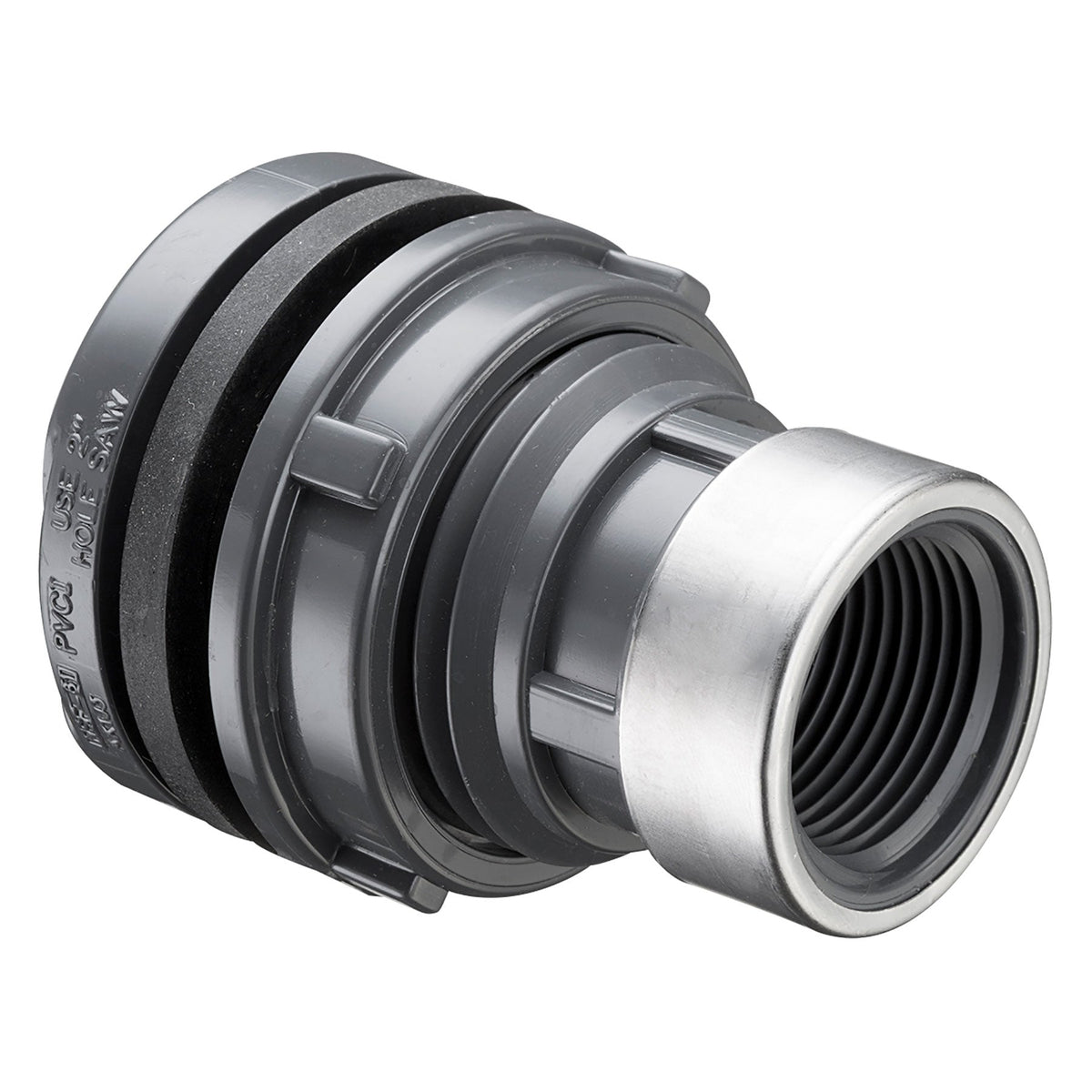

PVC Bulkhead, Stainless Steel Reinforced Threads, 1/4 in. to 6 in. Sizes

SpearsSKU: 8171-002SR
Details:
1/4 in. Soc x SR Fipt Neoprene PVC Bulkhead
Size: 1/4 in.
Connection: Soc x SR Fipt
Gasket: Neoprene
Price:
$39.12
Status: Special Order Item
Lead Time: 14 days

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

PVC / Neoprene / Soc x Fipt Steel Reinforced

SKU Size L L1 M M1 N R
8171-002SR 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-1/4 1/2
8171-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/16 1/2
8171-005SR 1/2 2-15/16 2-7/16 2-1/32 1-15/32 1-9/32 5/8
8171-007SR 3/4 2-15/16 2-3/16 2-1/4 1-5/8 1-1/4 5/8
8171-010SR 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8171-012SR 1-1/4 3-13/32 2-5/8 3-3/32 2-5/16 1-17/32 5/8
8171-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-1/4 5/8
8171-020SR 2 4-1/8 3-1/4 4-7/8 3-1/4 1-5/8 3/4
8171-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 1-11/16 1
8171-030SR 3 5-1/2 4-1/2 6 4-9/16 2-3/16 1
8171-040SR 4 5 4 7-1/2 5-1/2 1-1/4 1-1/4

PVC / EPDM / Soc x Fipt Steel Reinforced

SKU Size L L1 M M1 N R
8171E-002SR 1/4 2-1/2 1-13/16 1-1/2 1-1/16 1-1/4 1/2
8171E-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/16 1/2
8171E-005SR 1/2 2-15/16 2-7/16 2-1/32 1-15/32 1-9/32 5/8
8171E-007SR 3/4 2-15/16 2-3/16 2-1/4 1-5/8 1-1/4 5/8
8171E-010SR 1 3-5/16 2-13/16 2-5/8 1-31/32 1-1/4 5/8
8171E-012SR 1-1/4 3-13/32 2-5/8 3-3/32 2-5/16 1-17/32 5/8
8171E-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-1/4 5/8
8171E-020SR 2 4-1/8 3-1/4 4-7/8 3-1/4 1-5/8 3/4
8171E-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 1-11/16 1
8171E-030SR 3 5-1/2 4-1/2 6 4-9/16 2-3/16 1
8171E-040SR 4 5 4 7-1/2 5-1/2 1-1/4 1-1/4

PVC / FKM / Fipt x Fipt Steel Reinforced

SKU Size L L1 M M1 N R
8172V-002SR 1/4 2-1/2 1-7/8 1-9/16 1-1/16 1-5/16 1/2
8172V-003SR 3/8 2-1/2 1-13/16 1-5/8 1-3/16 1-3/8 1/2
8172V-005SR 1/2 2-15/16 2-3/16 2 1-7/16 1-1/2 5/8
8172V-007SR 3/4 2-15/16 2-15/32 2-1/4 1-5/8 1-3/16 5/8
8172V-010SR 1 3-15/16 2-19/32 2-5/8 1-31/32 1-1/4 5/8
8172V-012SR 1-1/4 3-13/32 2-27/32 3-3/32 2-5/16 1-17/32 5/8
8172V-015SR 1-1/2 3-5/8 2-13/16 3-5/8 2-11/16 1-3/4 5/8
8172V-020SR 2 4-1/8 3-1/4 4-27/32 3-1/32 2-1/8 3/4
8172V-025SR 2-1/2 4-7/8 3-7/8 5-1/4 3-13/16 2-1/4 1
8172V-030SR 3 5-15/32 4-17/32 5-31/32 4-17/32 2-21/32 1
8172V-040SR 4 5 4 7-1/2 5-1/2 2 1-1/4

Tank Adapter Hole Size Specs

Tank Adapter Size Minimum Hole Size Minimum Inside Curvature Radius (inches) Maximum Tank Wall Thickness (inches)
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25

Tank Adapter Gasket Specs

Size O.D.* I.D.* T
1/4 1-1/16 2.50 .50
3/8 1-3/16 3.00 .50
1/2 1-1/2 4.00 .75
3/4 1-3/4 5.00 .75
1 2 7.00 .86
1-1/4 2-3/8 9.50 .86
1-1/2 2-3/4 12.00 .86
2 3-3/8 18.50 1.19
2-1/2 3-7/8 23.50 1.50
3 4-5/8 32.50 2.00
4 5-1/2 43.50 1.25
6 8 79.50 2.06
8 10-3/8 98.00 4.25
