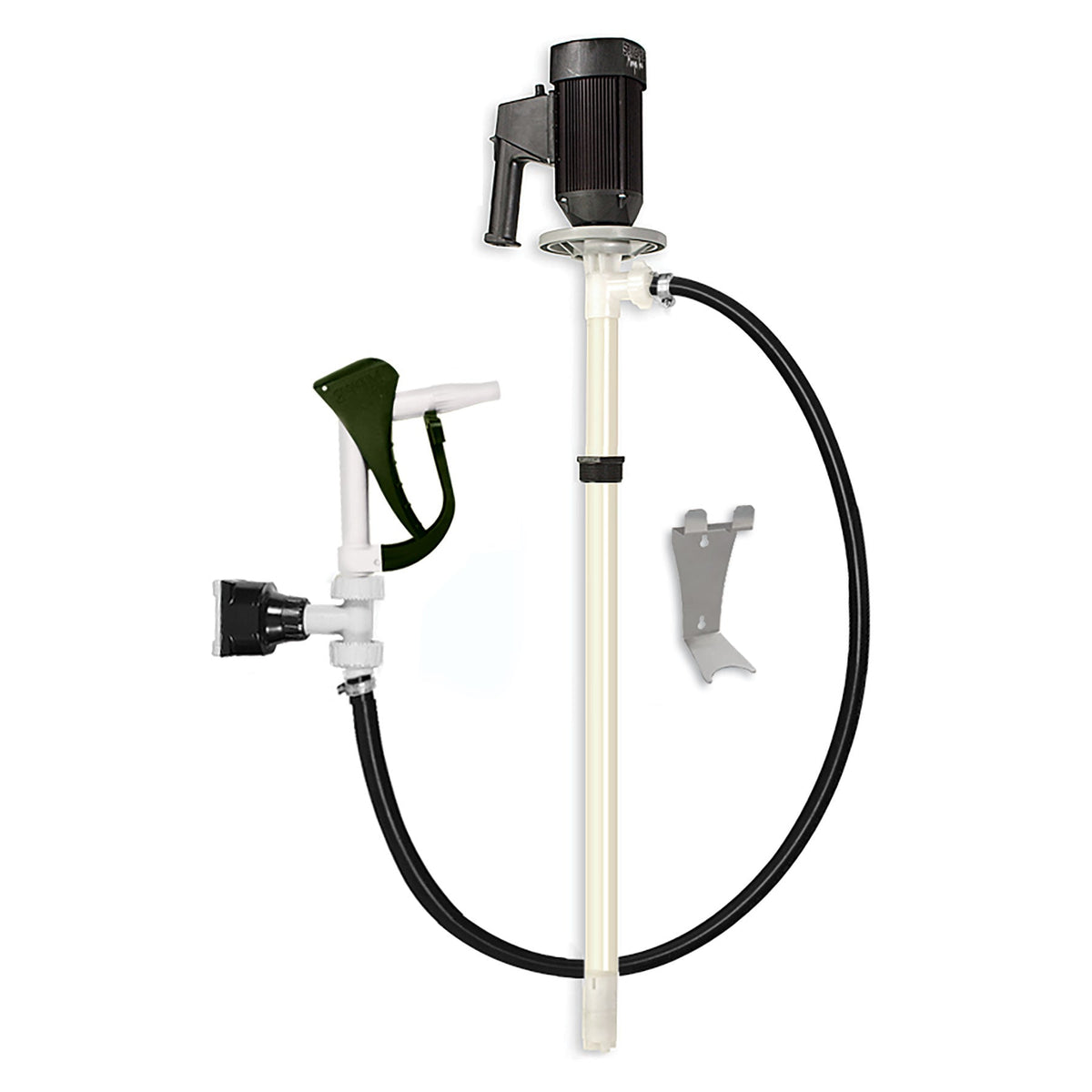

Standard Concentrated Acids & Alkalis Measurement Pump Package #5, 39 in. to 47 in. Lengths

StandardSKU: 9510

Details:
39 in. PVDF Pump Tube - SP-ENC-V Variable Speed 110V Motor
Style: 39 in. - 120V
Price:
Sale price$6,079.12
Status: Special Order Item
Lead Time: 7 days
Note: This item is Non-Cancelable/Non-Returnable

Pickup available at 1265 Mt Vernon Rd

Usually ready in 24 hours

Description

Standard Pump Package 5
PVDF – METER
Engineered to safely measure and dispense corrosive chemicals. Not suitable for pumping flammable or combustible liquids.

Applications

  • Sulfuric Acid - 66 Baume
  • Concentrated Nitric (98 Percent)
  • Hydrofluoric Acid
  • Propionic Acid

Technical Specifications

  • Package Includes: Motor, Pump Tube, Hose, Storage Bracket, Flow Meter, Barrel Adapter and Hand Nozzle
  • Motor Type: TEFC (IP54)
  • Pump Tube Material: PVDF, Hastelloy C-276, Carbon Graphite
  • Immersion Length: 39 in. (1000 mm) or 47 in. (1200 mm)
  • Discharge Hose: Modified Cross-Link Polyethylene, 6 ft (1,8 m), 1 in. (25 mm) I.D.
  • Hand Nozzle Material: PVDF, Viton
  • Flow Meter Material: PVDF, Viton, Halar, Ceramic
  • Flow Meter Type: Digital / Battery Powered Totalizer
  • Maximum Flow Rate: 13.5 GPM (51 LPM) based on water
  • Maximum Viscosity: 300 cps (mPas)
  • Maximum Temperature: 175 degrees F (80 degrees C)
  • Shipping Weight: 31 lbs. (14,06 kg)
