Description

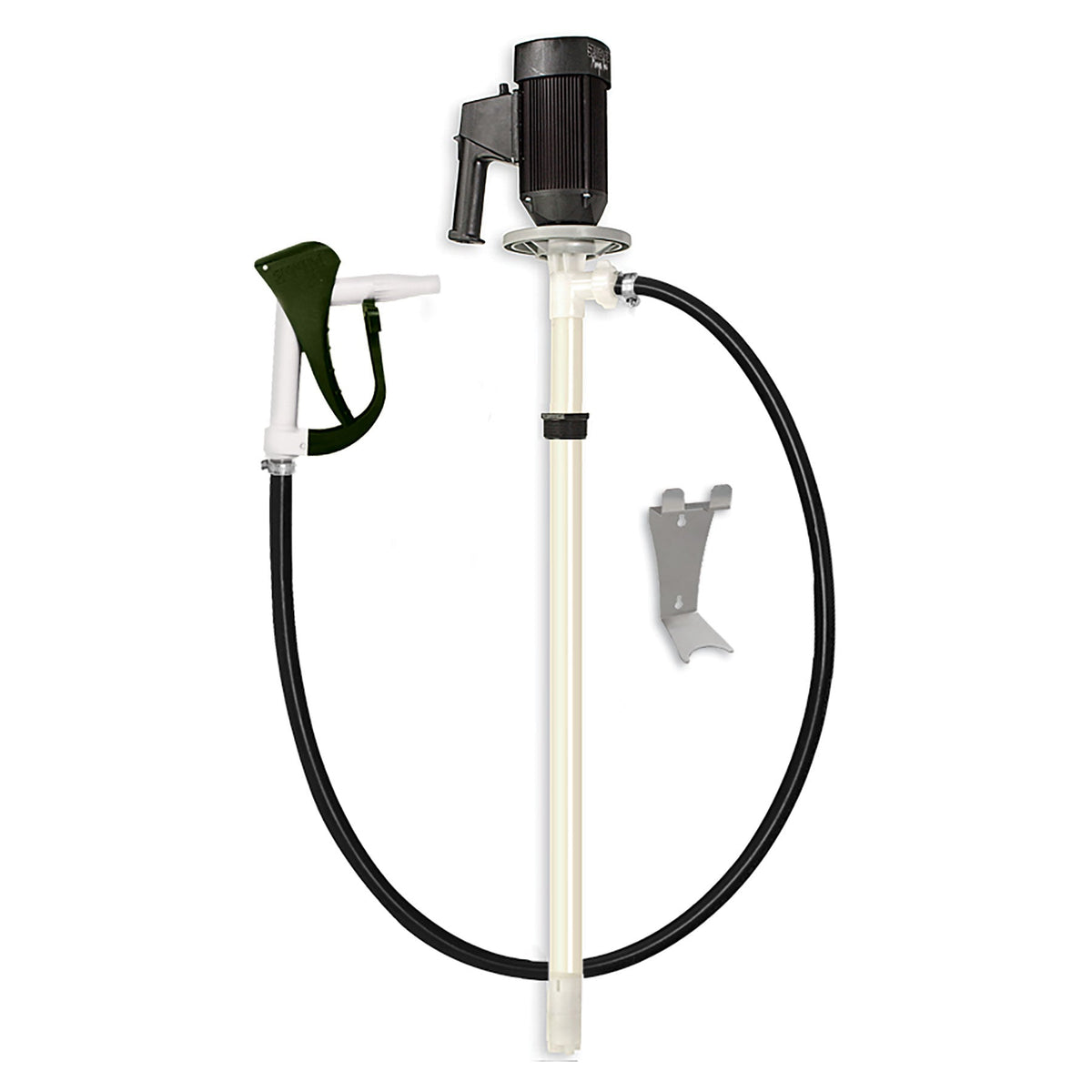

Standard Pump Package 3
PVDF
Engineered to transfer concentrated and extremely aggressive chemicals. Not suitable for pumping flammable or combustible liquids.
Applications
- Sulfuric Acid – 66 Baume
- Concentrated Nitric Acid
- Hydrofluoric Acid
- Propionic Acid
Technical Specifications
- Package Includes: Motor, Pump Tube, Hose, Storage Bracket, Barrel Adapter and Hand Nozzle
- Motor Type: TEFC (IP54)
- Pump Tube Material: PVDF, Hastelloy C-276, Carbon Graphite
- Immersion Length: 39 in. (1000 mm) or 47 in. (1200 mm)
- Discharge Hose: Modified Cross-Link Polyethylene, 6 ft (1,8 m), 1 in. (25 mm) I.D.
- Hand Nozzle Material: PVDF, Viton
- Maximum Flow Rate: 15 GPM (57 LPM) based on water
- Maximum Viscosity: 1500 cps (mPas)
- Maximum Temperature: 175 degrees F (80 degrees C)
- Shipping Weight: 30 lbs. (13,60 kg)
