Description

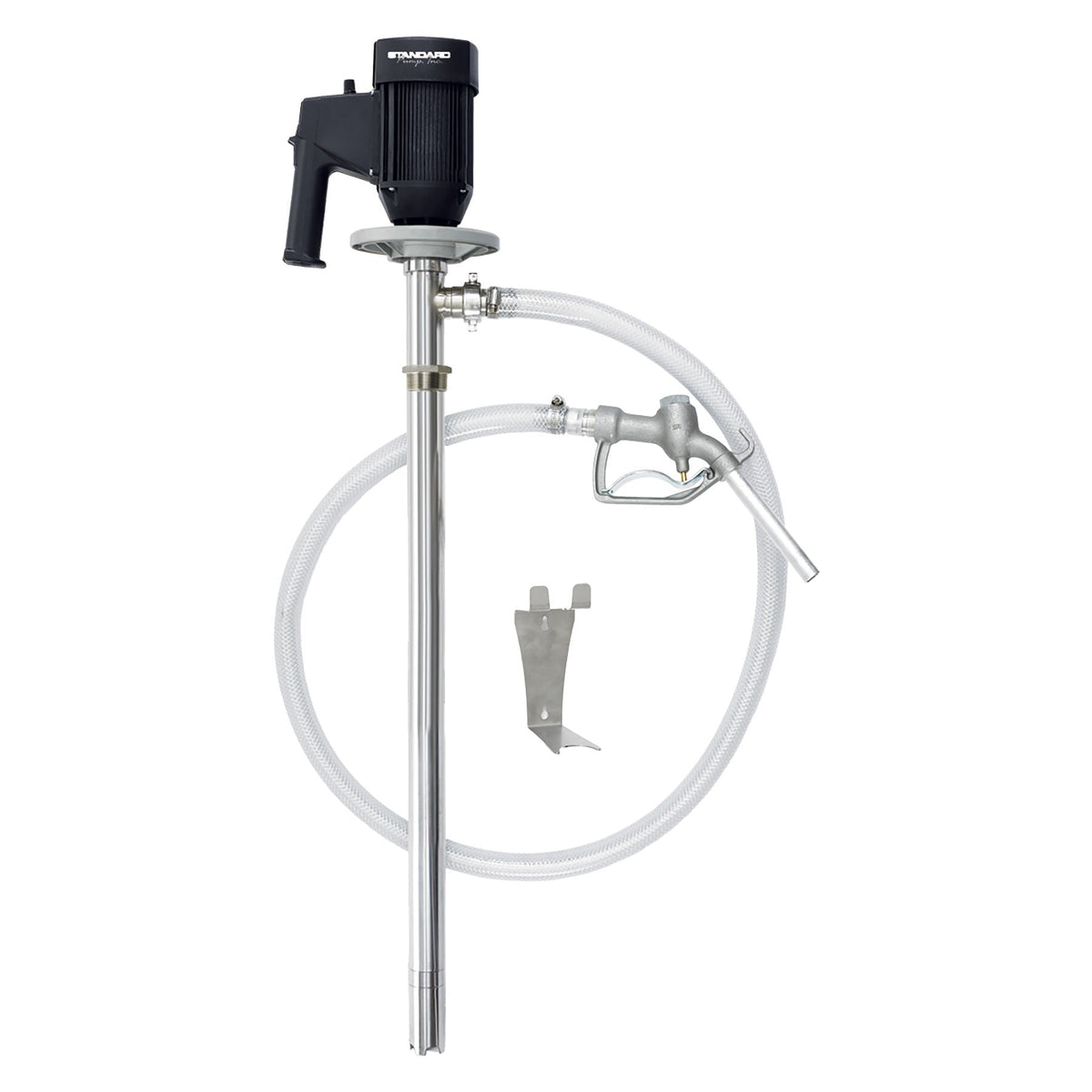

Standard Pump Package 7
ALUMINUM
Engineered to transfer light oils, automotive fluids and lubricants. Not suitable for pumping flammable or combustible liquids.
Applications
- Light Machining Oils
- Hydraulic Fluid
- Motor Oil (Up to 30 wt.)
- Anti-Freeze
- Lubricating Oil
Technical Specifications
- Package Includes: Motor, Pump Tube, Hose, Storage Bracket, Barrel Adapter and Hand Nozzle
- Motor Type: Open Drip Proof (IP44)
- Pump Tube Material: Aluminum, SS316, PTFE, Carbon Graphite
- Immersion Length: 39 in. (1000 mm) or 47 in. (1200 mm)
- Discharge Hose: PVC, 6 ft (1,8 m), 1 in. (25 mm) I.D.
- Hand Nozzle Material: Aluminum, Buna
- Maximum Flow Rate: 22 GPM (83 LPM) based on water
- Maximum Viscosity: 1500 cps (mPas)
- Maximum Temperature: 175 degrees F (80 degrees C)
- Shipping Weight: 23 lbs. (10,43 kg)
Variants & Pricing
| SKU | Details | Price | Stock |
|---|---|---|---|
| 9760-39 | 39 in. Aluminum Pump Tube - SP-280P Variable Speed 110V Motor | $2,459.21 | Special Order Item Lead time: 14 days |
| 9761-39 | 39 in. Aluminum Pump Tube - SP-280P Variable Speed 220V Motor | $2,503.90 | Special Order Item Lead time: 14 days |
| 9762-47 | 47 in. Aluminum Pump Tube - SP-280P Variable Speed 110V Motor | $2,477.84 | Special Order Item Lead time: 14 days |
| 9763-47 | 47 in. Aluminum Pump Tube - SP-280P Variable Speed 220V Motor | $2,579.63 | Special Order Item Lead time: 14 days |
Downloads
Nothing to download.
