Description

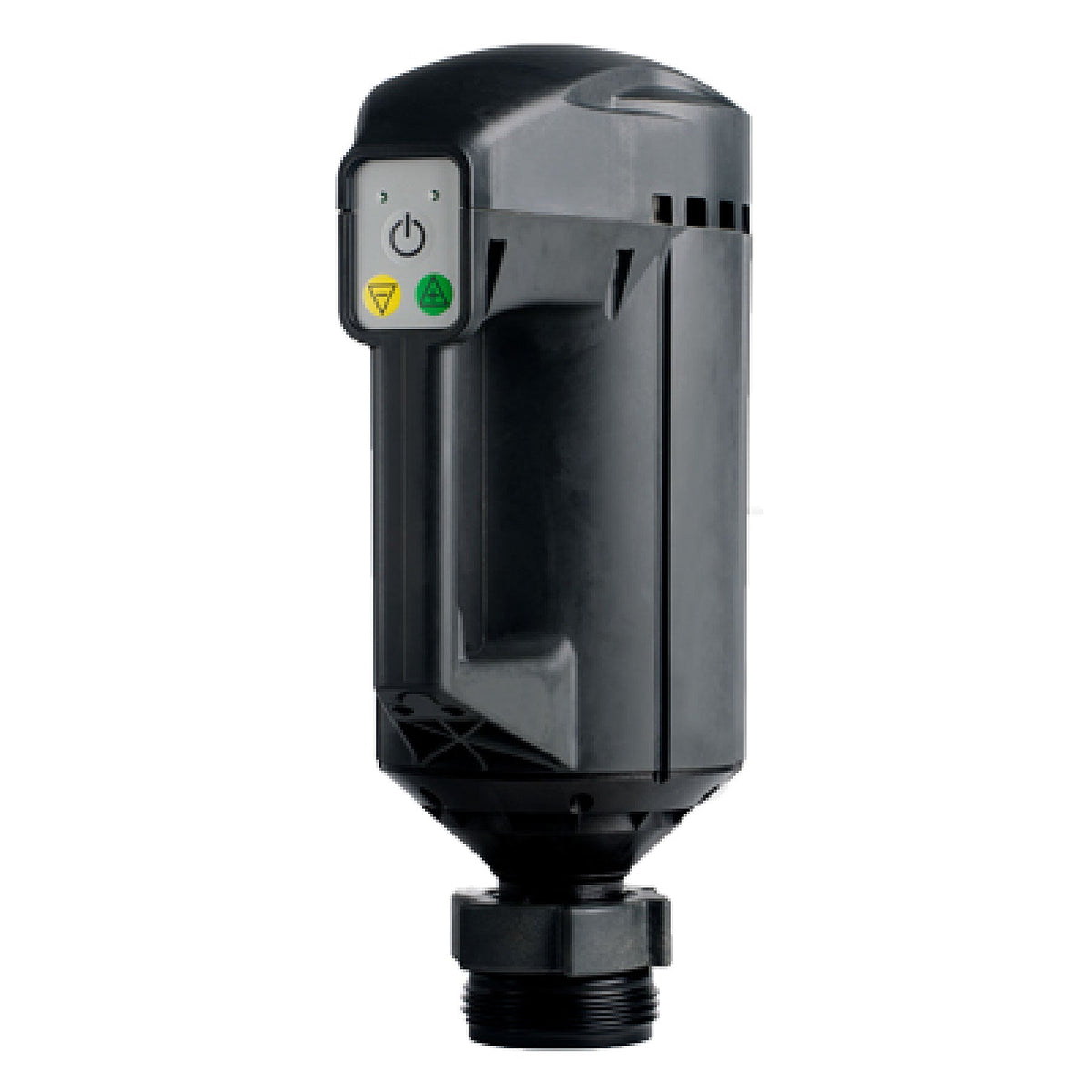

StandardÍs Explosion Proof Drum Pump is a safe solution for transferring highly flammable /combustible liquids and meets the stringent safety requirements of the Chemical Processing Industry.
Applications
- Alcohol
- Isopropyl Ether
- Gasoline
- Solvents
- Aqueous Ammonia
- Petroleum Products
- Xylene
- Toluene
Features
- CSA and ATEX Certification
- Light weight and portable
- Thermal overload protection
- Interchangeable with a variety of pump tubes
- Ergonomic Handle
Technical Specifications
|
Enclosure: |
Explosion Proof (IP 54) |
|
|
Power: |
||
|
PN: SP-410EX 230 Watt 110v / 1 / 50-60 hz |
||
|
PN: SP-420EX 600 Watt 230v / 1 / 50 -60 hz |
||
|
RPM: |
10,000 |
|
|
Full Load Amps: |
||
|
PN: SP-410EX 2.0 |
||
|
PN: SP-420EX 2.6 |
||
|
Power Cord: |
12 ft. (3,5 m) |
|
|
Weight (Actual): |
15 lbs (6,8 kg) |
|
|
Weight (Shipping): |
17 lbs (7,7 kg) |
|
|
Box Dimensions: |
20" x 10" x 10" (51 x 25 x 25 cm) |
Warning:
WARNING: Pumping of flammables or combustible liquids can generate a static electric discharge, causing fire or explosion resulting in injury or death. Read and understand operating instructions before starting this unit. Follow all federal, state and local safety codes including NFPA 30 - NFPA77. Prior to connecting to air supply, install bond and ground wires and check continuity of each wire. A meter reading of one ohm or less is required for safe liquid transfer. Use only metallic drum, receiving vessel and metallic pump (SP-SS) when pumping flammables. Air motors are not recognized under any current UnderwriterÍs Laboratory listing program. Consult a qualified engineer for suitability for use in a hazardous area or on flammables.Downloads
Nothing to download.
