Description

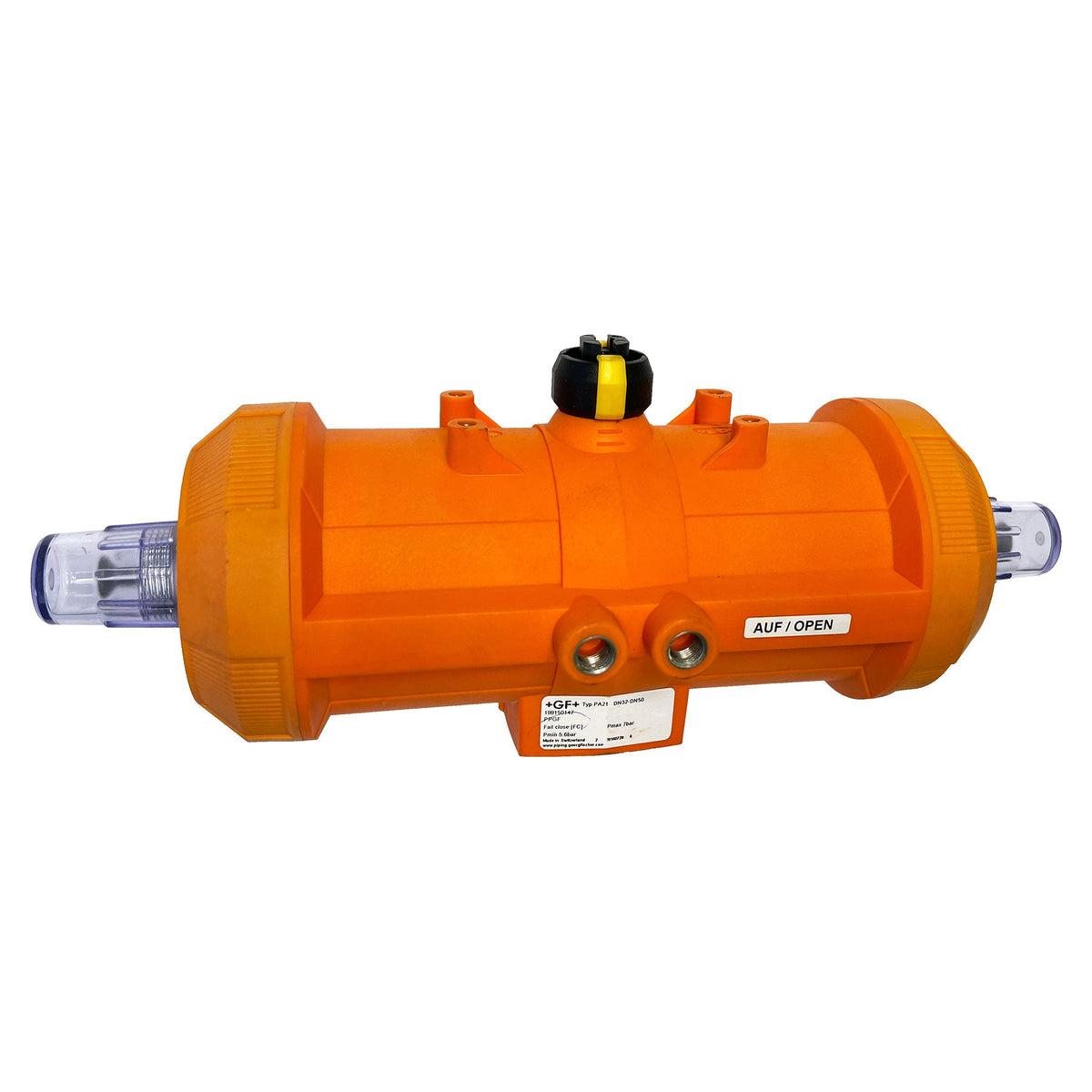

CLEARANCE ITEM: Type PA21 Pneumatic Actuator with Failsafe Closed for 1-1/4 to 2 in. Valves
Features:
- Actuator Housing: Glass-filled PP
- Control Media: Compressed air
- Pneumatic Connection: G1/8 in.
- Cycle Time: 1-2 sec
- Stroke: 90 degrees
- Action: FC, FO, DA
- Max DA Control Pressure: 101psi
- Max FC/FO Control Pressure: 65psi
- Position Indicator: Optical, integrated
- Top Mount: NAMUR compliant
- Base Mount: ISO 5211 compliant
- Stroke Limiter: Optional, 45 degrees
Note: Product images shown are for illustration purposes only and may not be an exact representation. To the best of our knowledge, all products are functioning properly when shipped.
